Hot Racing 100mm Internal Spring Air Shock (Green) (2)

Hot Racing 100mm Internal Spring Air Shocks are supplied as a pair for scale crawlers, comp crawlers, and custom builds. They feature CNC machined aluminum bodies, green and black anodized aluminum caps, internal springs, and air damping.

Features

• Green anodized precision machined 7mm stainless steel shock shaft
• Black anodized CNC machined aluminum upper shock cap with O-ring seal
• Green anodized CNC machined aluminum lower shock cap with shock shaft guide
• Double O-ring lower shaft seal
• Internal springs with three rates: gold (soft), black (medium), and silver (stiff)
• Aluminum components are anodized for durability and corrosion resistance

Specifications

• Extended center to center length: 100mm (3.9 inch)
• Compressed center to center length: 68mm (2.7 inch)
• Overall length: 108mm (4.3 inch)
• Body diameter: 13mm (0.5 inch)
• Shaft diameter: 7mm (0.3 inch)

Note: Team Associated Green Slime ASC1105 is recommended on the lower O-ring seals to assist sealing and increase smoothness.

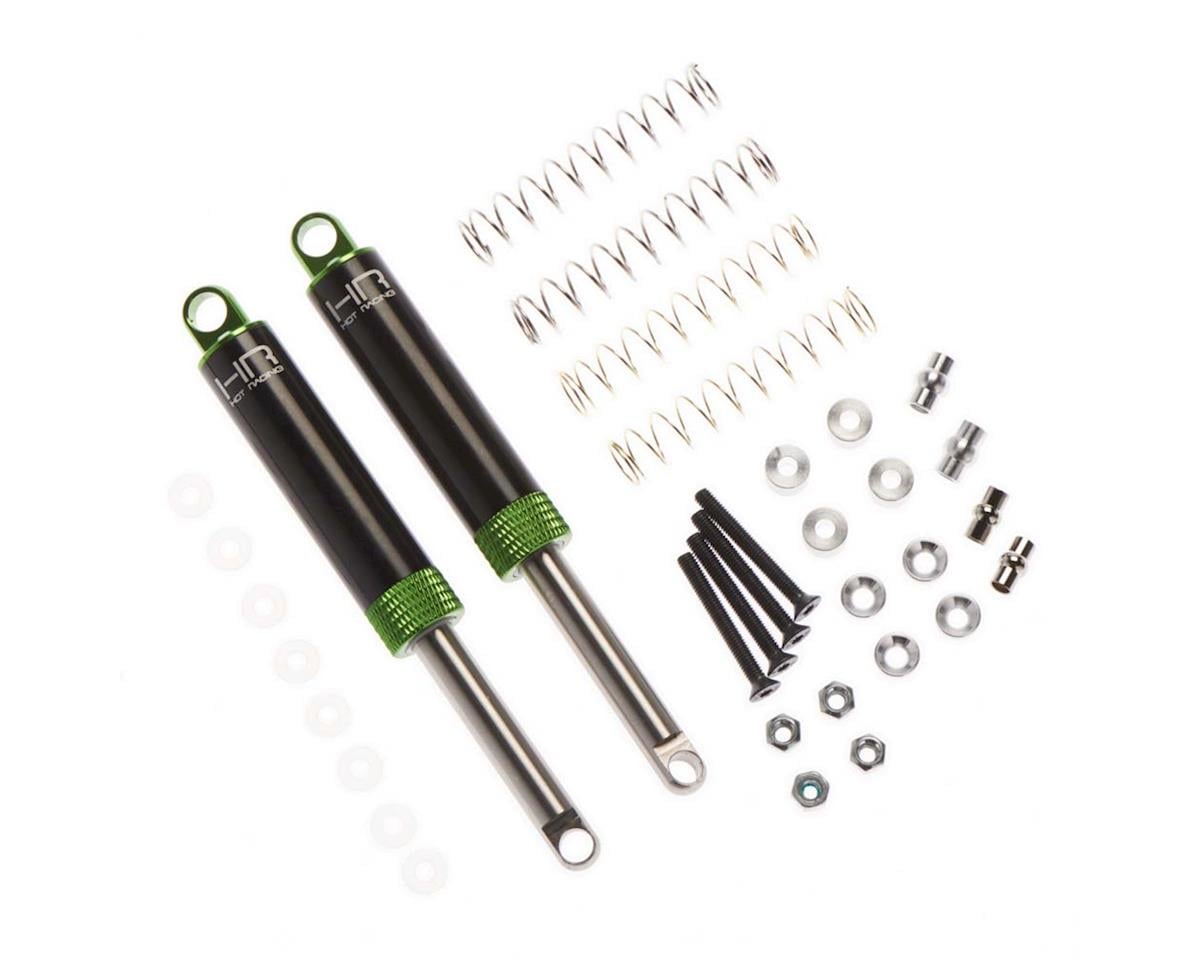

Includes

• (2) assembled shocks
• (2) gold (soft) springs
• (2) black (medium) springs
• (2) silver (stiff) springs
• (2) 4.8mm ball mounts
• (2) 5.8mm ball mounts
• (4) 5x7mm offset spacers
• (4) 3mm countersunk washers
• (4) 3x25mm flat head cap screws
• (8) 3mm O-rings
• (4) lock nuts
