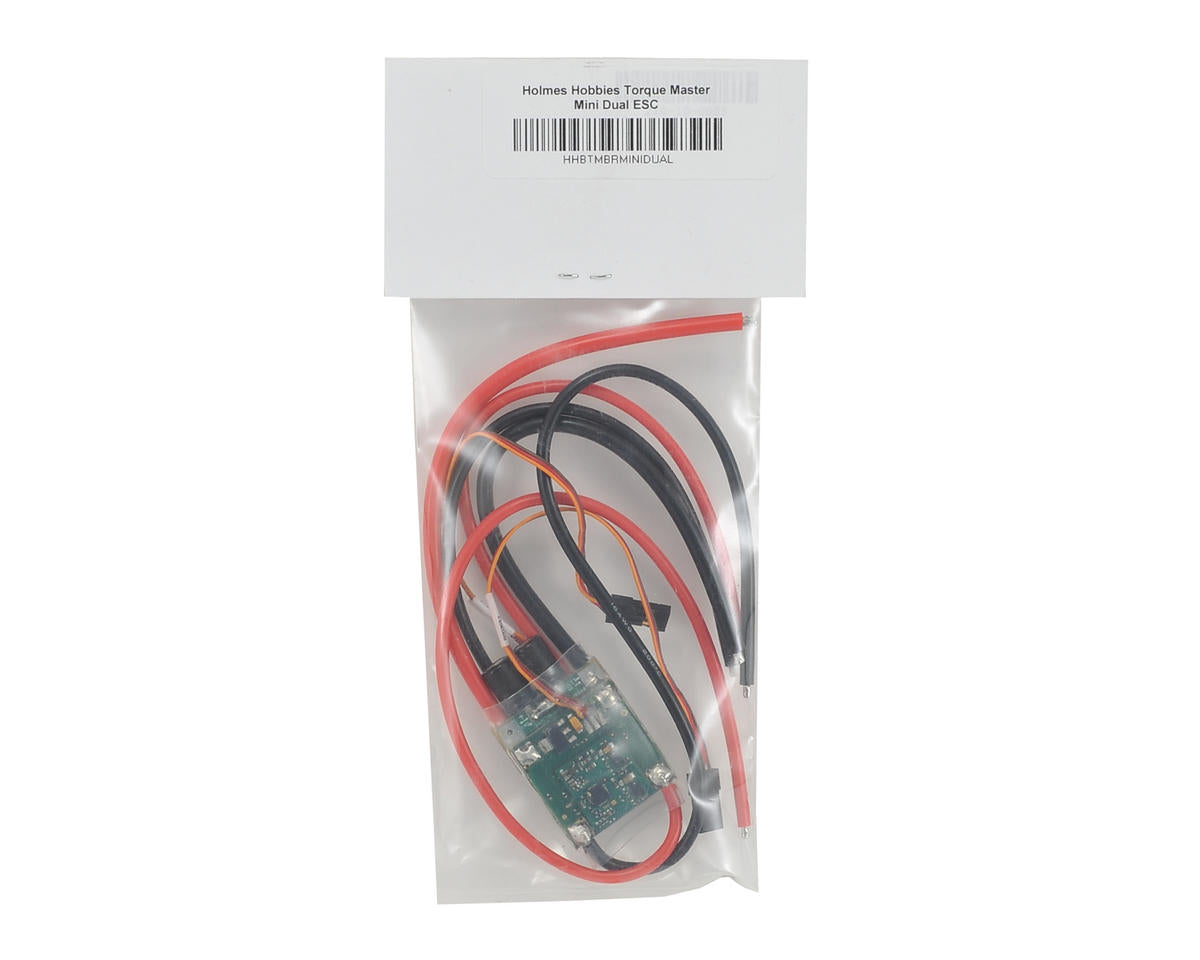

Holmes Hobbies ToruqeMaster BR Mini Dual ESC

The Holmes Hobbies ToruqeMaster BR Mini Dual ESC combines two brushed motor ESCs in one compact package for dual motor comp crawler rigs, scale builds, robotics, servo motor, and winch applications. It is designed for low-speed control and high torque density, with settings suited to competitive RC rock crawling and off-road truck use.

Features

• Auto lipo LVC
• Full drag brake
• Instant reverse and 100% reverse throttle settings
• Reverse and brake adjustment
• Throttle and brake curve adjustment
• Regenerative Drag Brake
• Active Hold Brake (The Holmes Hold!)
• Quiet mode
• Stick and Castle Link programming compatible
• Brushed motor use only
• 1 year manufacturers warranty

Specifications

• 6v to 25v input
• 30a continuous, 80a burst
• 6v 0.5amp linear BEC @ 7.4v input
• Recommended for 30a or less (per channel) robotic use
• Built with 6" of 14g battery wire, 8" of 16g front exiting wire, and 10" of 16g rear exiting wire

Installation Notes

No connectors are installed. The pre-tinned wires allow you to install the motor and battery connectors you prefer. An external BEC is suggested for all installations. Because this is not a stock replacement ESC recommended for a specific vehicle, you will need to find the system limits for your vehicle.
