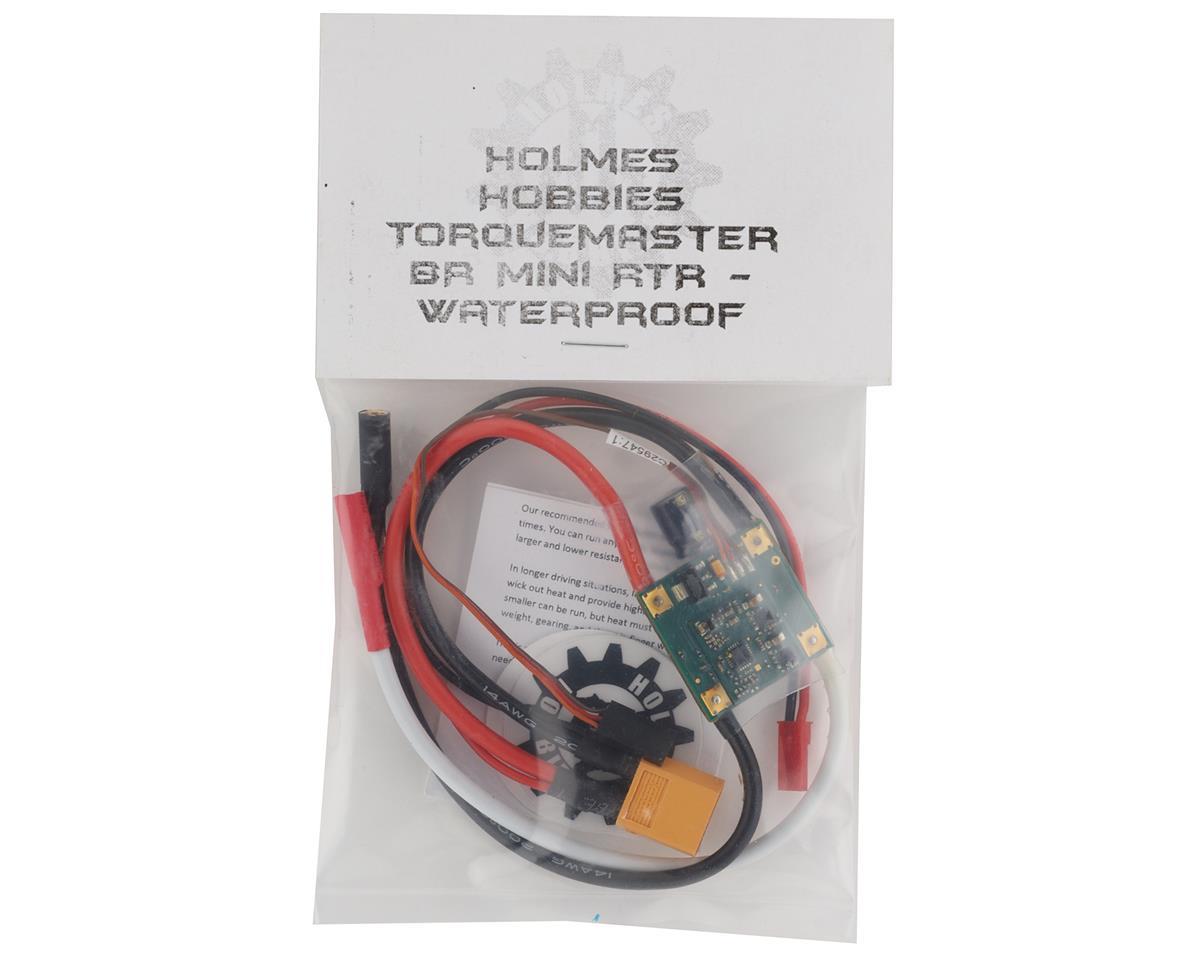

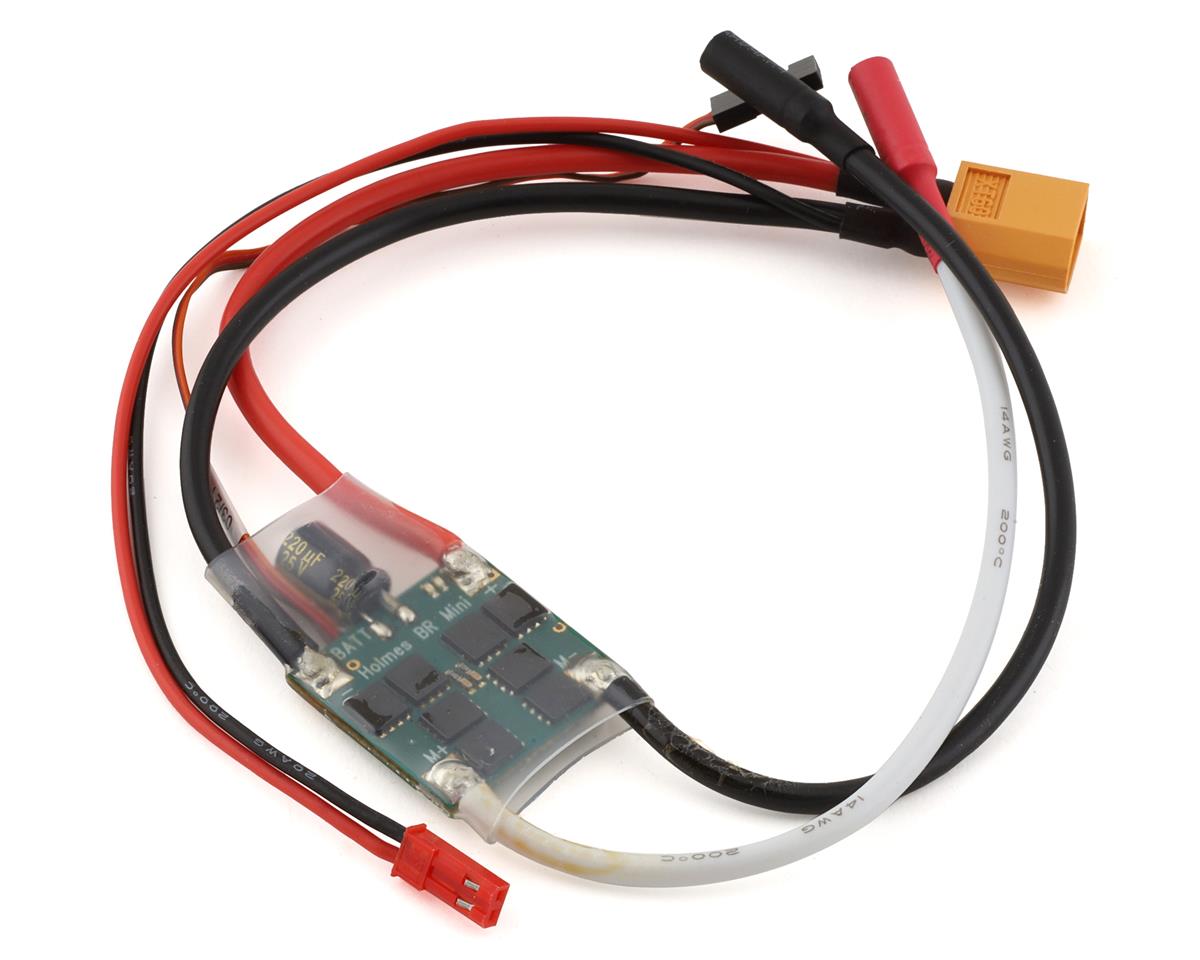

Holmes Hobbies TorqueMaster BR Mini Brushed ESC

The Holmes Hobbies TorqueMaster BR Mini Brushed ESC is a compact, competition-focused ESC designed for low-speed control and high torque density. It is suited for weight-conscious comp crawler rigs, scale builds, robotics, servo motor, and winch use.

Features

• Auto LiPo LVC
• Full drag brake
• Instant reverse
• 100% reverse throttle settings
• Reverse and brake adjustment
• Throttle and brake curve adjustment
• Regenerative drag brake
• Active Hold Brake, also called The Holmes Hold
• Quiet mode
• Stick and Castle Link programming compatible
• 1 year manufacturer's warranty

Specifications

• Voltage: 2S-6S (6-25V DC input)
• BEC: 6V @ 5A
• Continuous Current: 30A
• Burst Current: 80A
• Dimensions: 46x34x20mm
• Weight: 38g (with battery leads)
• Motor Limit: Brushed only, no 540-motor limit

Connections and Installation Notes

• XT60 battery connector
• 4mm motor bullet connectors
• JST lead attaches from the back of the XT60 for direct power
• External BEC suggested for all installations
• Recommended for competitive RC rock crawling and off-road truck environments, and 30a or less per channel for robotic use
• This is not a stock replacement ESC recommended for a specific vehicle; find the system limits for your vehicle before use
