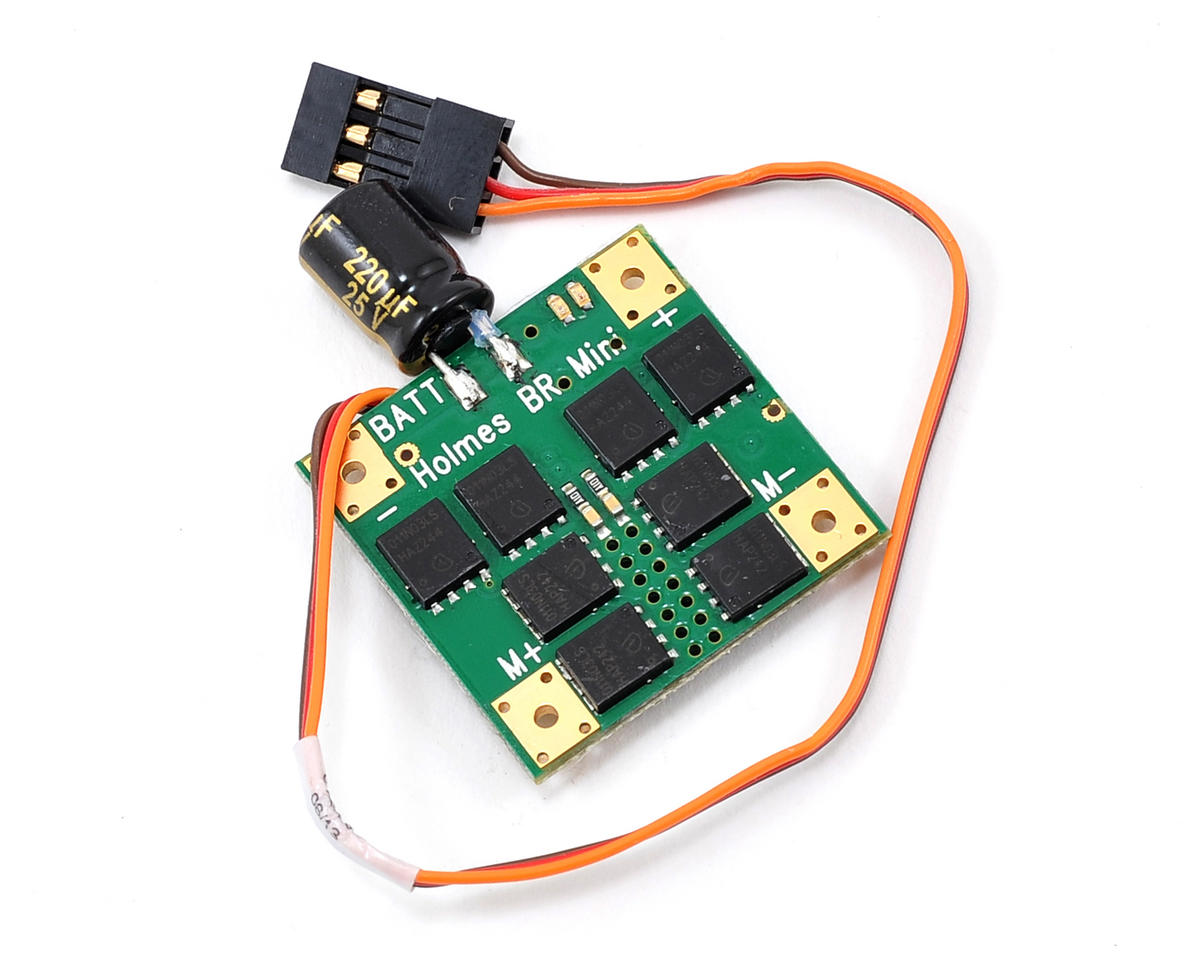

Holmes Hobbies TorqueMaster BR Mini Brushed ESC

The Holmes Hobbies TorqueMaster BR Mini Brushed ESC is a compact speed controller for competitive rock crawling and 30A or less robotic use. Its smaller footprint, lack of case and lack of heatsink make it suitable for weight-conscious crawlers, off-road trucks, robotics, servomotor and winch applications.

Features

• Auto LiPo LVC
• Full drag brake
• Instant reverse
• 100% reverse throttle settings
• Reverse and brake adjustment
• Throttle and brake curve adjustment
• Regenerative drag brake
• Active Hold Brake (The Holmes Hold!)
• Quiet Mode
• 1 year manufacturer warranty
• Stick and Castle Link programming compatible

Specifications

• Input: 6V to 25V (external BEC suggested for all installations)
• Continuous/Burst Amps: 30A continuous, 80A burst
• BEC: 6V 0.5amp Linear BEC @ 7.4V input
• Dimensions: 28x28x6mm PCB
• Weight: 8 grams (without wires)
• Motor Type: Brushed only

This is a high performance product, not a stock replacement part intended for a specific vehicle. System limits must be determined for each installation.
