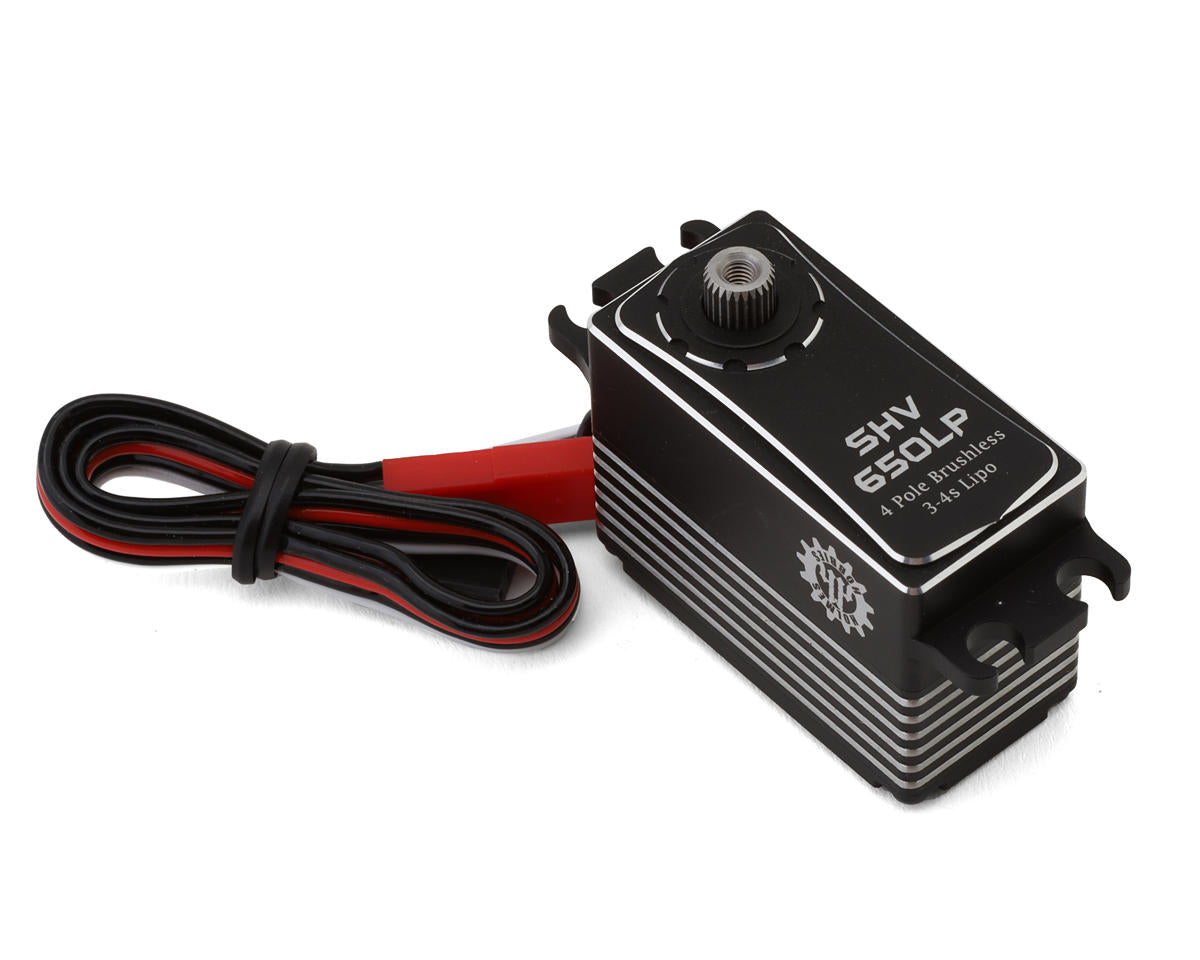

Holmes Hobbies SHV650LP HV Low Profile Direct Power Crawler Brushless Servo

The Holmes Hobbies SHV650LP is a low-profile direct-power brushless servo designed for 1/10 rock crawlers. Its compact format is suited to most 1/10 rock crawlers, including behind-the-axle servo layouts, while the high-voltage design supports direct power from 6-16.8V.

Features

• Hi voltage capable of up to 16.8V
• High torque brushless motor
• Waterproofed internals
• All steel machined gears
• Integrated Over-Voltage Snubber
• JST Direct Power plug
• All CNC-machined aluminum case with side fins to maximize heat dissipation
• Perfect fit for most 1/10 rock crawlers

Specifications

• Application: 1/10 Rock Crawlers
• Operating Voltage: 6-16.8V
• Speed: @12.6V: 0.10sec/60°; @14.4V: 0.09sec/60°; @16.8V: 0.08sec/60°
• Torque: @12.6V: 700oz-in (kg-cm); @14.4V: 800oz-in (kg-cm); @16.8V: 900oz-in (kg-cm)
• Motor: Brushless
• Dimensions (LxWxH): 1.60x.79x1.16in. (40.8x20.2x29.5mm)
• Weight: 66g (2.32oz)
• Operating Spline: 25T

Includes

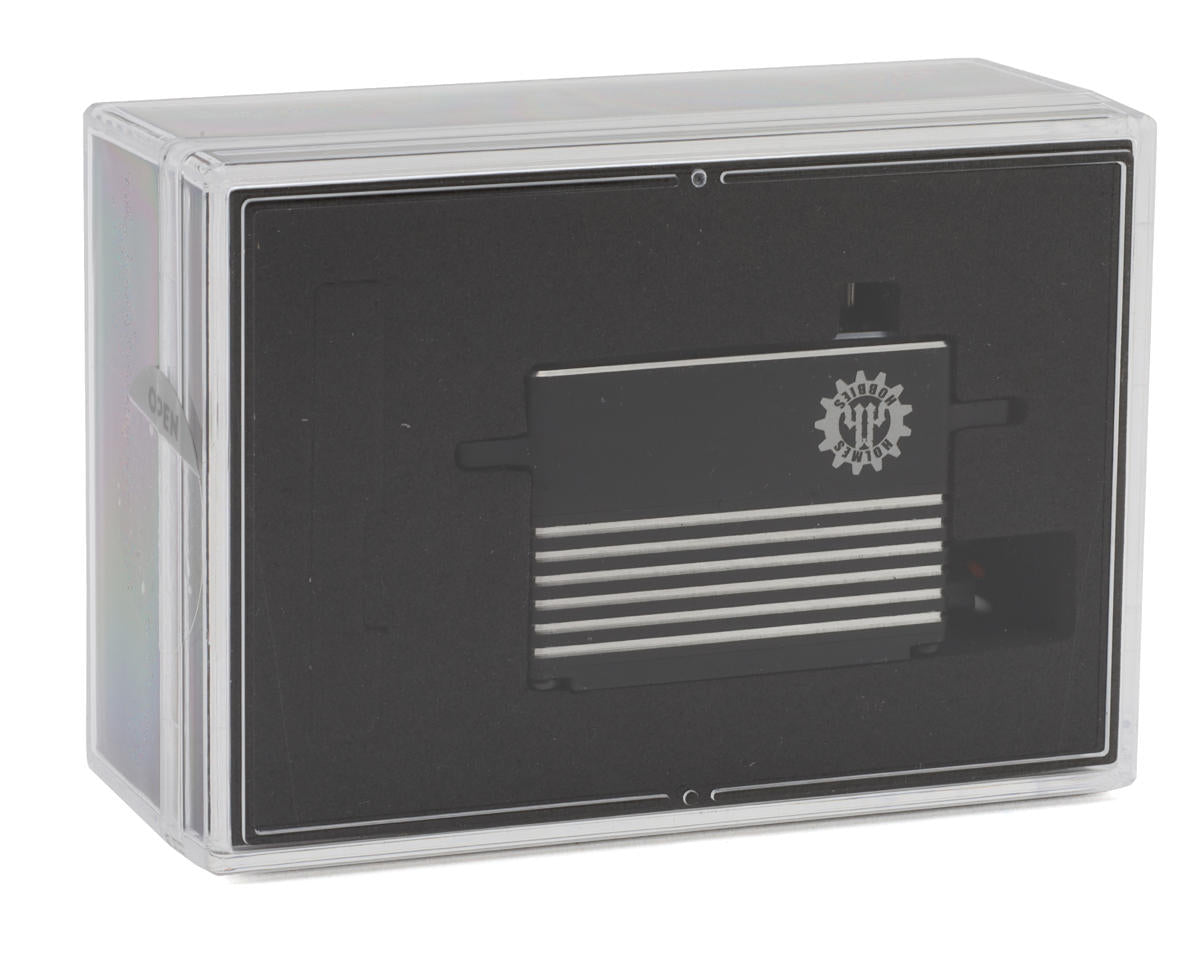

• (1) SHV650LP HV Low Profile Direct Power Crawler Brushless Servo

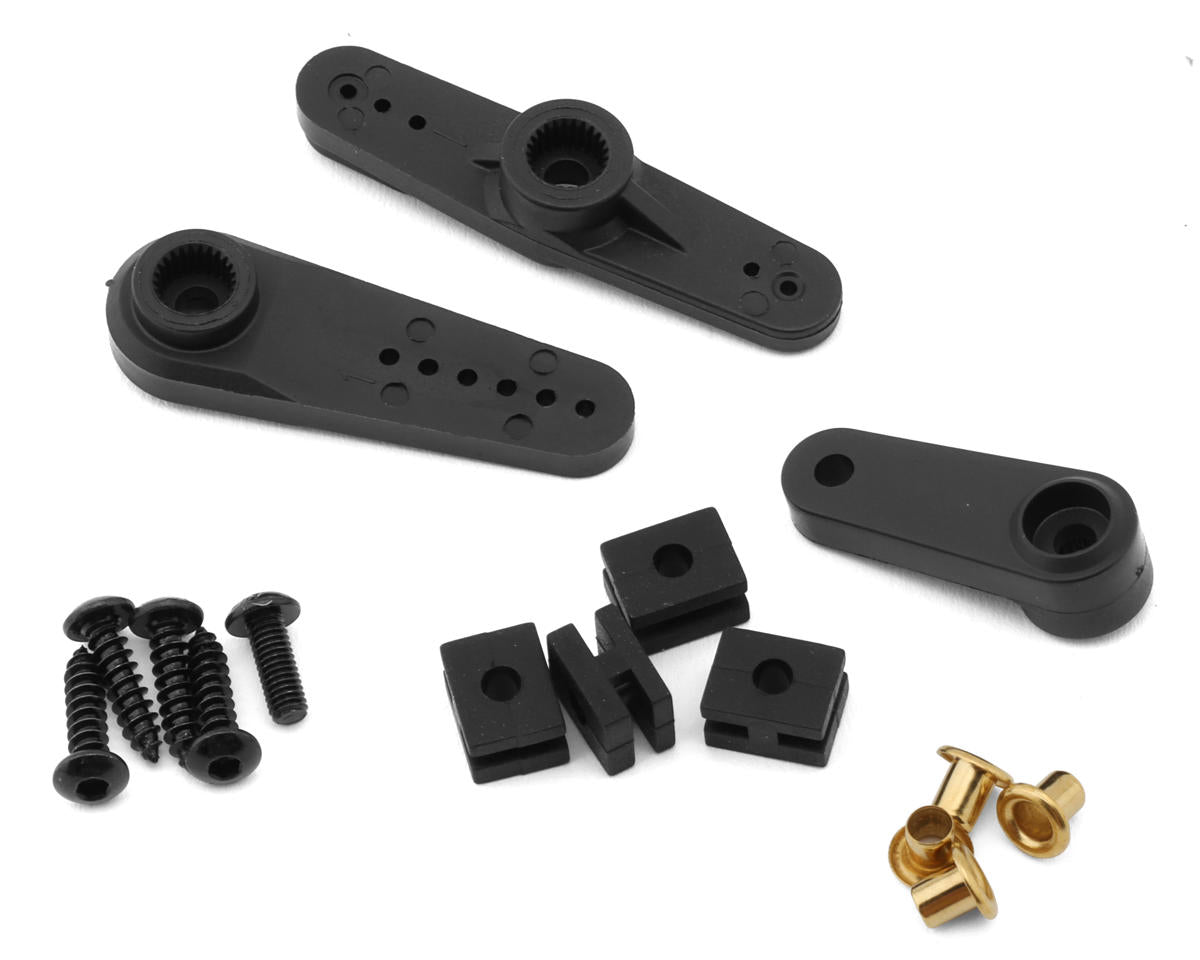

• Composite Servo Horns and Hardware
