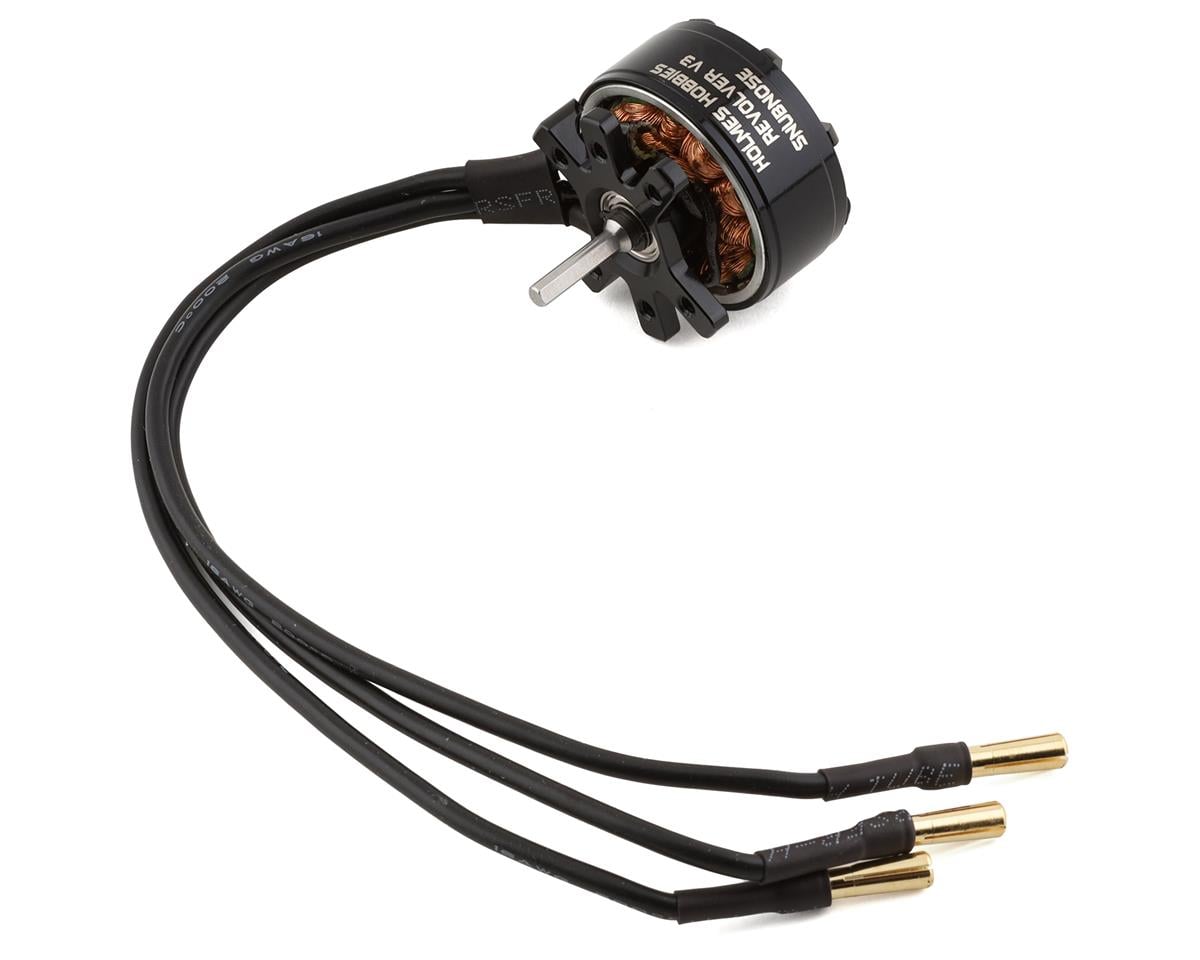

Holmes Hobbies Revolver V3 540 Sensorless Snubnose Brushless Outrunner Motor

The Holmes Hobbies Revolver V3 540 Sensorless Snubnose Brushless Outrunner Motor delivers high torque and low-speed control in a compact, lightweight design for 1:10 scale trail and scale rigs and competitive RC rock crawling. This 2040kV motor features updated V3 magnetics, more mounting positions, a beefier wire retainer, and thicker back iron.

Features

• Exclusive Holmes magnetics for smooth startup and torque
• Unique V3 housing with reduced volume and weight compared to simple rebranded airplane motors
• Magnetic retaining system helps reduce the risk of thrown magnets
• Fits standard 540 mounting patterns
• Higher torque than 540 brushed motors in a small, lightweight package
• 1/8” shaft fits common R/C pinions
• 200mm 14ga silicone motor leads; bullets are not included

Specifications

• Type: Brushless DC Outrunner Motor
• Stator: 10 pole 12 slot stator
• Input Voltage: 2-4S LiPo
• Shaft: 1/8” D shaft output (standard 540)
• Mounting Pattern: 25mm for M3 screws (standard 540)
• Weight: 94g with wires
• Can Size: 35.56mm diameter x 27.4mm long
• Stator Size: 28x10mm

Applications

• 1:10 scale trail and scale rigs, including SCX10, SCX10.2, SCX10.3, Wraith 1.9, Enduro, TRX4 Sport, and TrailFinder 2
• Competitive RC rock crawling, including RECON G6, SORRCA, and WRCCA
• Educational, recon, or battle robots

Note: Do not insert screws more than 3mm into the mounting holes to prevent motor damage. The 540 Snubnose is not recommended for rock racers or 2-speed vehicles such as the TRX4, Wraith, and Bomber.
