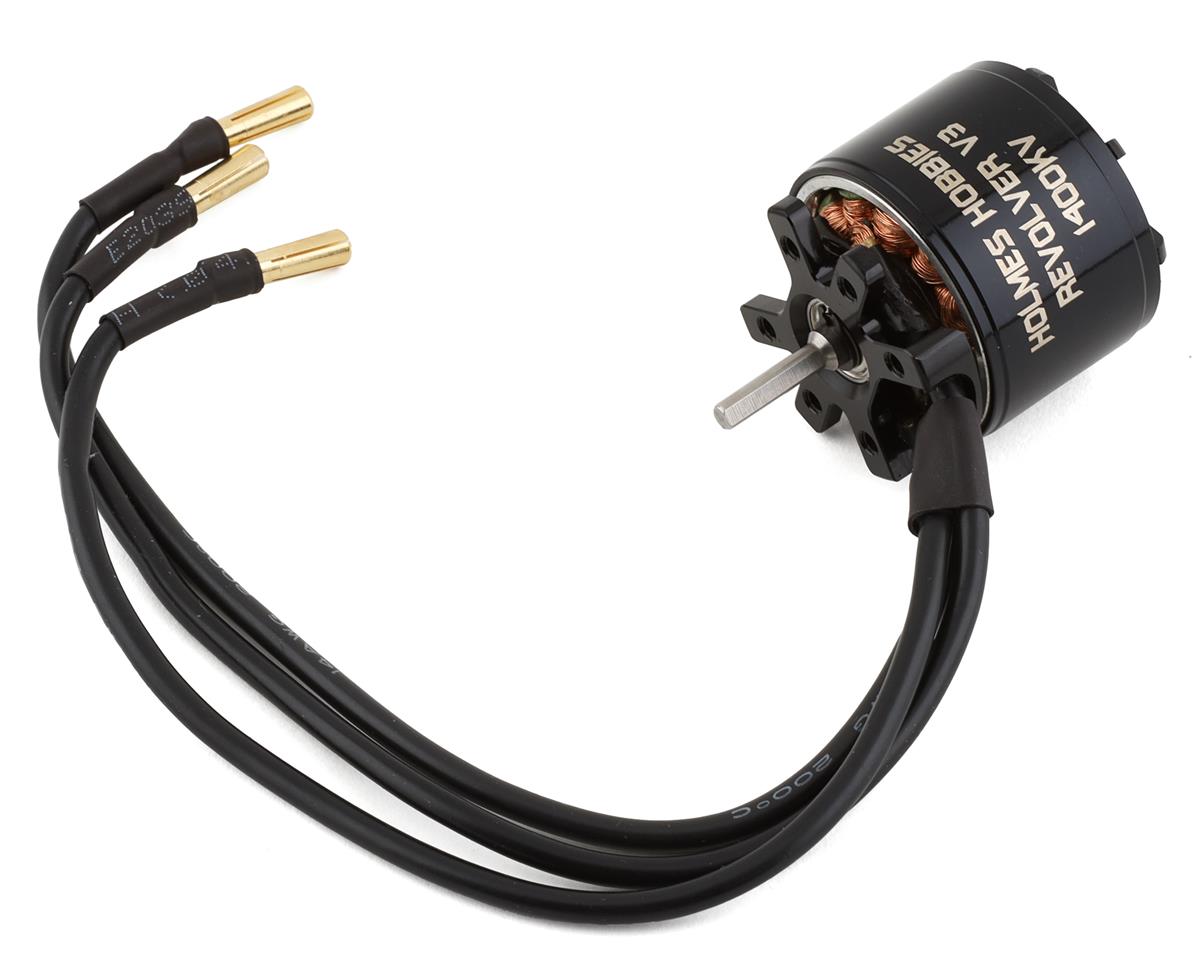

Holmes Hobbies Revolver V3 540 Sensorless Brushless Outrunner Motor (1400kV)

The Holmes Hobbies Revolver V3 540 Sensorless Brushless Outrunner Motor delivers a compact, lightweight motor option with torque-focused performance for 1:10 scale trail and scale rigs, competitive RC rock crawling, recon, educational, and battle robots. The 1400kV motor features Holmes magnetics for smooth startup, improved rpm lock and anti-stall characteristics, plus a V3 housing with additional mounting positions, a beefier wire retainer, and thicker back iron.

Features

• Sensorless brushless outrunner motor with exclusive Holmes magnetics
• V3 housing with smaller volume and weight compared to simple rebranded airplane motors
• Magnetic retaining system helps reduce the risk of thrown magnets
• Fits standard 540 mounting patterns
• 1/8" shaft fits common R/C pinions
• 200mm 14ga silicon motor leads
• Recommended for rock racers and 2 speed vehicles, including the TRX4, Wraith, and Bomber

Specifications

• Type: Brushless DC Outrunner Motor
• kV: 1400kV
• Stator: 14 pole 12 slot stator
• Input Voltage: 2-4S LiPo
• Shaft: 1/8" D shaft output, standard 540
• Mounting Pattern: 25mm for M3 screws, standard 540
• Weight: 150g with wires
• Can Size: 35.56mm diameter x 37.5mm long
• Stator Size: 28x20mm

Installation note: Do not insert screws more than 3mm into the mounting holes to help prevent motor damage.

Includes

• (1) Revolver V3 540 Sensorless Brushless Outrunner Motor
• (3) Bullet Connectors
