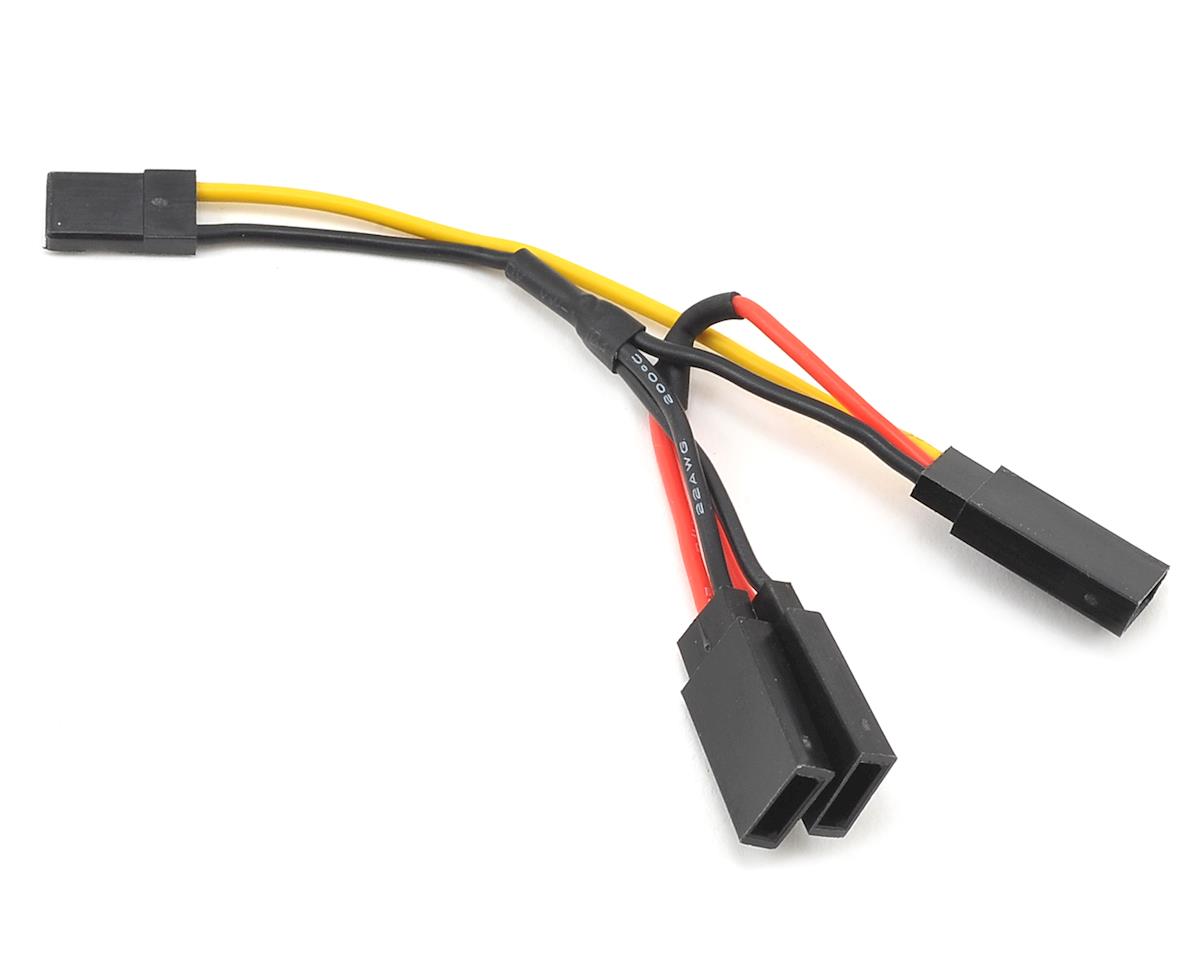

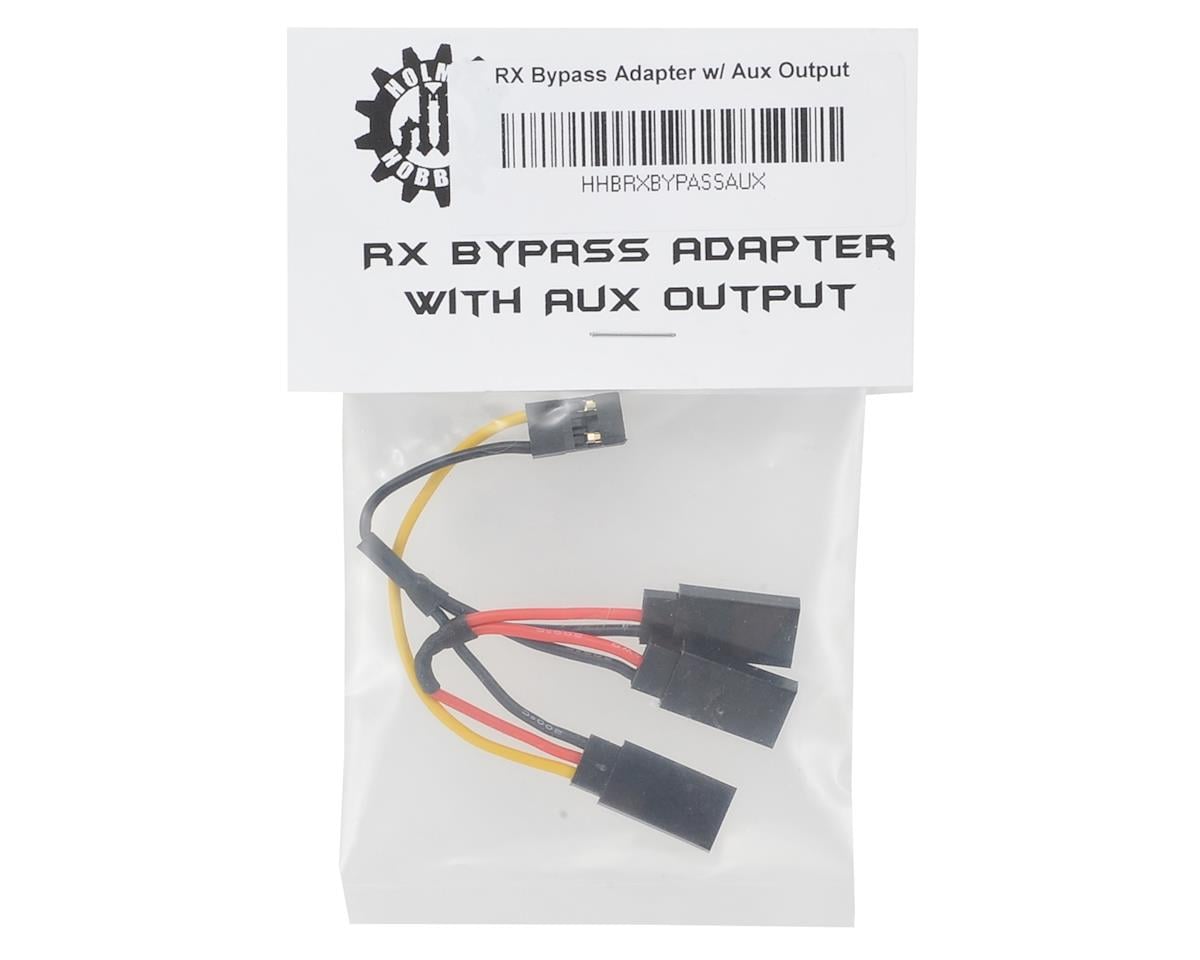

Holmes Hobbies Receiver Bypass Adapter w/Auxiliary Output

The Holmes Hobbies Receiver Bypass Adapter with Auxiliary Output lets you use an external BEC for servo power without disabling your ESC's internal BEC.

Features

• Designed for crawlers running over 300 ounce/inch servos.
• Latest model with thicker 22 gauge wire for a lower resistance connection that can deliver more power.
• Provides a dual ground path between the receiver and external BEC to help prevent floating ground issues.
• Includes an auxiliary + / - output for accessories that do not require a signal, such as lights.

Connection Layout

• Connect the servo to the + / - / signal plug.
• Connect the BEC to the + / - plug.
• Connect the signal / - connector to the servo receiver channel.
