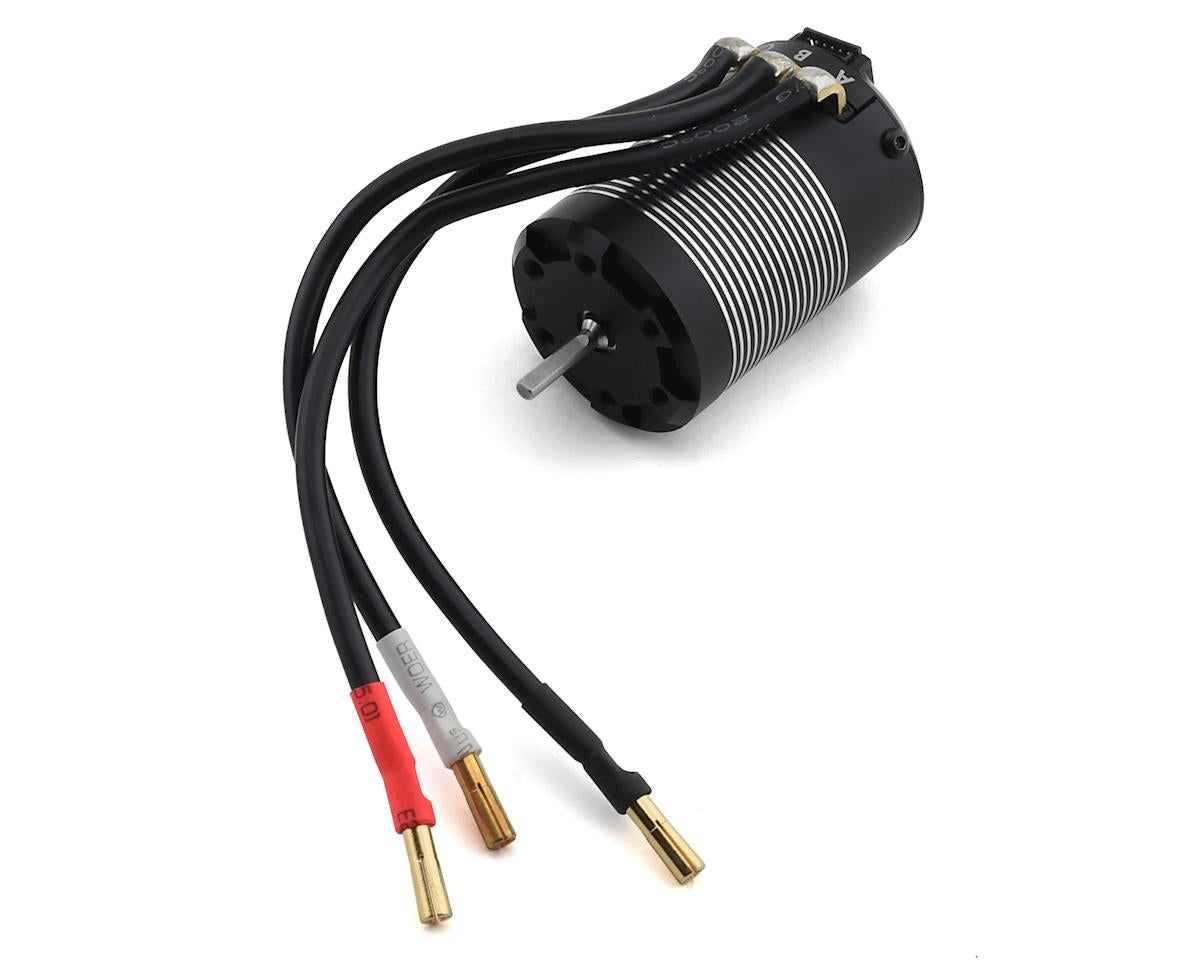

Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor (3500kV)

The Holmes Hobbies Puller Pro V2 540 Waterproof Sensored Crawler Motor delivers controlled operation for rock crawlers and rock racers using 540 or 550 motors. Its 3500kV design is intended for fast, large, heavy, and two-speed rock crawlers, with a strong brake and smooth operation at low speeds over rocks and rough terrain.

Features

• Four-pole rotor measuring 18mm diameter x 25mm length
• Twelve-slot stator
• 13g phase wires with 4mm bullets installed
• Oversized bearings
• Sensored design with adjustable timing
• Waterproof sensor board
• Improved drag brake and sensor accuracy compared with Version One
• Improved performance in reverse rotation rigs
• Beefier solder tabs for lower resistance
• Sideways-oriented sensor port for tight installs

Specifications

• Motor Size: Standard 540
• Mounting Pattern: 25mm
• Mounting Screws: M3
• Shaft: 3.175mm diameter
• Dimensions: 36mm length x 53mm
• Weight: 210g (7.4oz) w/ wires
• RPM Max: 50,000
