Holmes Hobbies HV150 High Torque Metal Gear Micro Crawler Brushless Servo (HV)

The Holmes Hobbies HV150 is a high-torque metal gear micro crawler brushless servo designed for mini and micro scale R/C rock crawlers and shifting applications. It features a brushless motor, waterproofed internals, all steel machined gears, and an all-aluminum case with side fins to maximize heat dissipation.

Features

• Hi voltage capable of up to 8.4V
• High torque brushless motor
• Waterproofed internals
• All steel machined gears
• Rigid aluminum servo horn
• All-aluminum case with side fins to maximize heat dissipation
• Perfect fit for most micro crawlers and shifting applications

Specifications

• Speed: @6.0V: 0.08sec/60°; @7.4V: 0.07sec/60°; @8.4V: 0.06sec/60°
• Torque: @6.0V: 106oz-in (7.6kg-cm); @7.4V: 167oz-in (12.02kg-cm); @8.4V: 174oz-in (12.5kg-cm)
• Motor: Brushless
• Operating Voltage: 4.8V-8.4V
• Dimensions (LxWxH): 23x12x27.5mm
• Weight: 24g (0.84oz)
• Operating Spline: 25T

Includes

• (1) HV150 High Torque Metal Gear Micro Crawler Brushless Servo

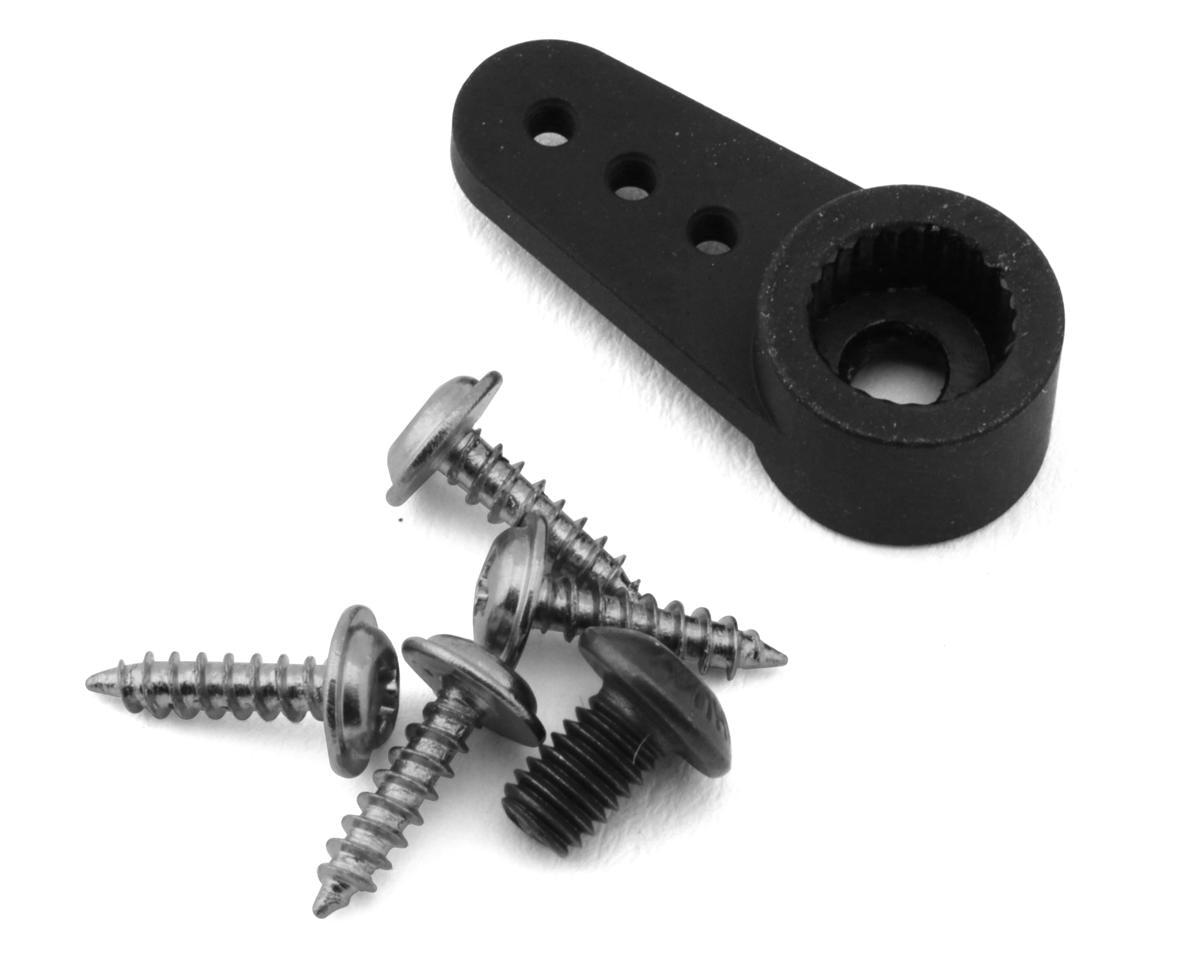

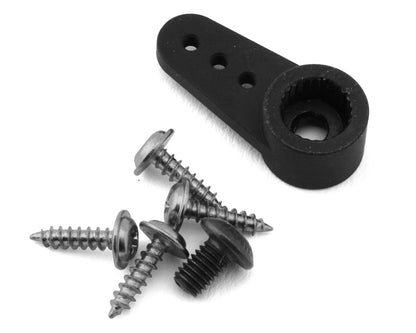

• (1) (25T) Aluminum Micro Servo Horn and Mounting Hardware
• (2) Holmes Hobbies Logo Decal

Depending on the vehicle, an aftermarket servo horn may be needed. A BEC with 5 amp rating or higher is recommended.
