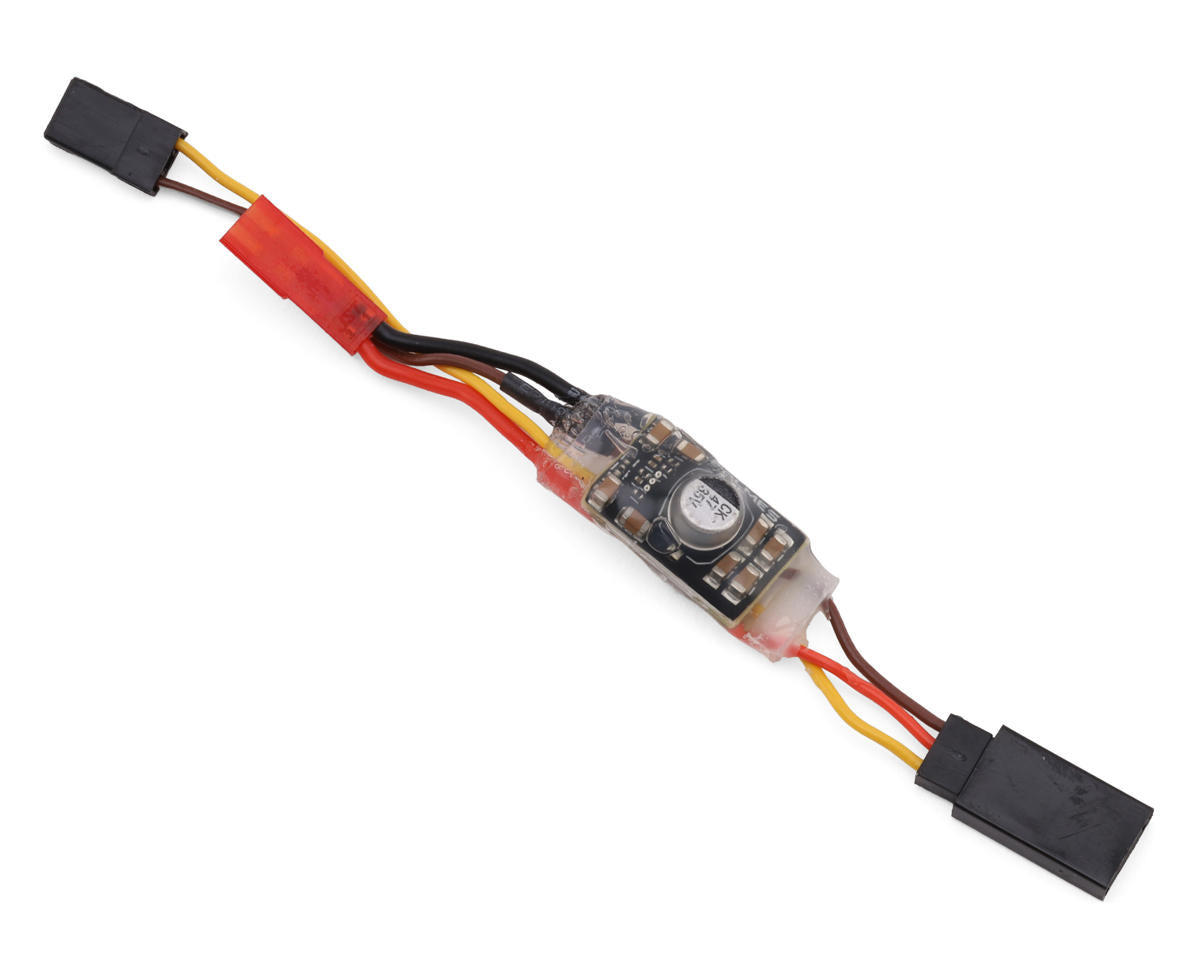

Holmes Hobbies Holmes 8.4V 20A BEC Team Bypass

The Holmes Hobbies 8.4V 20A BEC Team Bypass provides dedicated power directly to one servo without supplying power to the receiver. It delivers 8.4V output with 12A continuous current and 20A burst current, supporting 2-6S (7.4-22.2V) LiPo input.

With ultra-fast 4MHz switching, a fully waterproof design, and plug-and-play installation requiring no soldering, this BEC integrates with ESC-powered systems while keeping the receiver separate from the servo power supply.

Features

• 8.4V output for high-performance servos
• 12A continuous current and 20A burst current
• Supports 2-6S (7.4-22.2V) LiPo input
• Team Bypass powers one servo directly only
• Does not supply power to the receiver
• Ultra-fast 4MHz switching
• Fully waterproof
• Plug-and-play setup with no soldering needed

Specifications

• Input Voltage: 2-6S (7.4-22.2V) LiPo
• Output Voltage: 8.4V
• Continuous Current: 12A
• Burst Current: 20A
• Dimensions: 1.18x0.55x0.51in (30x14x13mm)
• Weight: 0.28oz (8g)

Includes

• (1) Holmes 8.4V 20A BEC Team Bypass
