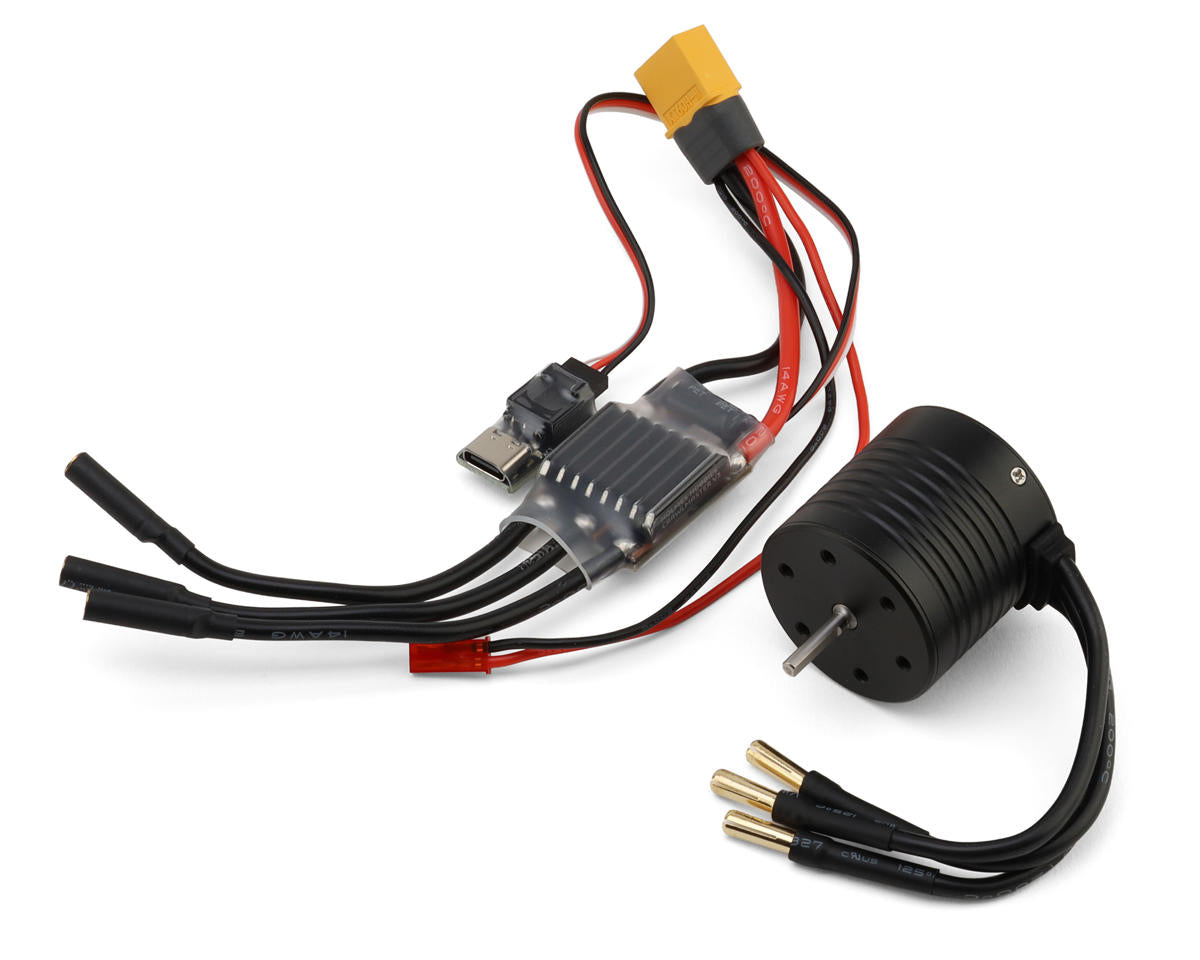

Holmes Hobbies Crawlmaster V3 ESC/Motor Rock Crawling 540 Stubby 10 Pole

The Holmes Hobbies Crawlmaster V3 ESC/Motor combo pairs a Crawlmaster V3 ESC with a Crawlmaster V2 540 Stubby 2300Kv brushless sensorless motor for 1/10-1/12 crawler applications. Its compact 540 Stubby design, 32 bit ESC processing, sinewave startup technology, and high-torque 10 pole motor support smooth control for rock crawling setups.

Features

• 32 bit ESC processing
• Sinewave startup technology
• Ultra smooth throttle response
• High torque 10 pole motor
• Compact stubby 540 design
• Lightweight combined system
• Silent motor operation
• Strong drag brake performance
• Plug and play connectors
• Water resistant ESC

ESC Specifications

• Suggested Application: 1/10 Crawler
• Motor Type: Brushless Sensorless
• Input Voltage: 2-4S (7.4-14.8V) LiPo
• Continuous Current: 25
• Burst Current: 40
• Dimensions (LxWxH): in (39x26x11mm)
• Weight: 5.15oz (146g)
• BEC Voltage: 7.4V
• BEC Continuous Current: 3A
• BEC Peak Current: -
• Motor Connector: 4mm
• Battery Connector: XT60
• Motor Wire: -
• Battery Wire: -
• Throttle Wire: -
• Programming: USB

Motor Specifications

• Suggested Application: 1/10-1/12 Crawler
• Size: 540 Stubby (2300Kv)
• Type: Brushless Sensorless
• Voltage: 2-4S (7.4-14.8V) LiPo
• Adjustable Timing: -
• Watts: -
• Connector: 4mm Bullet
• Dimensions (LxW): 1.38x1.42in (35x36mm)
• Shaft Length: 0.59in (15mm)
• Shaft Diameter: 1/8in (3.175mm)

Includes

• (1) Crawlmaster V3 ESC
• (1) Crawlmaster V2 540 Stubby 2300Kv Motor
• (1) USB Programmer
