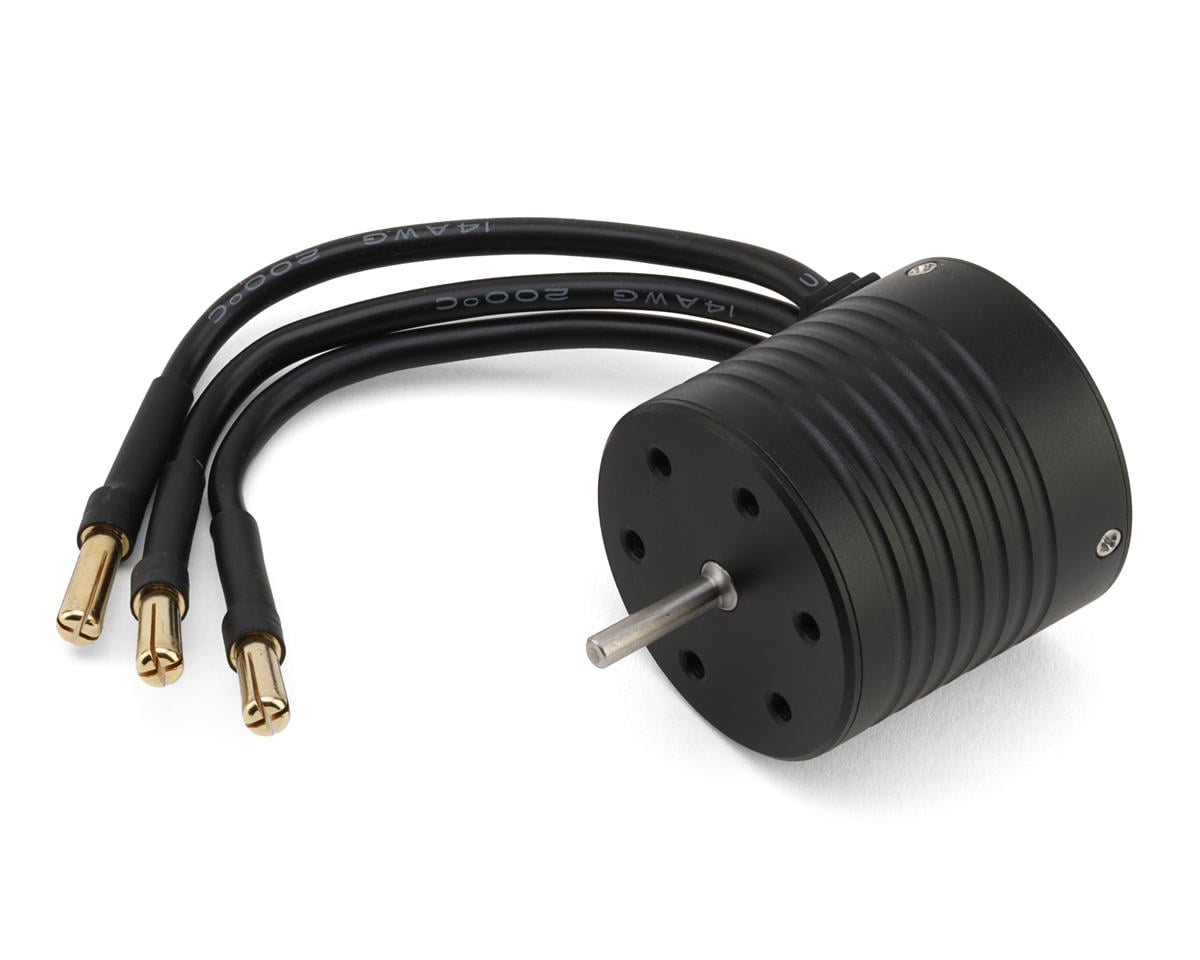

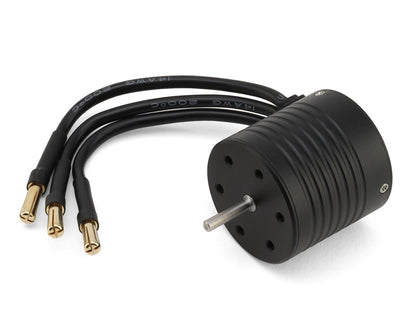

Holmes Hobbies Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor

The Holmes Hobbies Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor combines a compact format with a high-torque, large-diameter rotor for crawler applications. Its 10 pole, 12 slot magnetic design supports smooth startup and low-speed control, while the stubby 540 size suits tight chassis setups.

The motor features a waterproof sealed design, oversized ball bearings, ultra low no-load current, and 4mm gold-plated bullet connectors. It is a sensorless brushless motor rated for 2-4S LiPo input voltage.

Features

• 10 pole 12 slot magnetic design
• High torque large diameter rotor
• Compact stubby 540 size
• Smooth startup performance
• Ultra low no load current
• Oversized ball bearings
• Waterproof sealed design
• 4mm gold plated connectors
• Efficient power delivery

Specifications

• Application: 1/10-1/12 Crawler
• Type: Sensorless Brushless
• Size: 540 Stubby (1800Kv)
• Input Voltage: 2-4S LiPo
• Connectors: 4mm Bullet
• Length: 1.38in (35mm)
• Diameter: 1.42in (36mm)
• Shaft Length: 0.6in (15mm)
• Shaft Diameter: 1/8in (3.17mm)
• Weight: 5.15oz (146g)

Includes

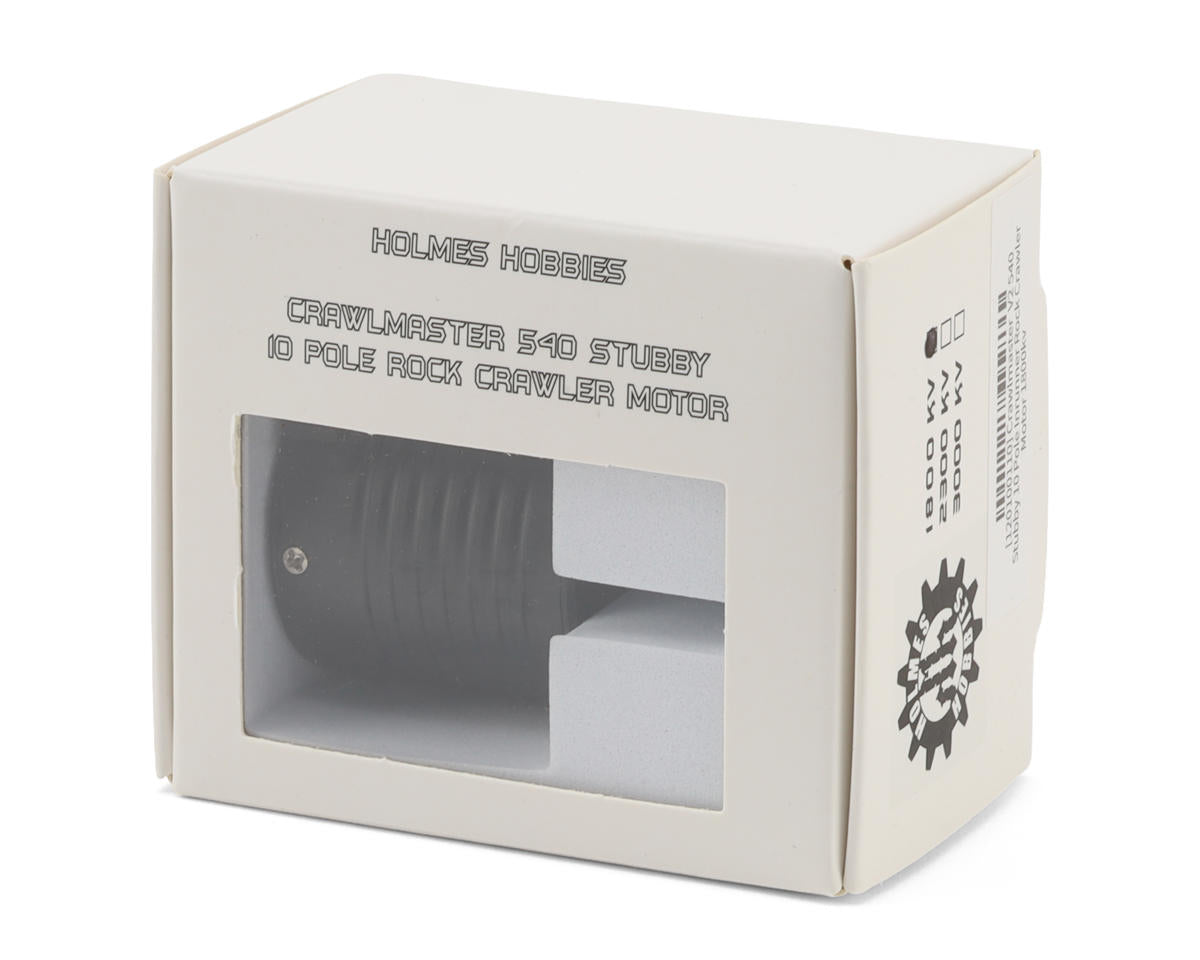

• (1) Crawlmaster V2 540 Stubby 10 Pole Inrunner Rock Crawler Motor
