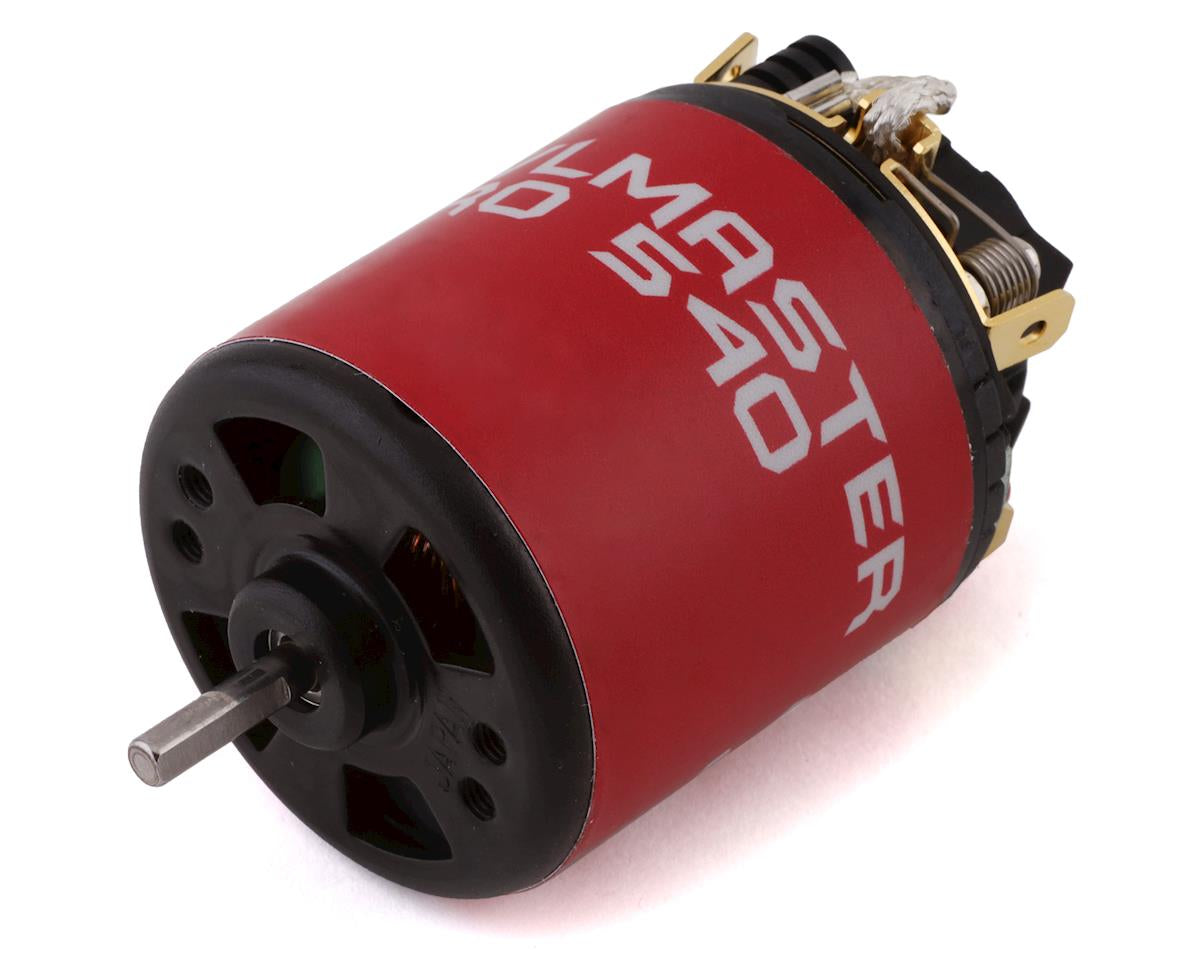

Holmes Hobbies CrawlMaster Pro Motor 540 Brushed Electric Motor (11T)

The Holmes Hobbies CrawlMaster Pro 540 is an 11-turn brushed electric motor designed for smooth power delivery, low-speed control, torque, and efficiency. It features a USA hand-wound armature, Japanese quality parts, and precision-focused construction.

Features

• Motor: 540 brushed electric motor with 11T, 2675Kv standup brush
• Commutator: 7.5mm diamond-trued commutator
• Armature: 5-slot armature with epoxy balancing

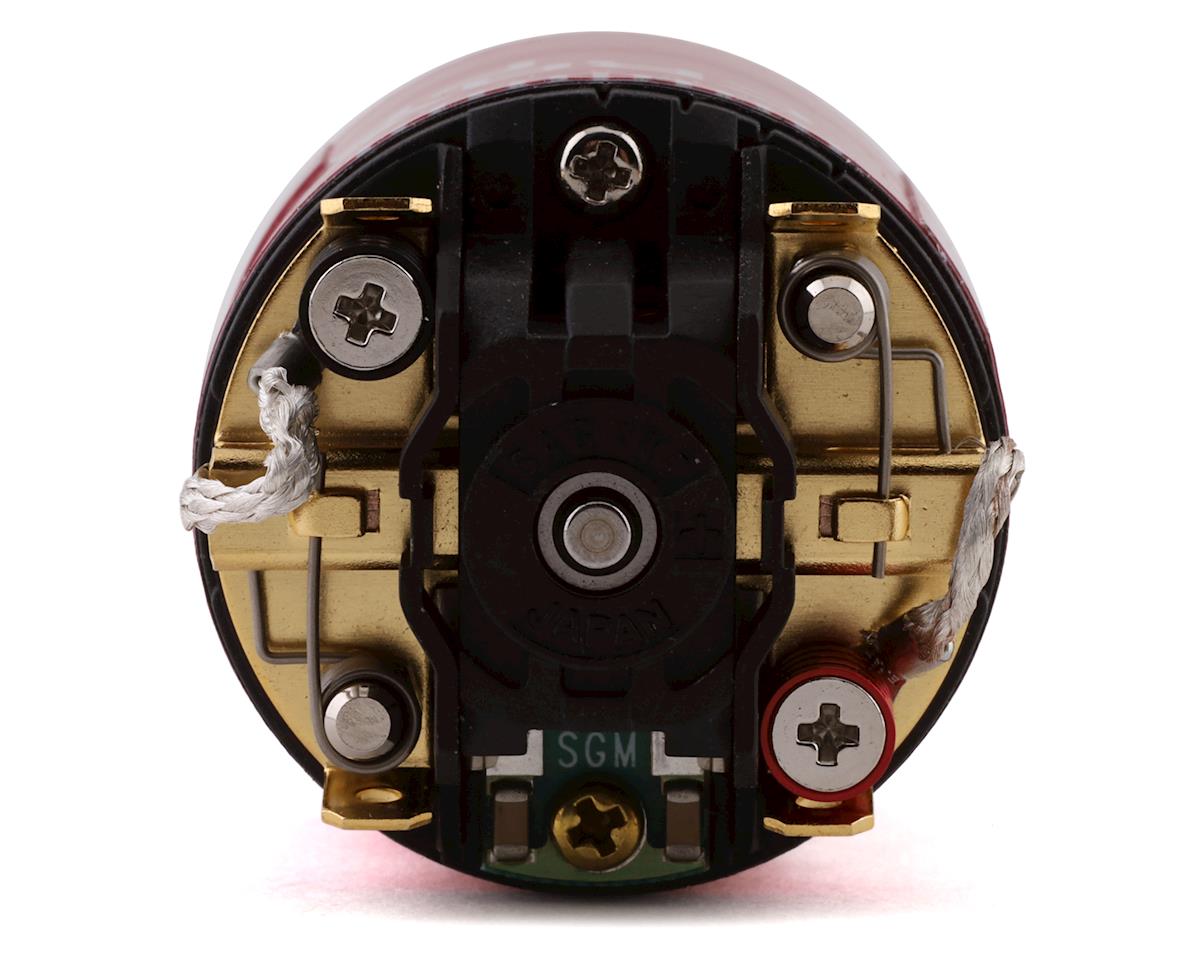

• Brush hood: Gold-plated copper construction
• Can: 1.4mm thick can with minimal venting and two high-power FB9 wet magnets
• Bearings: Dual ball bearings
• Timing: Adjustable timing
• Brush springs: 0.55mm extra-heavy springs for consistent drag brake
• Weight: 6.15 ounce finished weight with medium wire fill

Important Notes

• All kV measurements are taken at zero timing, no load, and 7 volts.
• For use in the Axial Wrath on 3s lipo (11.1v), use a 16t pinion to avoid overheating the motor.
• Includes a 30 day manufacturer warranty covering defects.
