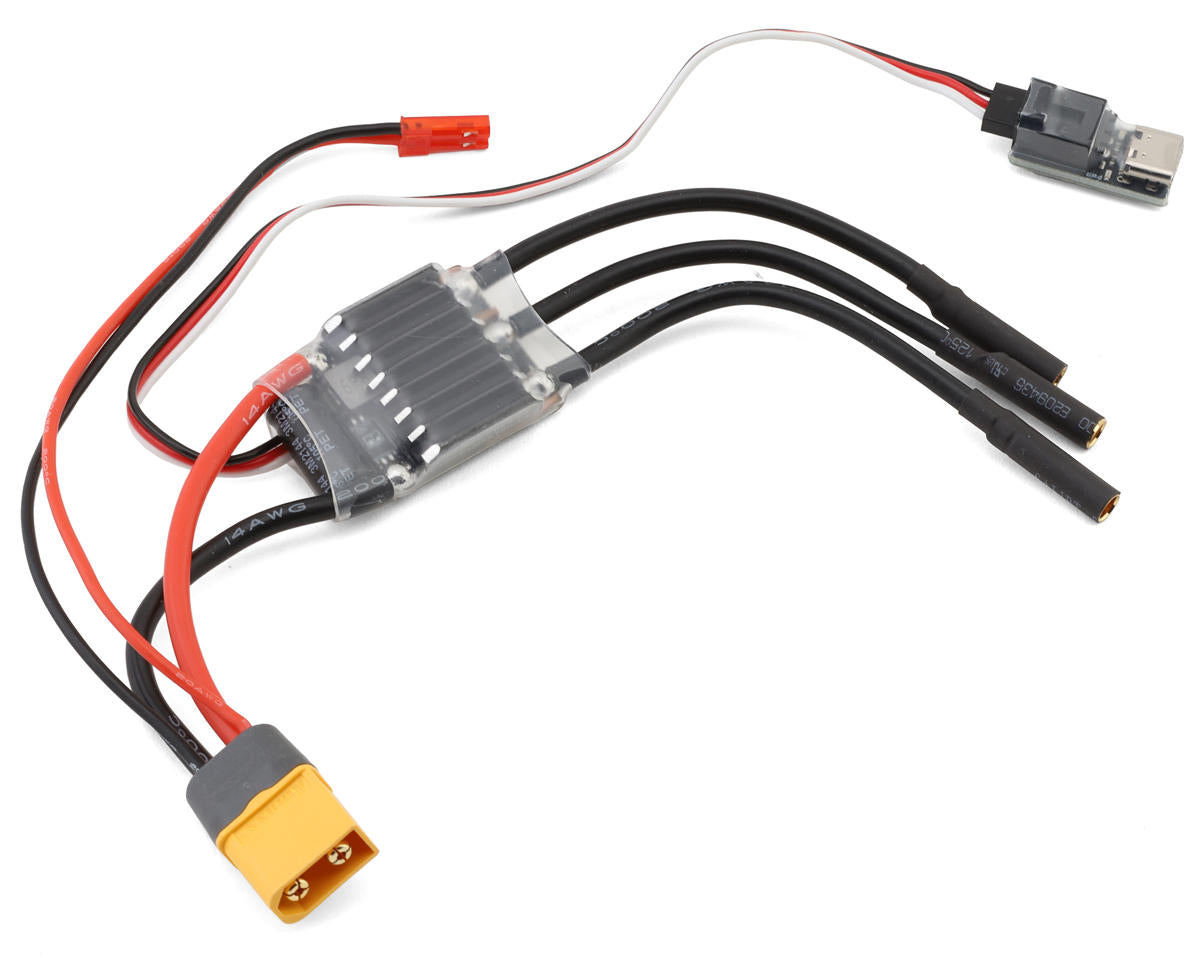

Holmes Hobbies CrawlMaster Mini V3 Rock Crawler Brushless ESC

The Holmes Hobbies CrawlMaster Mini V3 Rock Crawler Brushless ESC uses 32 bit technology in a compact package for 1/10th and smaller single-speed trail, scale, and rock crawlers. It features smooth throttle control, a strong drag brake, silent operation with most motors, and an XT60 connector. The ESC is pre-soldered and conformal coated for water resistance.

Features

• 32 bit technology
• Exclusive Sinewave Startup, like FOC, with an open system compatible with all motors
• Silent operation with most motors and inaudible switching frequency
• Intelligent RPM lock at low speed
• Regular throttle above low speed for torque control
• Overcurrent, temperature, stalled rotor, and throttle loss protection
• Automatic cell detection and low voltage protection for LiPo batteries
• Ultra smooth throttle and strongest drag brake out of the box

Specifications

• Input Voltage: 2-4S lipo (20V max)
• Internal BEC: 3A - 7.4V
• Length: 39mm
• Width: 26mm
• Height: 11m
• Weight: 39g
• Connector Type: XT60

Recommended Use

• 1/10th and smaller single-speed trail, scale, and rock crawlers such as TRX4 Sport, SCX10, and Element Enduro
• 8lb limit, subject to gearing, driving style, terrain, and other factors
• 1800kV motor limit for 4S use
• Not recommended for two-speed vehicles, rock racers, tow rigs, and other high load installations

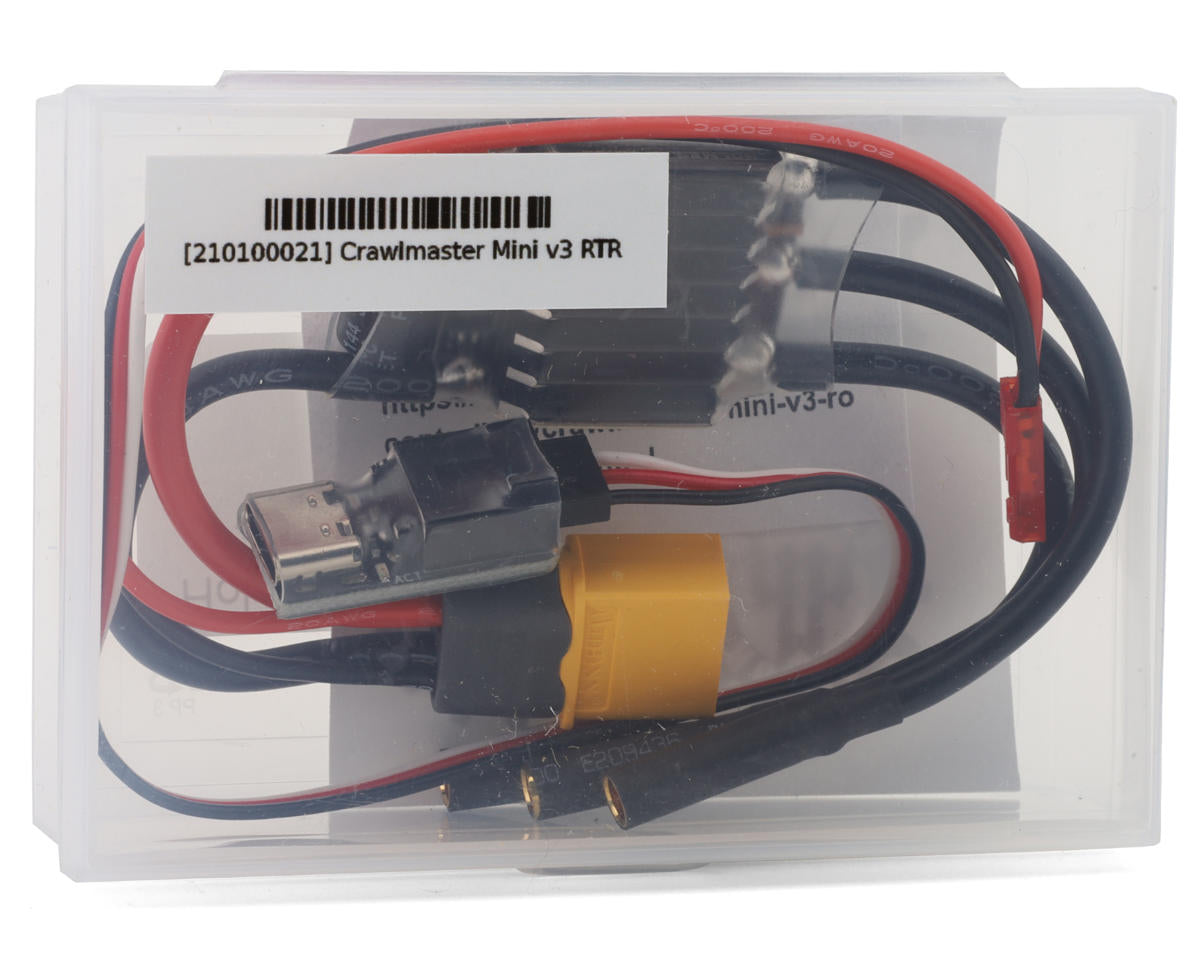

Includes

• (1) CrawlMaster Mini V3 Rock Crawler Brushless ESC
• (1) USB programmer
• (1) Manual

For planned submersion, Holmes Hobbies recommends additional coating with CowRC's Cow-Formal coat (CPP-C46011344), sold separately.
