Holmes Hobbies CrawlMaster HV 1/10 Rock Crawler Sensorless Brushless ESC (2-6S)

The Holmes Hobbies CrawlMaster HV is a sensorless brushless ESC for 1/10 single-speed rock crawlers up to 8lbs. It supports 2 to 6S LiPo input voltage, with a 30V maximum, and delivers smooth control through Exclusive Sinewave Startup, Intelligent RPM lock at low speed, and Normal PWM throttle operation.

Its compact, lightweight design includes 32-bit processing, silent operation with an inaudible switching frequency, and protection against overcurrent, temperature, and throttle loss. The internal 5V 2.5A BEC powers servos, while automatic cell detection and low voltage protection support the power system.

Features

• Sensorless brushless ESC
• 32-bit processing power for advanced control algorithms
• Exclusive Sinewave Startup for smooth motor operation
• Silent operation with inaudible switching frequency
• 2 to 6S LiPo compatible, 30V max
• Intelligent RPM lock at low speed
• Normal PWM throttle for predictable power output
• Overcurrent, temperature, and throttle loss protection
• Automatic cell detection and low voltage protection
• 5V 2.5A internal BEC

Specifications

• Application: 1/10 Single Speed Rock Crawlers Up to 8lbs
• Continuous Current: 40A
• Peak Current: 120A
• Dimensions: (38x27x4.6mm)
• Weight: 32g
• Battery Connector: XT60

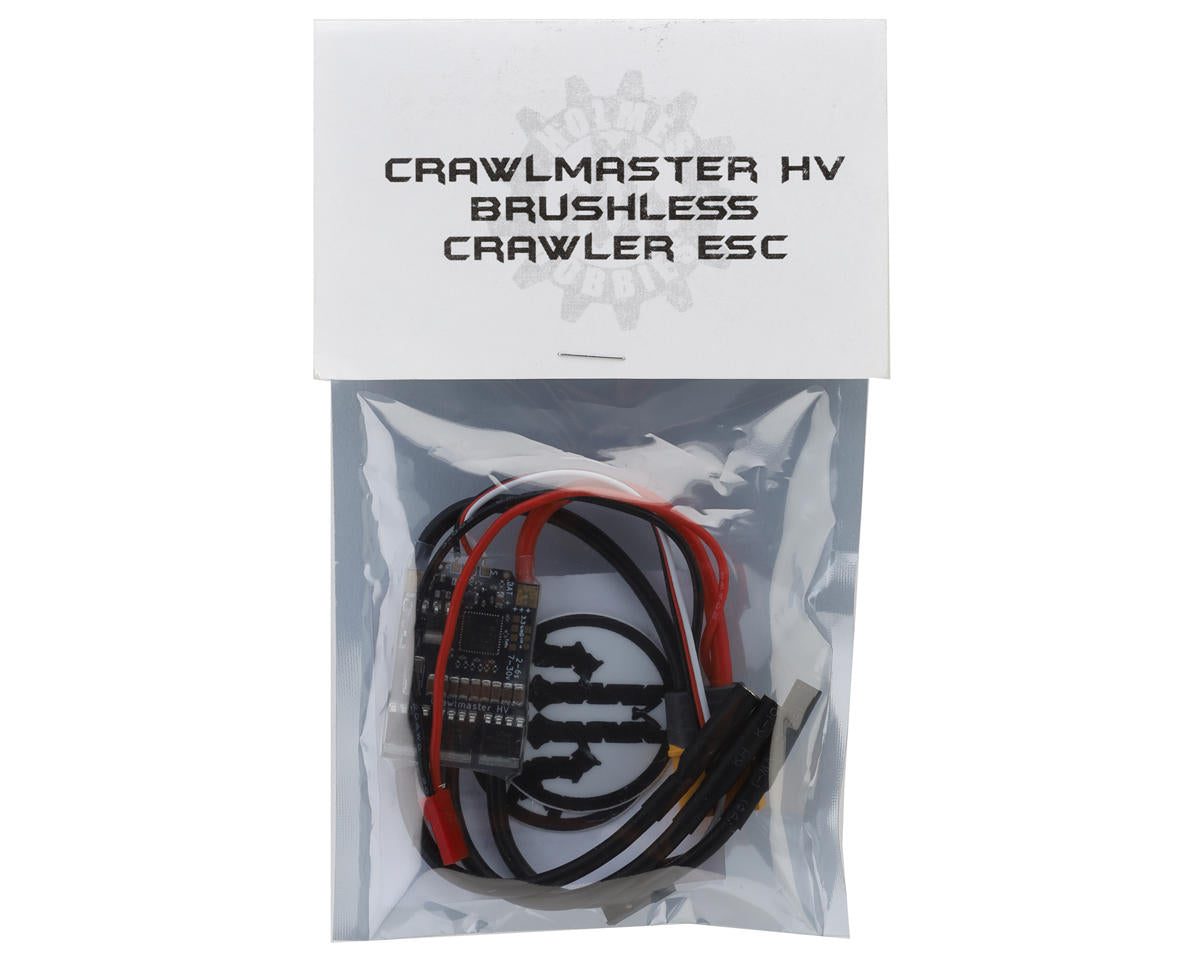

Includes

• (1) Complete ESC
• (1) 100mm motor leads
• (1) 100mm XT60 battery lead with integrated JST connection
• (1) 125mm Rx lead

Important: Not waterproof. Not recommended for two speed vehicles, rock racers, tow rigs, other high load installations, or vehicles heavier than 8lb. Holmes Hobbies recommends coating with silicon conformal for wet, moist, or dusty conditions.
