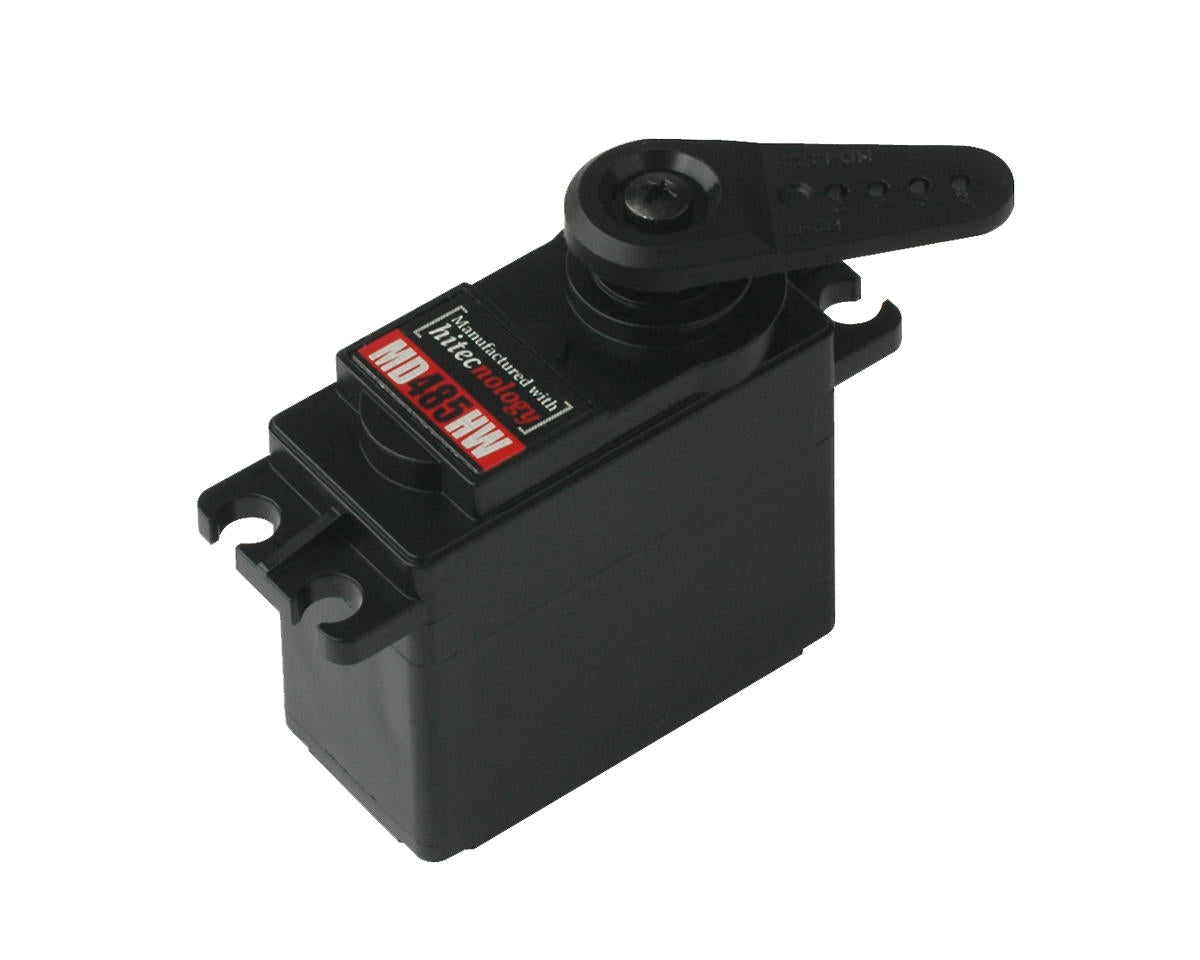

Hitec MD485HW 32bit Digital Standard Karbonite Gear Drag Servo

The Hitec MD485HW 32bit Digital Standard Karbonite Gear Drag Servo uses a magnetic encoder position sensor, 4096-step resolution and a 32-bit digital circuit for precise control. Its IP65-rated case, heavy-duty motor and Karbonite gears make it suited to radio control drag racing applications.

Features

• High Resolution 32-bit (4096 steps) programmable digital circuit
• PWM or TTL Protocol Capability
• Magnetic Encoder Position Sensor
• Wide Operating Voltage: 4.8 ~ 8.4V
• Heavy-Duty, Long Life Motors
• IP65 Rated Cases
• Customization and Modification Options Available
• Custom Connector Options Available

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications

• Operating Voltage Range: 4.8V ~ 8.4V DC
• Speed: 0.20 ~ 0.15 Sec @ 60°
• Maximum Torque Range: 67 ~ 103 oz. / in. (4.8 ~ 7.4 kg. / cm.)
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 320 mA
• Stall Current Draw: 1,500 mA
• Dead Band Width: 2us
• Dimensions: 1.57x0.78x1.50 (39.8x19.8x38.0mm)
• Weight: 1.59oz (45.0g)
• Circuit Type: 32 bit (4096 step)
• Motor Type: Cored Carbon Brush
• Gear Material: Plastic Resin Gears
• Bearing Type: Top Ball Bearing
• Output Shaft: 25 / 6mm Ø
• Case Material: Plastic
• Dust / Water Resistance: IP-65 Rated

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty; otherwise, the purchaser and/or consumer is responsible for repair or replacement charges.
