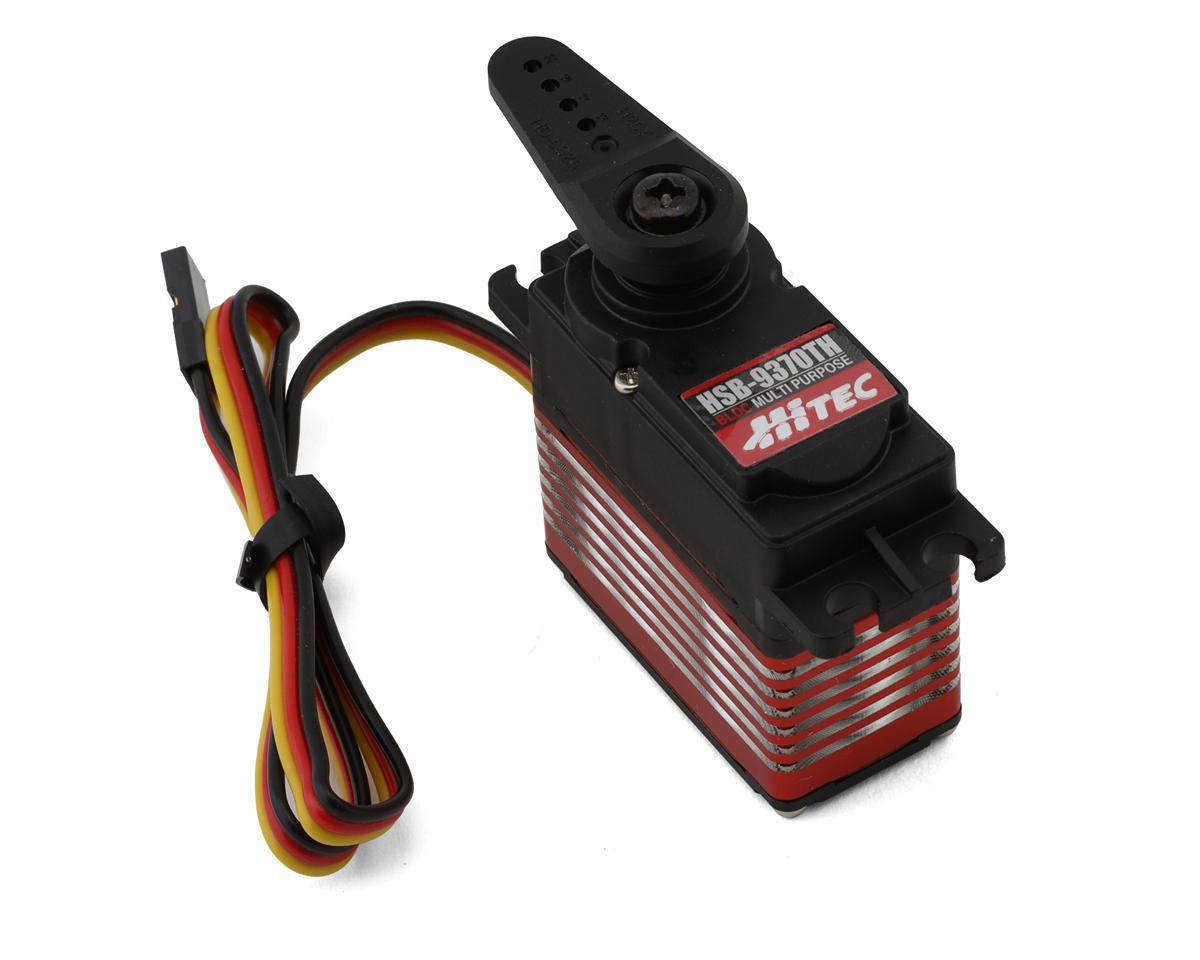

Hitec HSB-9370TH Titanium Geared Brushless Servo (HV) w/PAD

The Hitec HSB-9370TH is a high-voltage brushless servo with CNC-machined titanium gears, a hybrid nylon reinforced plastic and aluminum case, and a dual ball bearing supported output shaft. It features low current consumption, constant output power, and a programmable 12-Bit PWM digital amplifier.

Features

• Suitable for 1/10 and 1/8 TC, Buggies, Truggies, Monster Trucks, SC Trucks, Boats, Plans and Helicopters
• Low current consumption and constant output power
• CNC-machined high grade titanium gears
• Programmable 12-Bit PWM Digital Amplifier
• 1M Cycle Long Life Potentiometer
• Capable of High Voltage (HV) operation
• Dual Ball Bearing Supported Output Shaft
• Hybrid Nylon Reinforced Plastic and Aluminum Case
• Dust Resistant and Splash Proof Case

Specifications

• Motor: Brushless
• Operating Voltage: 6.0V-7.4V
• Speed @6.0V: 0.12sec/60°
• Speed @7.4V: 0.10sec/60°
• Torque @6.0V: 347oz-in (25kg-cm)
• Torque @7.4V: 347oz-in (25kg-cm)
• Dimensions(LxWxH): 1.57x0.79x1.50" (40x20x38mm)
• Weight: 68g (2.4oz)
• Operating Spline: 25T

Includes

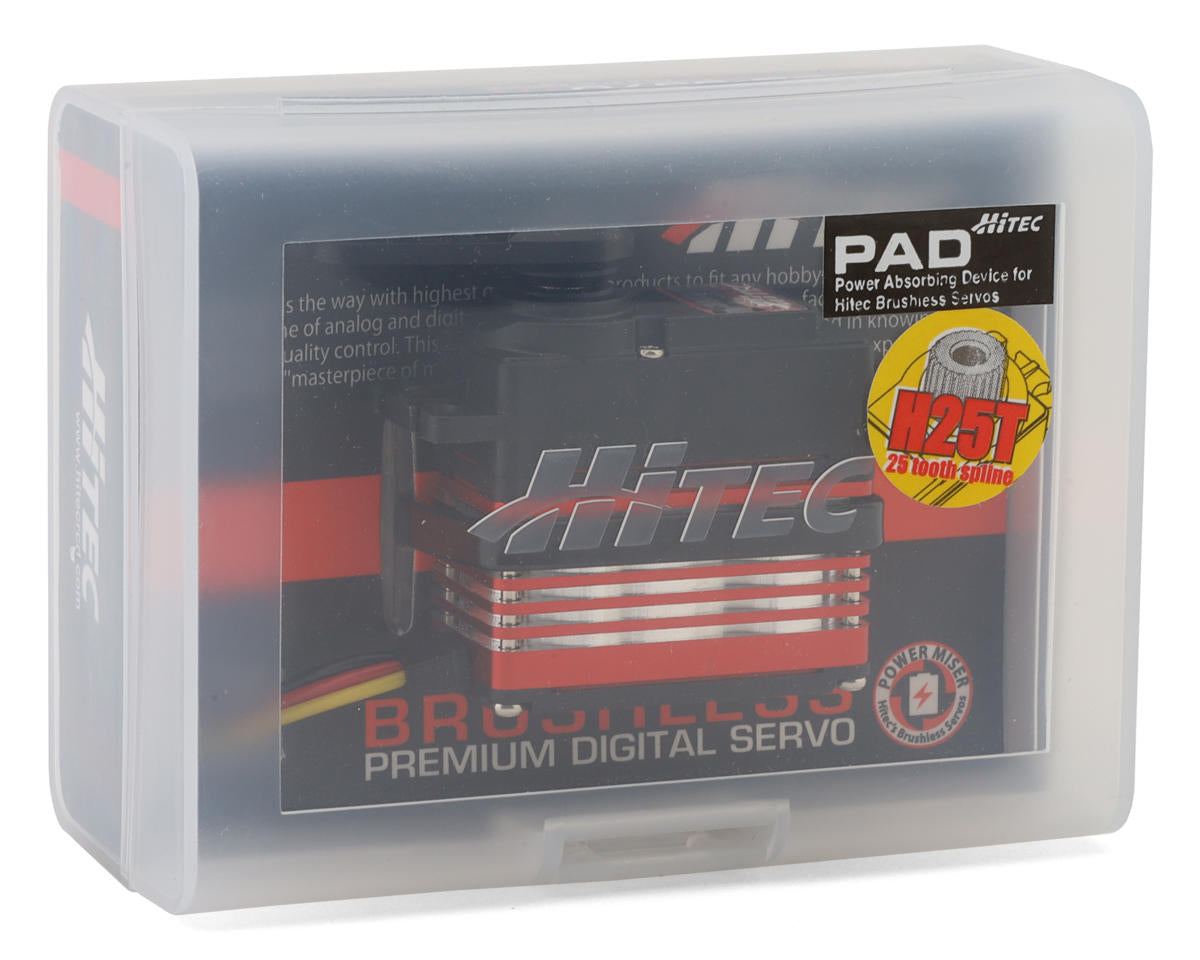

• (1) HSB-9370TH Titanium Geared Brushless Servo
• (1) PAD (Power Absorbing Device)
