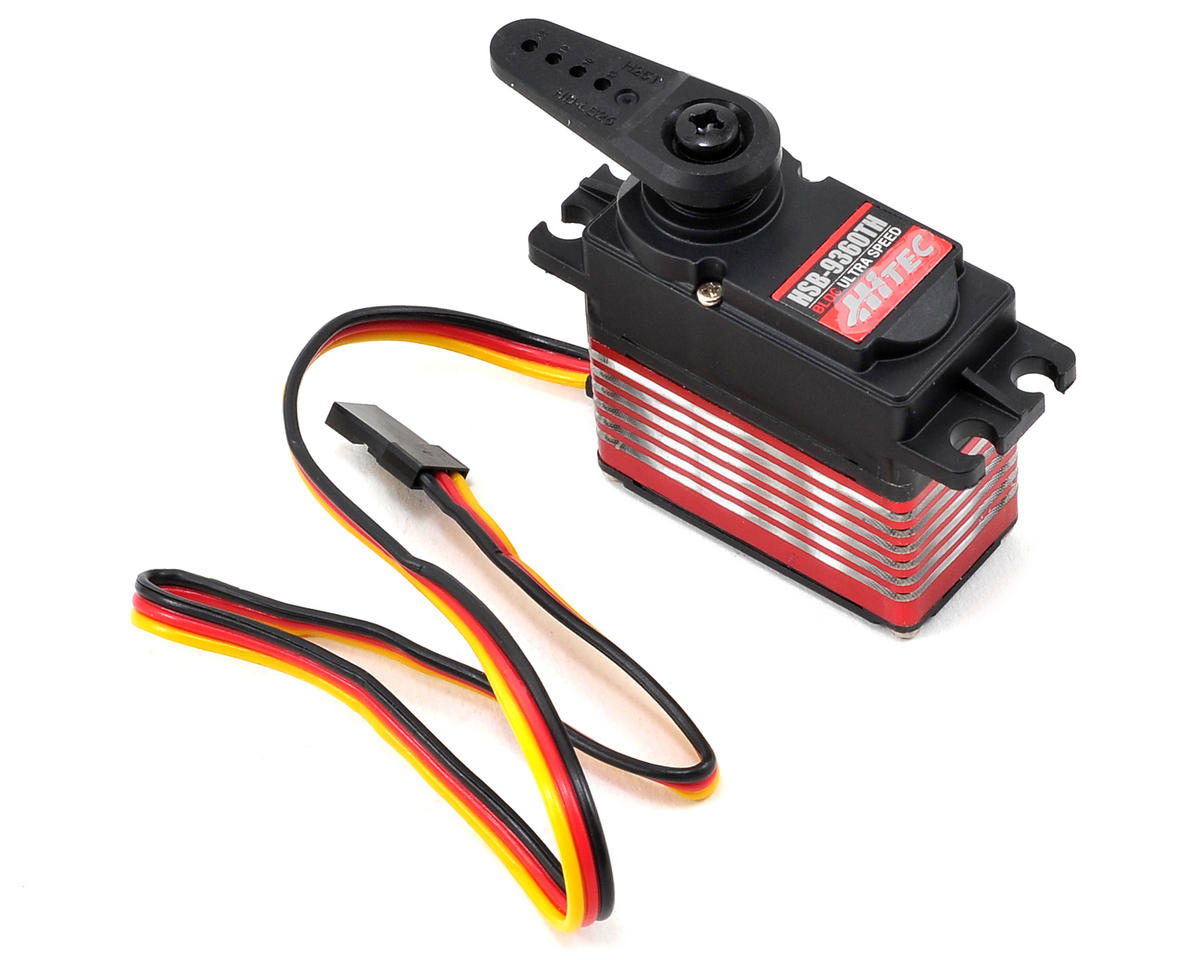

Hitec HSB-9360TH High Speed Brushless Titanium Gear Servo w/PAD (High Voltage)

The Hitec HSB-9360TH is a high-speed, high-voltage brushless servo with a titanium gear train, custom NeuMotor, and standard 25-tooth output spline. It is designed for 3D helicopter applications and includes a PAD (Power Absorbing Device).

Features

• Programmable 12-bit digital circuit with the DPC-10 PC interface (PN 44426) and downloadable software
• Programmable fail safe, position, direction, EPA, speed, dead band, and soft start settings
• Power-efficient brushless motor controller with regenerative braking circuit
• Custom Neu brushless motor designed by Steve Neu for the HSB-9XXX Series
• Constant torque output designed to maintain consistent speed under load
• Hybrid MPD first gear made from metal, plastic, and duralumin
• Titanium gear train
• Standard 25-tooth output spline

Specifications

• Model: 9360TH High Speed
• Speed @ 6.0V: 0.08
• Speed @ 7.4V: 0.06
• Torque: 236 oz-in (17.0kg-cm)
• Dimensions: 40x20x38mm
• Weight: 2.40 oz (68g)
• Applications: 3D Helicopters

Important Compatibility Note

The regenerative braking feature may cause problems with devices that cannot accept a backflow of current, including voltage regulators, Power Safe receivers, and certain BEC circuits. Check with the device manufacturer or the Hitec website for compatible models. If a device cannot accept current backflow, a PAD is required; one is included with every Hitec brushless servo.

Each Hitec servo is backed by a limited two-year warranty from the date of purchase.
