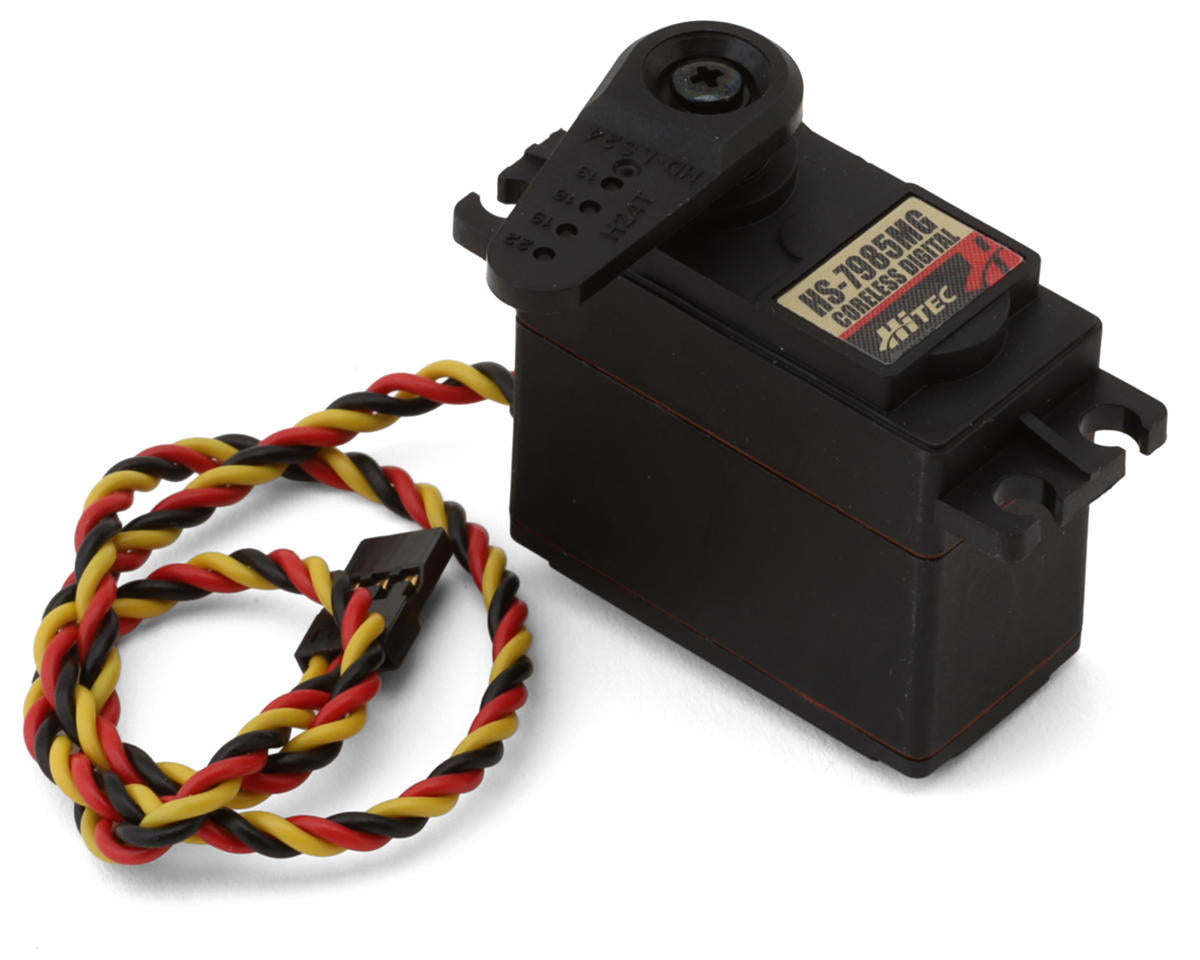

Hitec HS-7985MG Digital High-Torque Metal Gear Servo

The Hitec HS-7985MG Digital High-Torque Metal Gear Servo combines a G2 programmable digital circuit with a coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts, and a heavy-duty metal gear train.

Features

• G2 digital circuit with twice the resolution of the original circuit
• Programmable overload protection
• Coreless motor
• Dual ball bearing supported output shaft
• Heavy-duty metal gear train

Programmable Functions

• Dead band width
• Direction of rotation
• Speed of rotation, slower
• End points
• Neutral points
• Fail safe on/off
• Fail safe point
• Resolution, default is high resolution
• Overload protection, default is off

The resolution and overload protection settings are programmable only with the HFP-20 field programmer (#44430).

Specifications

• Speed: 4.8V: 0.16 sec/60 deg.; 6.0V: 0.13 sec/60 deg.
• Torque: 4.8V: 144 oz/in; 6.0V: 172 oz/in
• Length: 1.57in (39.87mm)
• Width: 0.78in (19.81mm)
• Height: 1.45in (36.83mm)
• Weight: 2.18oz (61.7g)

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. will repair or replace defective equipment covered by this warranty.
