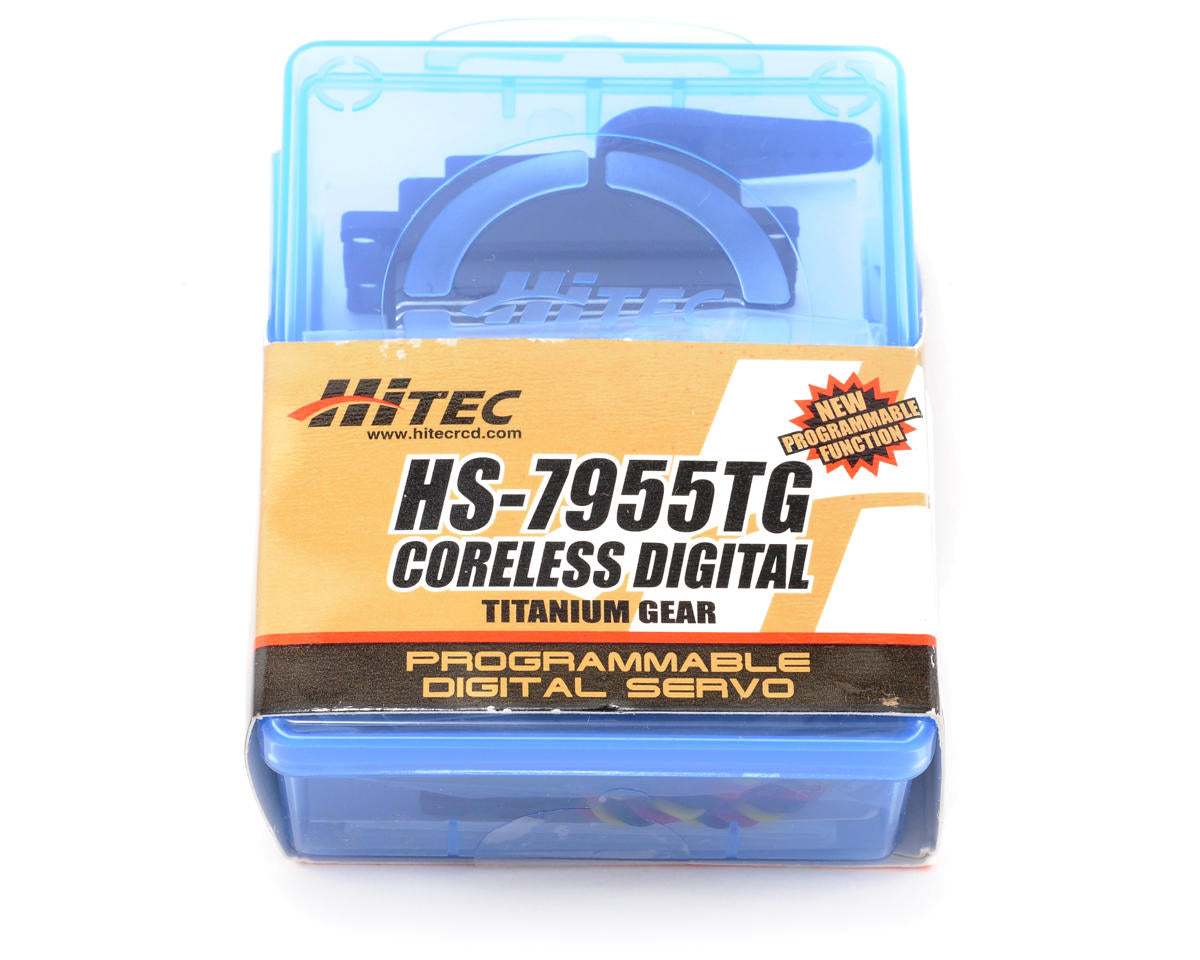

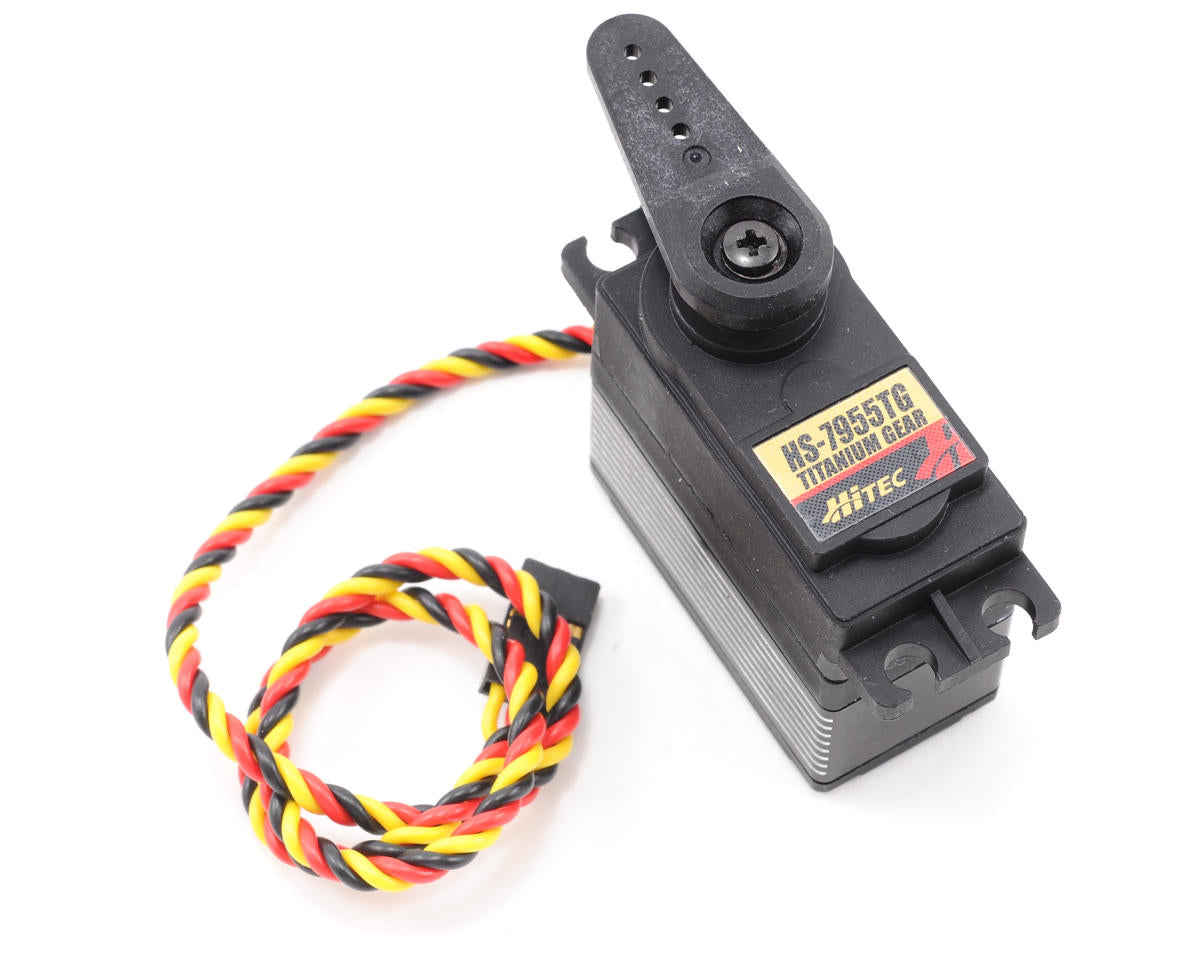

Hitec HS-7955TG V2 Torque Titanium Gear Digital Servo

The Hitec HS-7955TG V2 Torque Titanium Gear Digital Servo combines a G2 second-generation programmable digital circuit with a coreless motor, dual ball bearing supported output shaft, and titanium gearing. It delivers up to 333 oz/in of torque at 6.0V.

Features

• G2 programmable digital circuit
• Coreless motor
• Dual ball bearing supported output shaft
• Titanium Gear Train (MK first gear)
• Two hardened steel gear pins
• Axial brass bushing in the servo case

Programmable Functions

• Dead band width
• Direction of rotation
• Speed of rotation (slower)
• End points
• Neutral points
• Fail safe on/off
• Fail safe point
• Resolution (default is high resolution)
• Overload protection (default is off)

Resolution and overload protection are programmable only with the HFP-20 field programmer (#44430).

Specifications

• Speed at 4.8V: 0.19 sec/60 deg.
• Speed at 6.0V: 0.15 sec/60 deg.
• Torque at 4.8V: 250 oz/in
• Torque at 6.0V: 333 oz/in
• Length: 1.57in (39.87mm)
• Width: 0.78in (19.81mm)
• Height: 1.45in (36.83mm)
• Weight: 2.29oz (65g)

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty.
