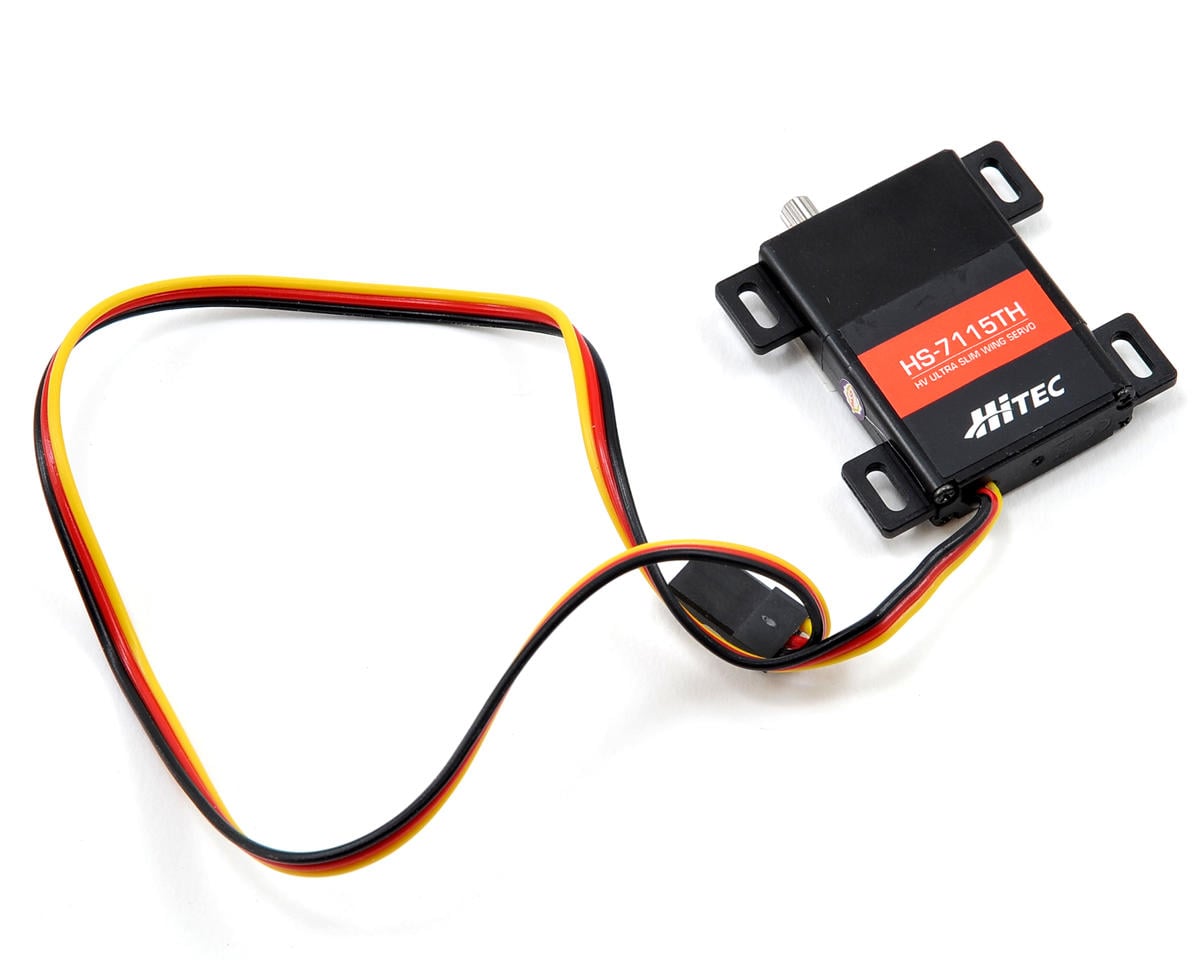

Hitec HS-7115TH Ultra Premium High-Voltage Titanium Gear Slim Wing Servo

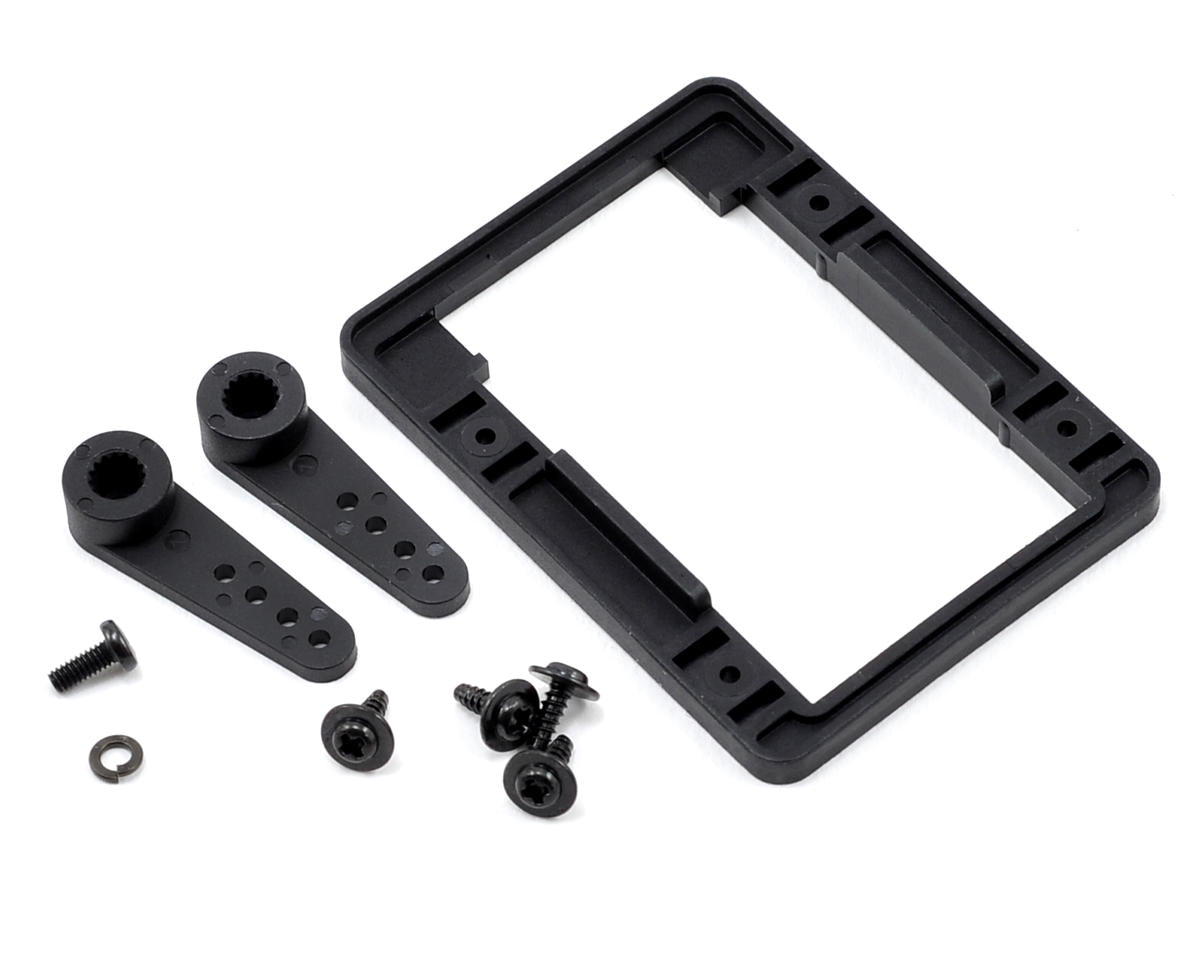

The Hitec HS-7115TH is a digital, high-voltage slim wing servo designed for sailplanes, pylon racers and smaller scale aircraft models. Its 8.0mm-high case and included mounting bracket suit tight wings and compact spaces.

A 3-pole ferrite motor drives a titanium metal gear train, while dual ball bearings support the servo's operation. It delivers 44 oz-in (3.2 kg-cm) of torque at 6.0V and 50 oz-in (3.6 kg-cm) at 7.4V.

Specifications

• Type: Digital
• Application: Sailplanes, pylon racers, smaller scale aircraft models
• Torque: 44 oz-in (3.2 kg-cm) @ 6.0V; 50 oz-in (3.6 kg-cm) @ 7.4V
• Speed: 0.12 sec/60° @ 6.0V; 0.10 sec/60° @ 7.4V
• Dimensions: 1.50 in (38mm) length, 1.02 in (26mm) width, 0.31 in (8.0mm) height
• Weight: 0.71 oz (20 g)
• Motor: 3-pole ferrite
• Gear material: Titanium
• Bearing: Dual ball bearings
• Voltage: 6.0V-7.4V
