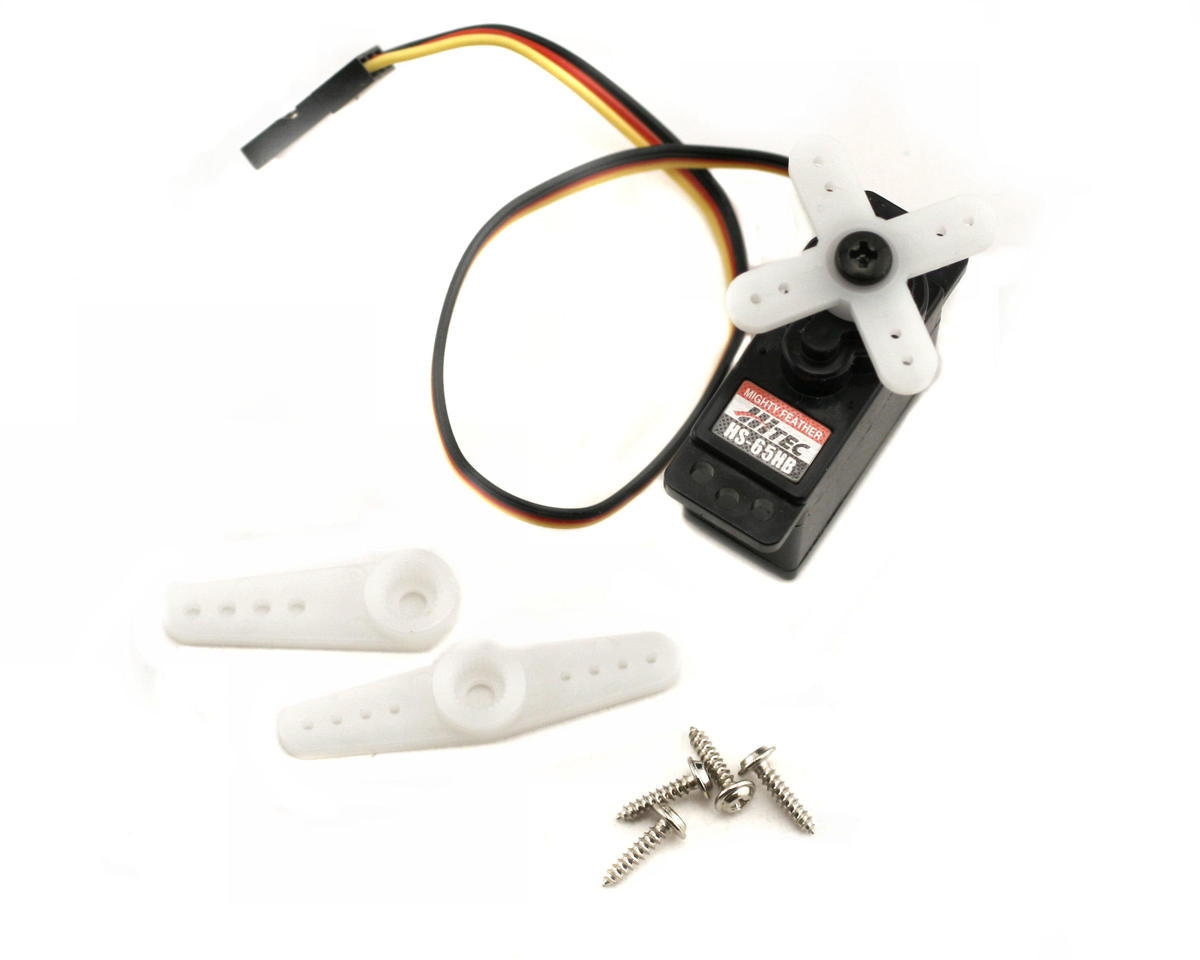

Hitec HS-65HB Karbonite Micro Servo

The Hitec HS-65HB Karbonite Micro Servo features Karbonite gears, a top-ball bearing, and a universal connector for Airtronics, JR, Hitec, and Futaba receivers. It is intended for higher-performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

• Karbonite gear technology
• Top-ball bearing for long life and positive centering
• Universal connector fits Airtronics, JR, Hitec, and Futaba receivers; observe connector polarity with Futaba radios
• Karbonite gears are four times stronger than conventional white resin gears
• Karbonite gears tested for 250,000 cycles under load with no sign of wear

Specifications

• Speed: 4.8V: 0.14 sec/60 deg.; 6.0V: 0.11 sec/60 deg.
• Torque: 4.8V: 24.99 oz/in; 6.0V: 30.55 oz/in
• Length: 0.93in (23.6mm)
• Width: 0.46in (11.6mm)
• Height: 0.94in (24mm)
• Weight: 0.39oz (11.1g)

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty. The purchaser and/or consumer is responsible for any charges for repair or replacement otherwise.
