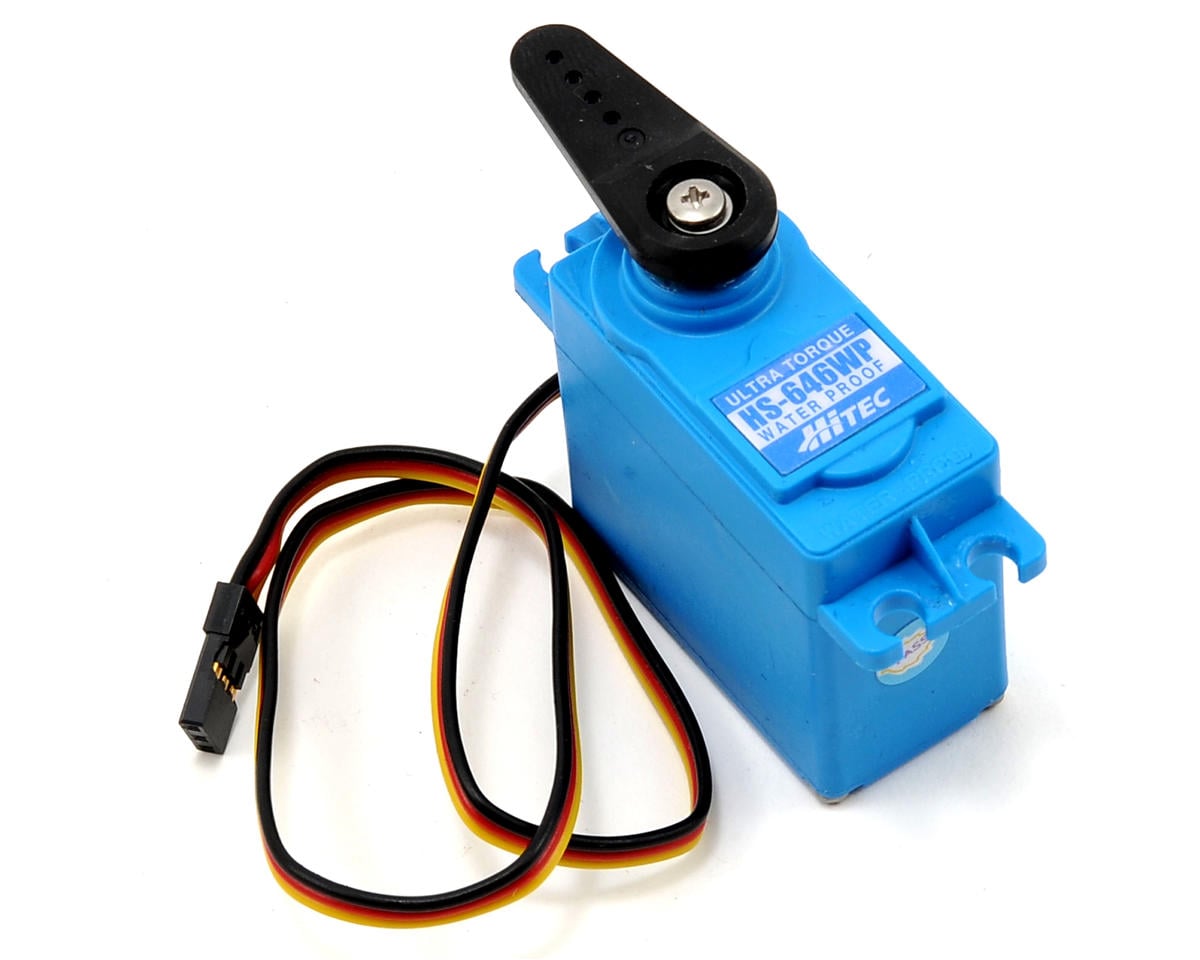

Hitec HS-646WP Standard Metal Gear Ultra Torque Analog Servo (High Voltage)

The Hitec HS-646WP is a standard-size, high-voltage analog servo designed for boats, cars and airplanes. It features metal gears, dual ball bearings and an IP67 rating for waterproof operation in wet conditions.

Specifications

• Type: Analog
• Size category: Standard
• Torque: 133 oz-in (9.6 kg-cm) @ 6.0V; 161 oz-in (11.6 kg-cm) @ 7.4V
• Speed: 0.20 sec/60° @ 6.0V; 0.17 sec/60° @ 7.4V
• Voltage: 6.0V-7.4V
• Gear type: Metal
• Bearing: Dual
• Motor type: 3 Pole
• Connector type: Universal
• Length: 1.57 in (40.0mm)
• Width: 0.83 in (21.0mm)
• Height: 1.65 in (41.8mm)
• Weight: 2.12 oz (60.0 g)

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty; otherwise, the purchaser and/or consumer is responsible for repair or replacement charges.
