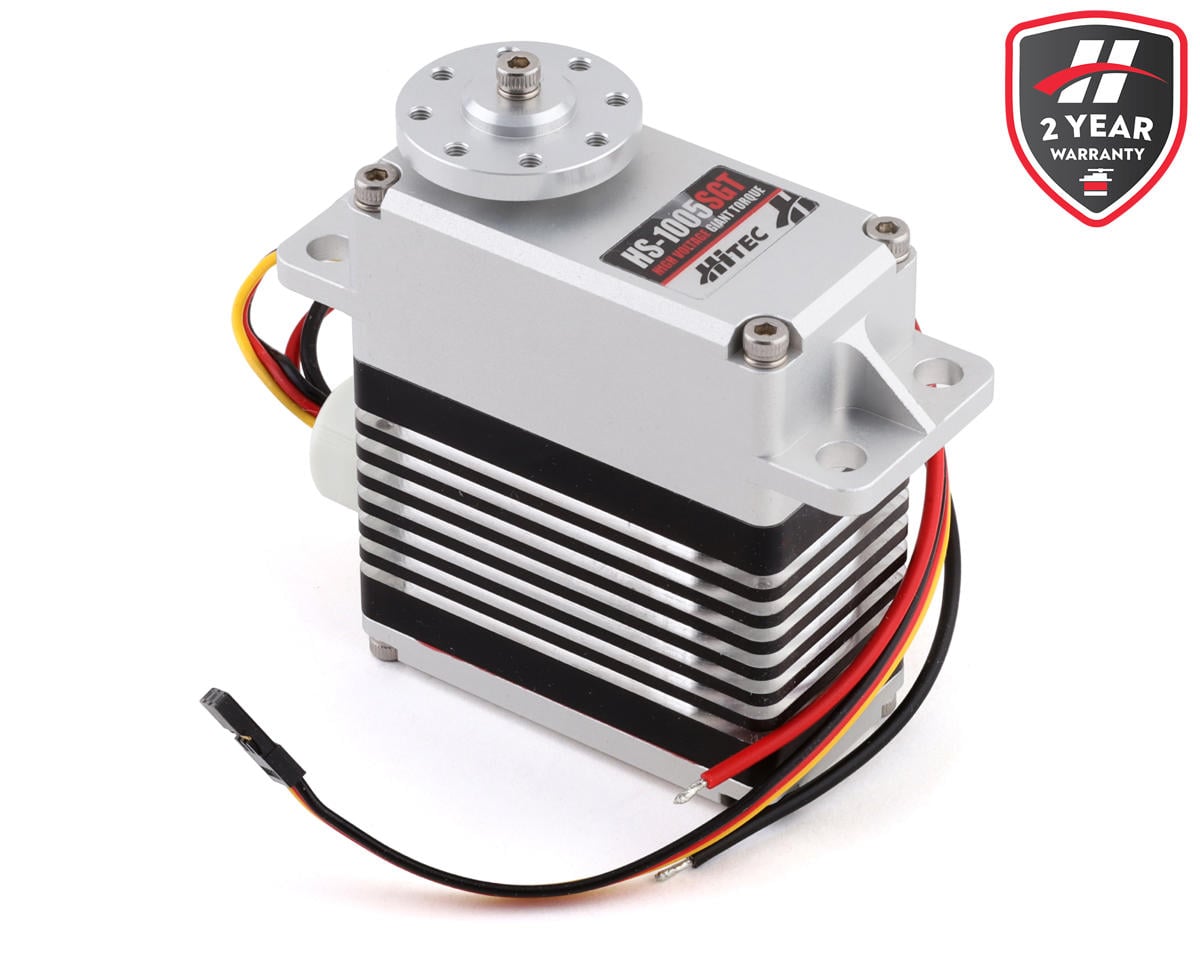

Hitec HS-1005SGT 1/5 Full Metal Giant Scale Industrial Servo

The Hitec HS-1005SGT is a 1/5 full metal giant scale industrial servo designed for demanding giant scale vehicles, aerobatic models, and industrial applications. It features an all-aluminum, EMI-shielded CNC case, hardened steel gears, digital MOSFET drive circuitry, and operation from 11.1V to 14.8V DC.

Features

• High-response digital MOSFET amplifier
• Hardened steel gears with MPD first gear
• Long-life potentiometer
• Dual ball bearing support
• 5-pole cored carbon brush motor
• 15T / 8mm output shaft
• Splash-proof construction
• 20awg/80 strand wire

Specifications

• Operating Voltage Range: 11.1V ~ 14.8V DC
• Speed: 0.26 ~ 0.19 @ 60°
• Maximum Torque Range: 1167 ~ 1528 oz-in (84 ~ 110 kg-cm)
• Current Draw at Idle: 130 mA
• No Load Operating Current Draw: 1,300 mA
• Stall Current Draw: 6,500 mA
• Dead Band Width: 2 µs
• Dimensions: 2.52x1.30x2.87" (64.0x33.0x73.0mm)
• Weight: 12.80 oz (363.0g)
• Circuit Type: Digital Amplifier with Mosfet Drive
• Gear Material: Steel
• Case Material: CNC Aluminum

Recommended Applications

• Sport Plane: >40%
• 3D Performance: >40%
• Scale: >40%
• On Road: 1/4th & 1/5th
• Monster Truck: 1/4th & 1/5th
• Buggies: 1/4th & 1/5th
• Truggies: 1/4th & 1/5th
• Short Course/Truck: 1/4th & 1/5th

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by the warranty; the purchaser and/or consumer is responsible for charges otherwise associated with repair or replacement.
