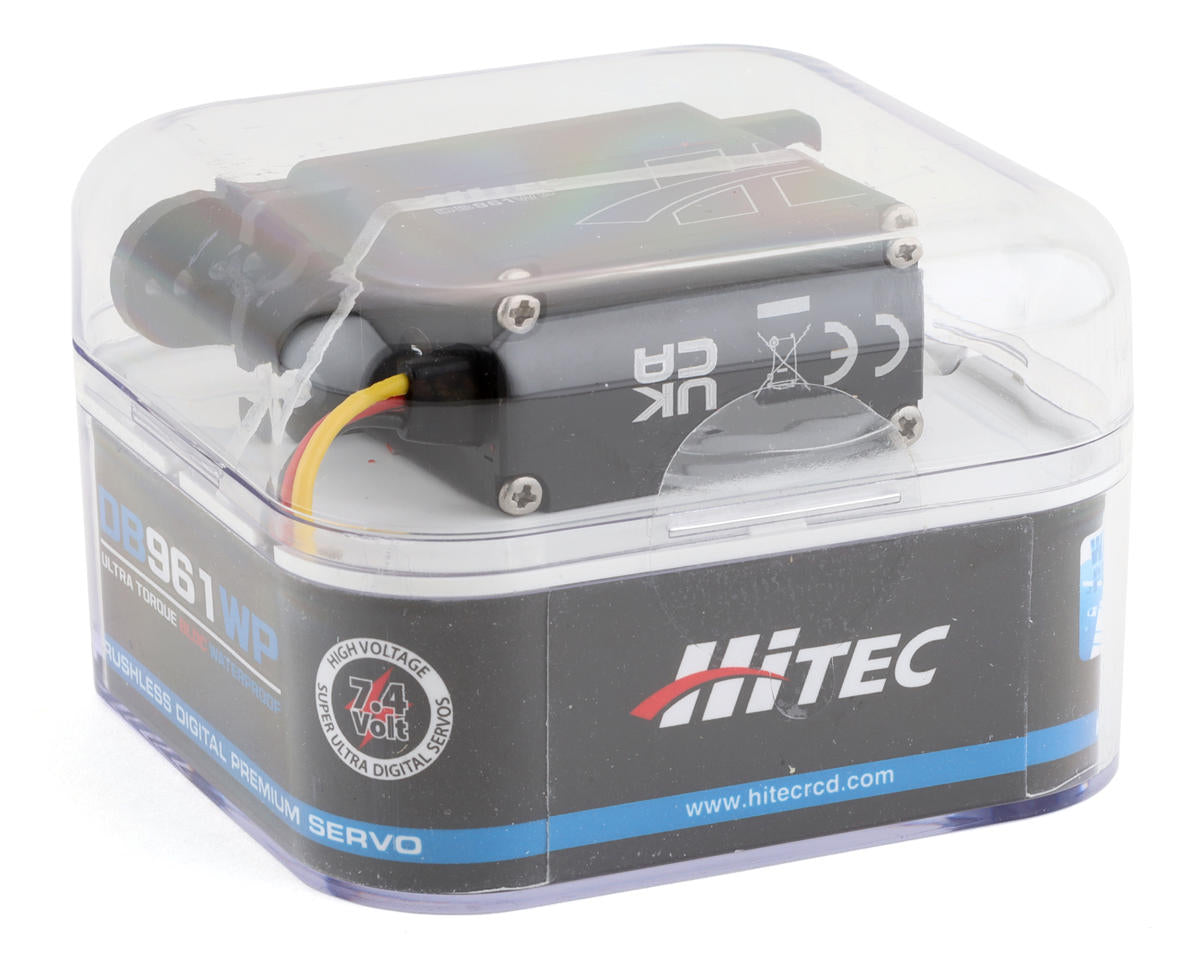

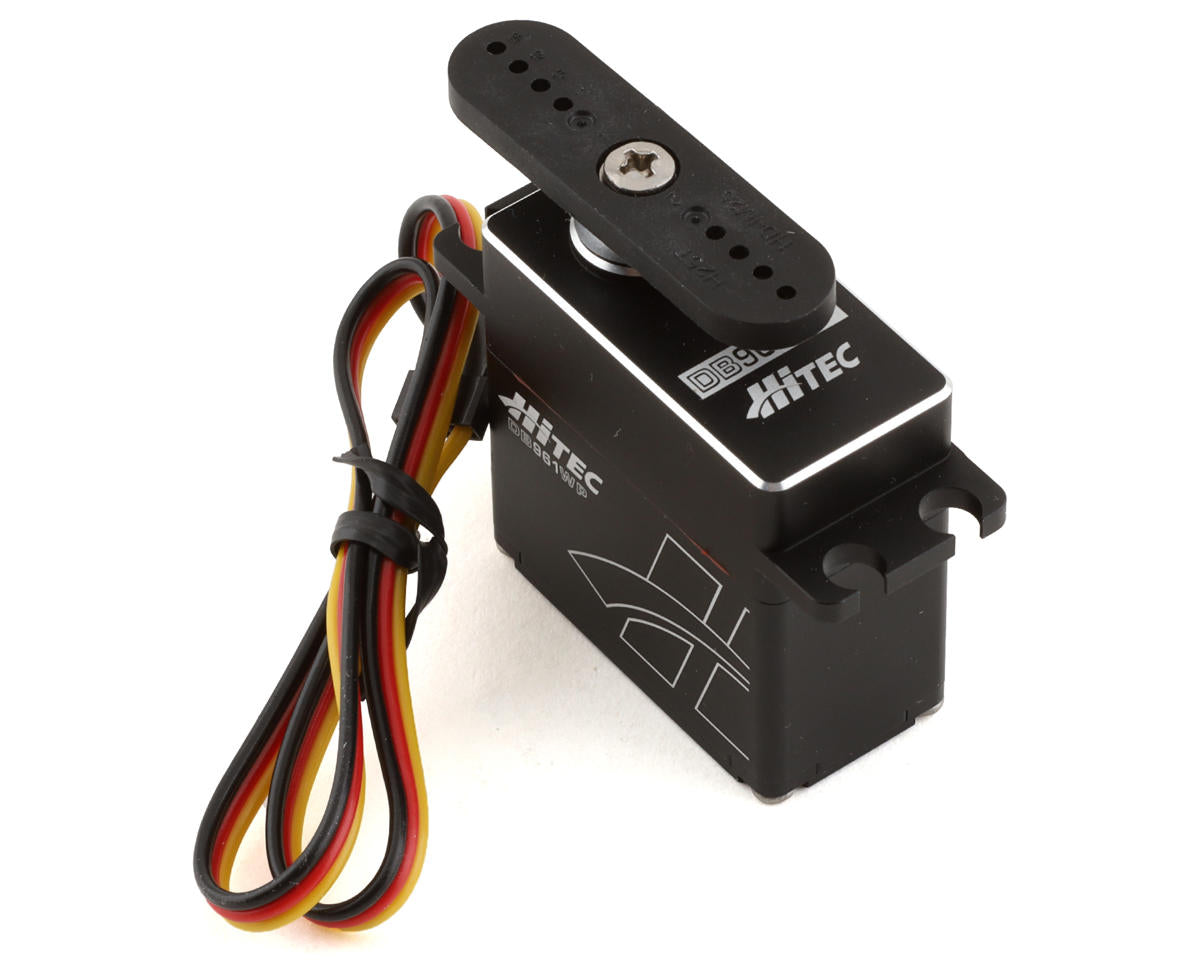

Hitec DB961WP Ultra Torque Waterproof Brushless Servo (High Voltage)

The Hitec DB961WP Ultra Torque Waterproof Brushless Servo delivers 55.0kg-cm (763.81oz-in) of torque at both 6.0V and 7.4V. Its high-voltage design combines a brushless motor, full metal case, IP67 water resistance, dual ball bearings, and a robust gear train.

Features

• Operating voltage: 6.0-7.4V
• High performance brushless motor
• Full metal case
• IP67 waterproof rating
• Robust gear train with dual ball bearings
• Programmable high-response digital amplifier with MOSFET driver
• 32-bit MCU and 12-bit ADC

Specifications

• Speed at 6.0V: 0.18sec/60°
• Speed at 7.4V: 0.15sec/60°
• Torque at 6.0V: 55.0kg-cm (763.81oz-in)
• Torque at 7.4V: 55.0kg-cm (763.81oz-in)
• Weight: 90.0g (3.17oz)
• Dimensions: 40x20x39mm (1.57x0.78x1.53in)
• Spline: 25T
• Motor type: Brushless
• Water resistance: IP67

Programmable features require the Hitec servo programmer, sold separately: HRC44427 or HRC44429.

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty.
