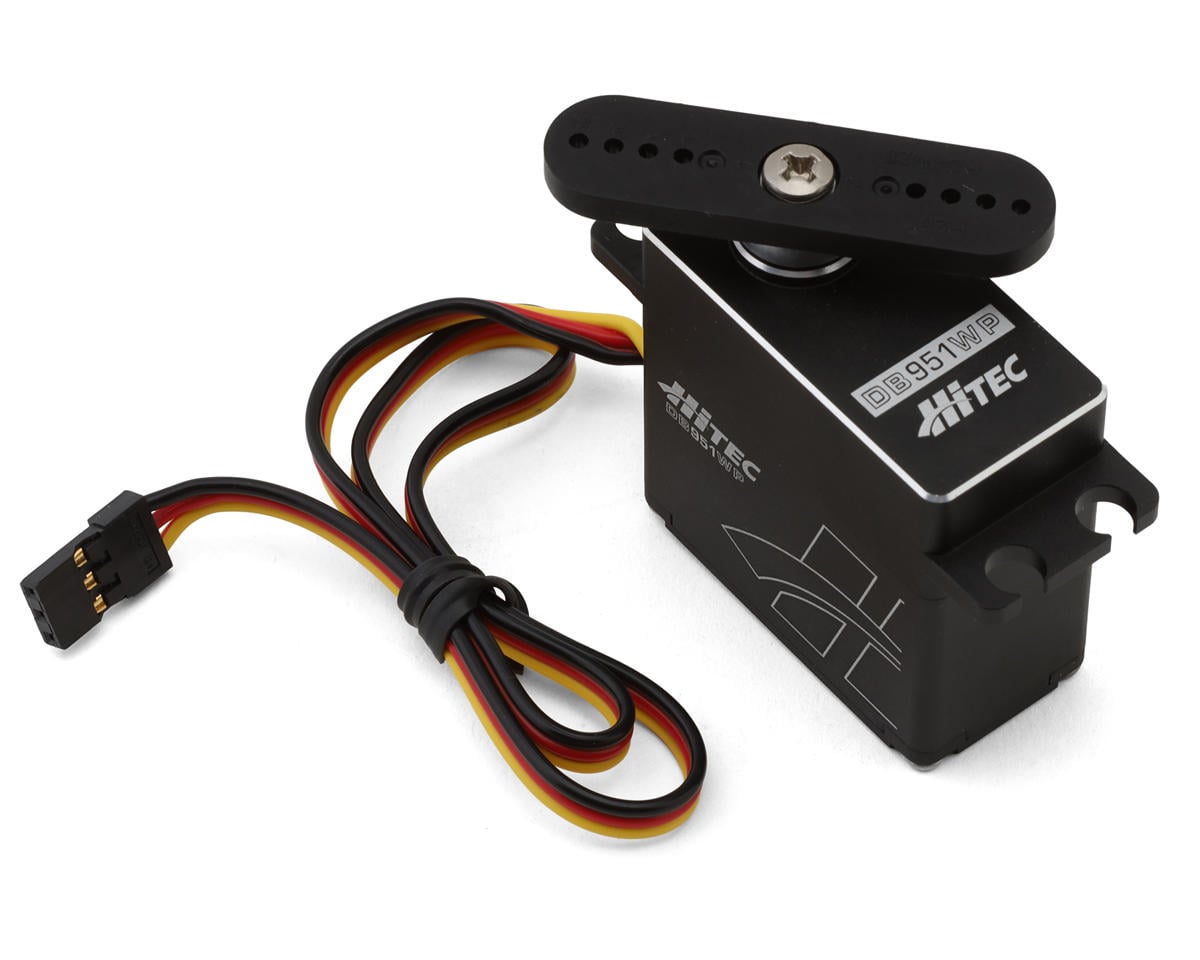

Hitec DB951WP High Speed Waterproof Brushless Servo (High Voltage)

The Hitec DB951WP High Speed Waterproof Brushless Servo combines a brushless motor, 32-bit control, programmable settings, and an IP67-rated CNC-machined aluminum case for demanding 1/10-1/8 applications.

Features

• High-performance brushless motor for fast, smooth operation
• 32-bit MCU with 4096 resolution for precise control
• Fully programmable settings for custom performance tuning
• Smart Sense Technology provides real-time servo analytics
• IP67 waterproof rating for all-weather reliability
• CNC-machined aluminum case improves strength and cooling
• Hardened steel gears for long-lasting durability
• High-voltage capable from 4.0V to 8.4V (2S LiPo ready)

Specifications

• Application: 1/10-1/8
• Input Voltage: 4.0-8.4V
• Operating Speed @ 6.0V: 0.12 sec/60°
• Operating Speed @ 7.4V: 0.10 sec/60°
• Dynamic Torque @ 6.0V: 563oz-in (40.54Kg-cm)
• Dynamic Torque @ 7.4V: 563oz-in (40.54Kg-cm)
• Gear Material: Metal
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.58x0.79x1.54in (40x20x39mm)
• Weight: 3.18oz (90g)

Includes

• (1) DB951WP High Speed Waterproof Brushless Servo (High Voltage)

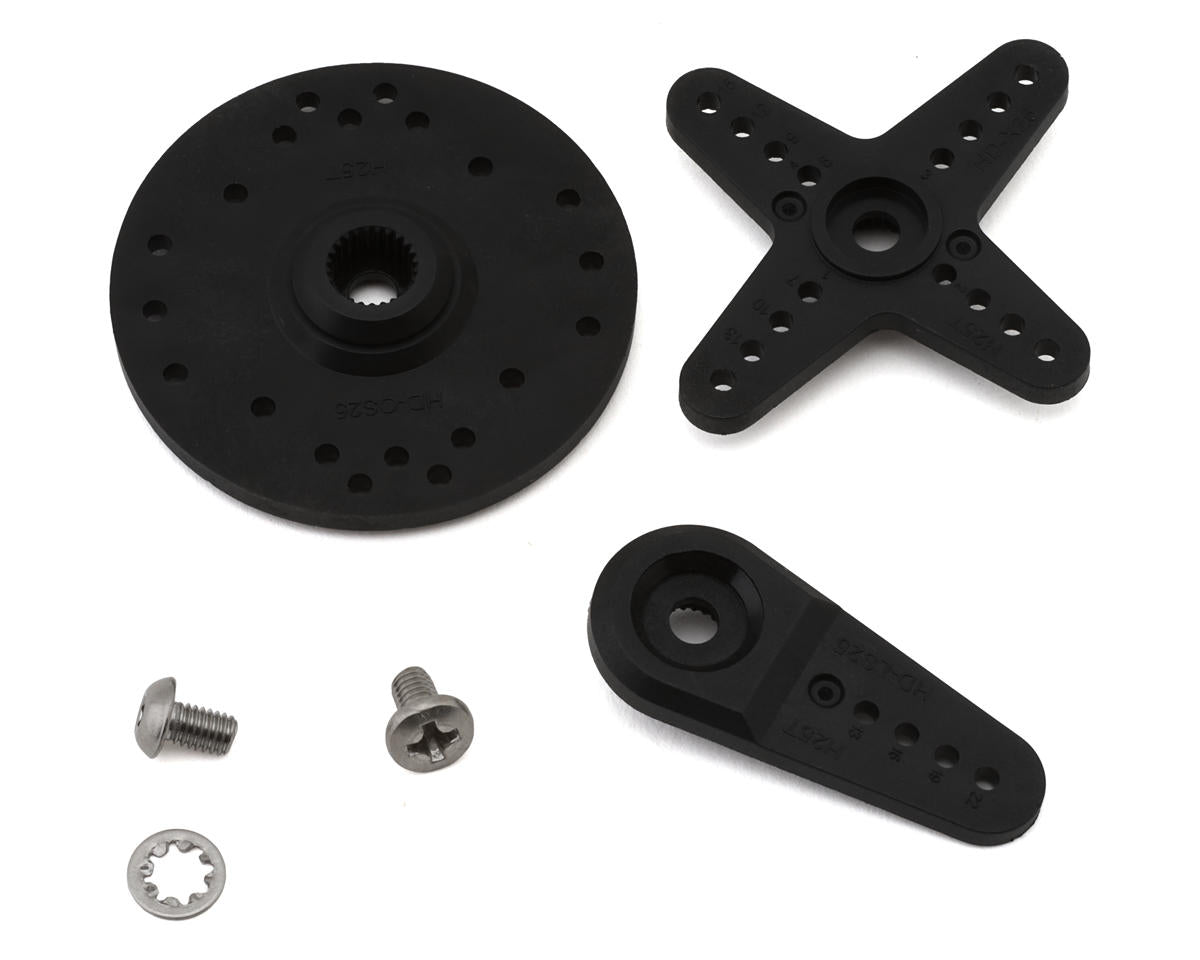

• Composite Servo Horns & Accessories
