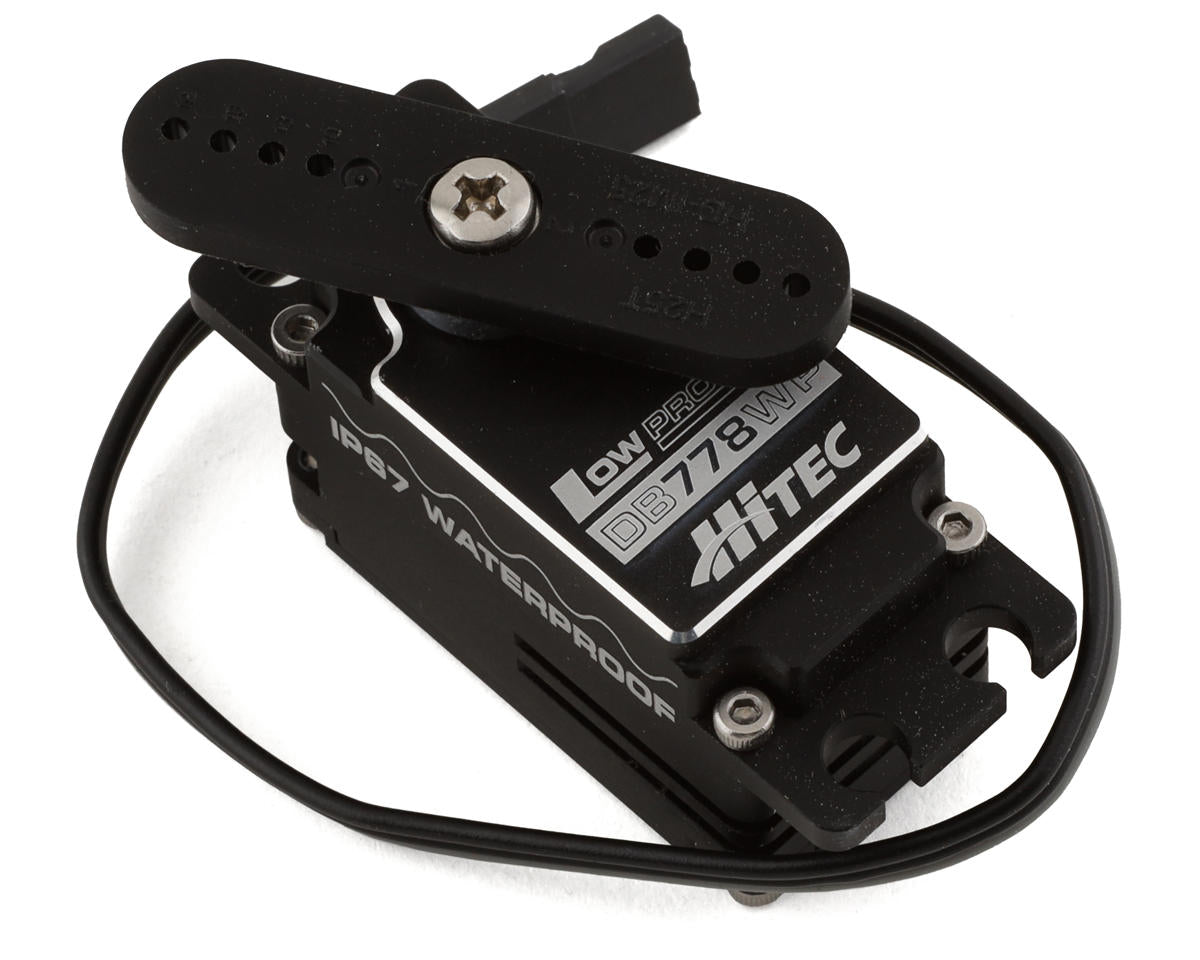

Hitec DB778WP 32-Bit MCU Low Profile Ultra Torque Waterproof Servo

The Hitec DB778WP is a low-profile, high-voltage waterproof servo with a brushless motor, hardened steel gears, an aluminum case, and 32-bit digital control. Its IP-67 rating and high torque output support demanding RC applications, including 1/10th 2WD and 4WD off-road buggies and touring cars.

Features

• Operating voltage range: 3.7V ~ 8.4V
• Ultra-efficient brushless motor
• Hardened steel gears
• All-aluminum case
• IP-67 waterproof rated
• High-response, high-resolution circuitry
• 32-bit MCU technology with 4096 resolution
• Smart Sense Technology for servo analytics
• Full programmability with DPC11 or HFP-30, sold separately
• H25T industry-standard output spline

Specifications

• Speed: 0.08 @ 8.4V
• Maximum torque: 283.56 oz. / in. @ 8.4V (20.41 kg.cm @ 8.4V)
• Current draw at idle: 28mA @ 7.4V
• No-load operating current draw: 600mA @ 7.4V
• Stall current draw: 5,500mA @ 7.4V
• Dead band width: 1usec
• Dimensions: 41.0 x 21.0 x 26.5mm
• Weight: 68.0g
• Circuit type: 32bit programmable digital
• Gear material: 5 steel gears
• Output shaft: H25T
• Case material: Aluminum
• Dust / water resistance: IP-67 rated
• Connector gauge / strand count: 20AWG

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty, subject to the warranty terms.
