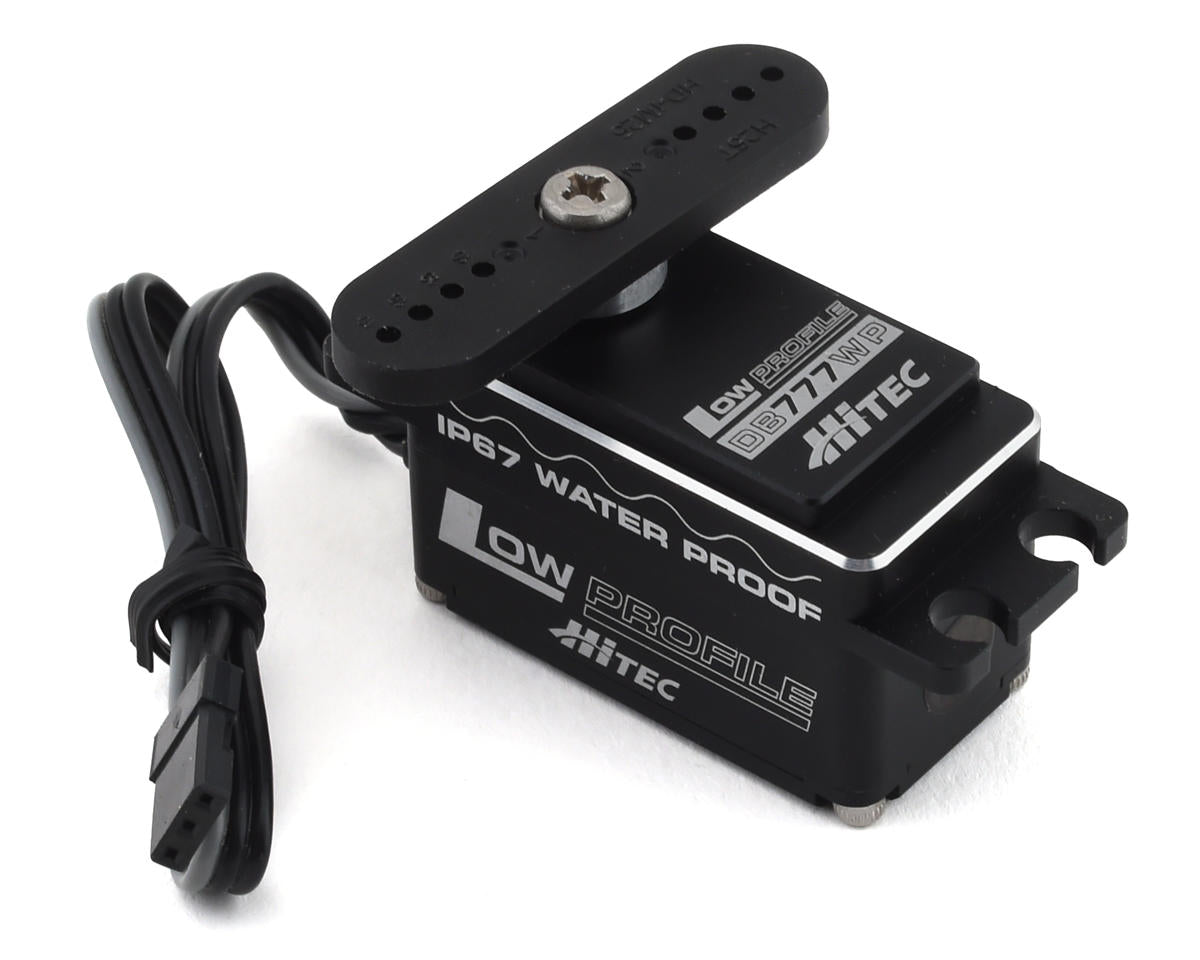

Hitec DB777WP D-Series 32-Bit MCU Low Profile Waterproof Servo (High Voltage)

The Hitec DB777WP D-Series servo combines a low-profile design with a full-metal, IP-67 rated waterproof case. Its 32-bit MCU, 12-bit ADC and programmable digital circuitry provide high-resolution control for 1/10 buggy and touring car applications.

Features

• High-voltage operation from 6.0V ~ 7.4V DC
• 32-bit programmable digital circuit
• 12-bit ADC and patented Smart Sense technology
• Brushless motor
• Metal gears and aluminum case material
• IP-67 rated dust and water resistance
• H25T output shaft
• 20AWG / 80 strand-count connector

Specifications

• Speed: 0.08 ~ 0.06 second @ 60°
• Maximum torque: 111 ~ 153 oz./in. or 8.0 ~ 11.0 kg./cm.
• Current draw at idle: 35mA/40mA
• No-load operating current draw: 250mA/350mA
• Stall current draw: 3500mA/4500mA
• Dead band width: 1usec
• Dimensions: 1.61 x 0.83 x 1.04 in. / 41.0 x 21.0 x 26.5
• Weight: 2.40 ounces / 68.0 grams
• Bearing type: Brushless

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. will repair or replace defective equipment covered by this warranty.
