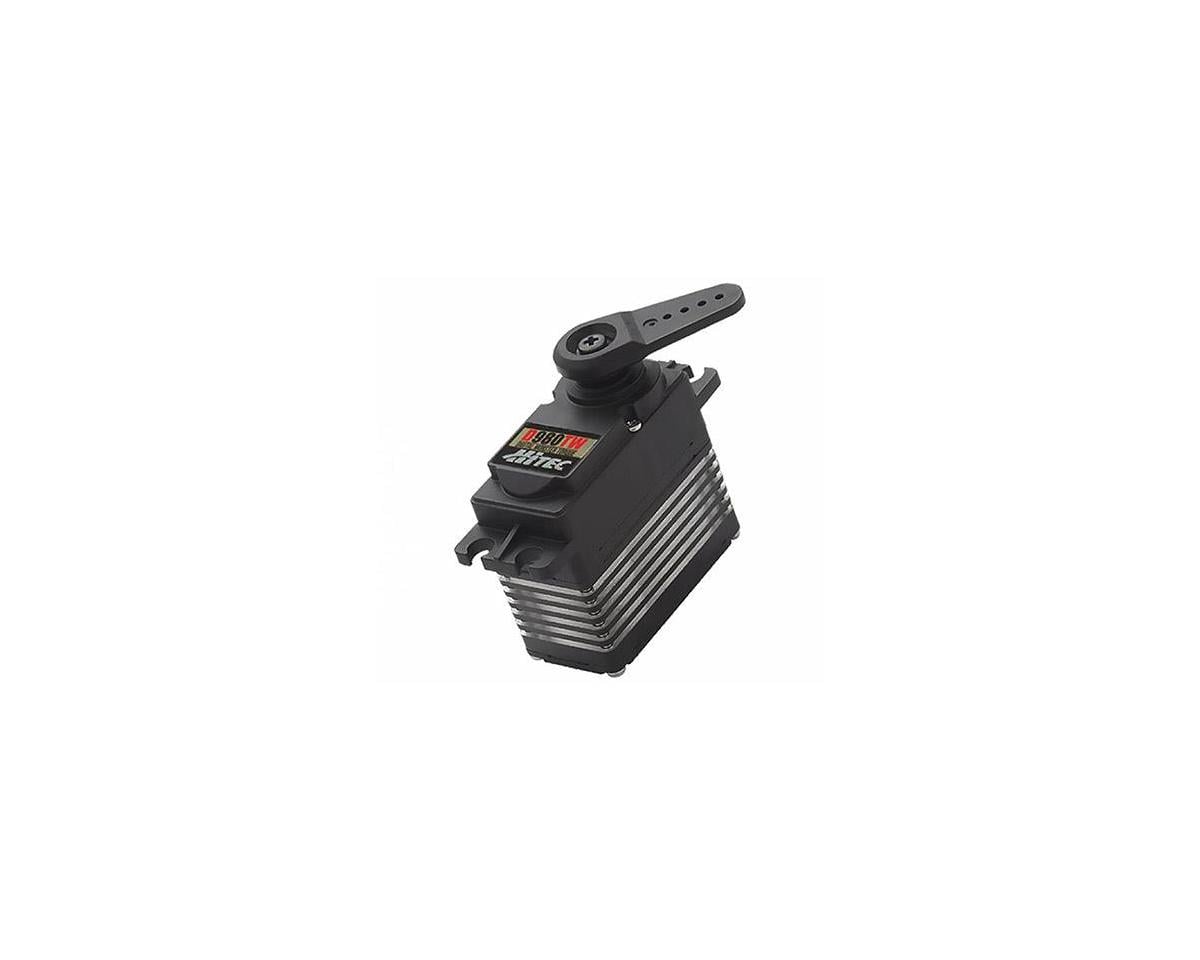

Hitec D980TW D-Series Monster Torque Digital Servo (High Voltage)

The Hitec D980TW D-Series Monster Torque Digital Servo combines a titanium gear train with high-resolution response, a 32-bit MCU, and 12-bit ADC circuitry. Its 4.8 ~ 8.4 voltage range supports use with common battery chemistries without adapters or regulators.

Features

• Programmable PWM digital amplifier
• 32-bit MCU with 12-bit ADC circuitry
• 4096 resolution
• 1M cycle long-life potentiometer
• Dual ball bearing supported output shaft
• 25-tooth output spline with 3mm hex screw
• Coreless metal brush motor
• Nylon reinforced plastic upper and lower case
• Diamond cut aluminum heat sink center case
• Dust resistant and splash proof case

Programmable Functions

• End point adjustments
• Direction
• Fail safe
• Dead band
• Speed (slower)
• Soft start
• Rate
• Overload protection
• Data save / load
• Program reset

Specifications

• Motor Type: Coreless
• Bearing Type: Dual Ball Bearing
• Operating Voltage: 4.8 ~ 8.4 Volts DC
• Speed: @6.0V: .21sec/60; @7.4V: .17sec/60
• Torque: @6.0V: 500 oz-in; @7.4V: 611 oz-in
• Size: 43.8x22.4x40.0mm (1.72 x 0.88 x 1.57)
• Weight: 79.00g

Includes

• (1) D-980TW Wide Voltage Monster Torque Servo
• (1) 0.98" (25mm) Single Arm servo horn
• (1) 1.2" (31.5mm) Single Arm servo horn
• (1) 1.7" (44mm) Double Arm servo horn
• (1) 2.2" (55mm) Single Arm servo horn
• (1) 2.8" (72mm) Double Arm servo horn
• (1) 4.2" (108mm) Double Arm servo horn
• (1) 1.5" (38mm) 4-Point Horn
• (1) 1.4" (36mm) Round Horn
• (4) Grommets, Eylets and Mounting Screws
• (1) Metal Adapter Ring, extra Horn Screw

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty.
