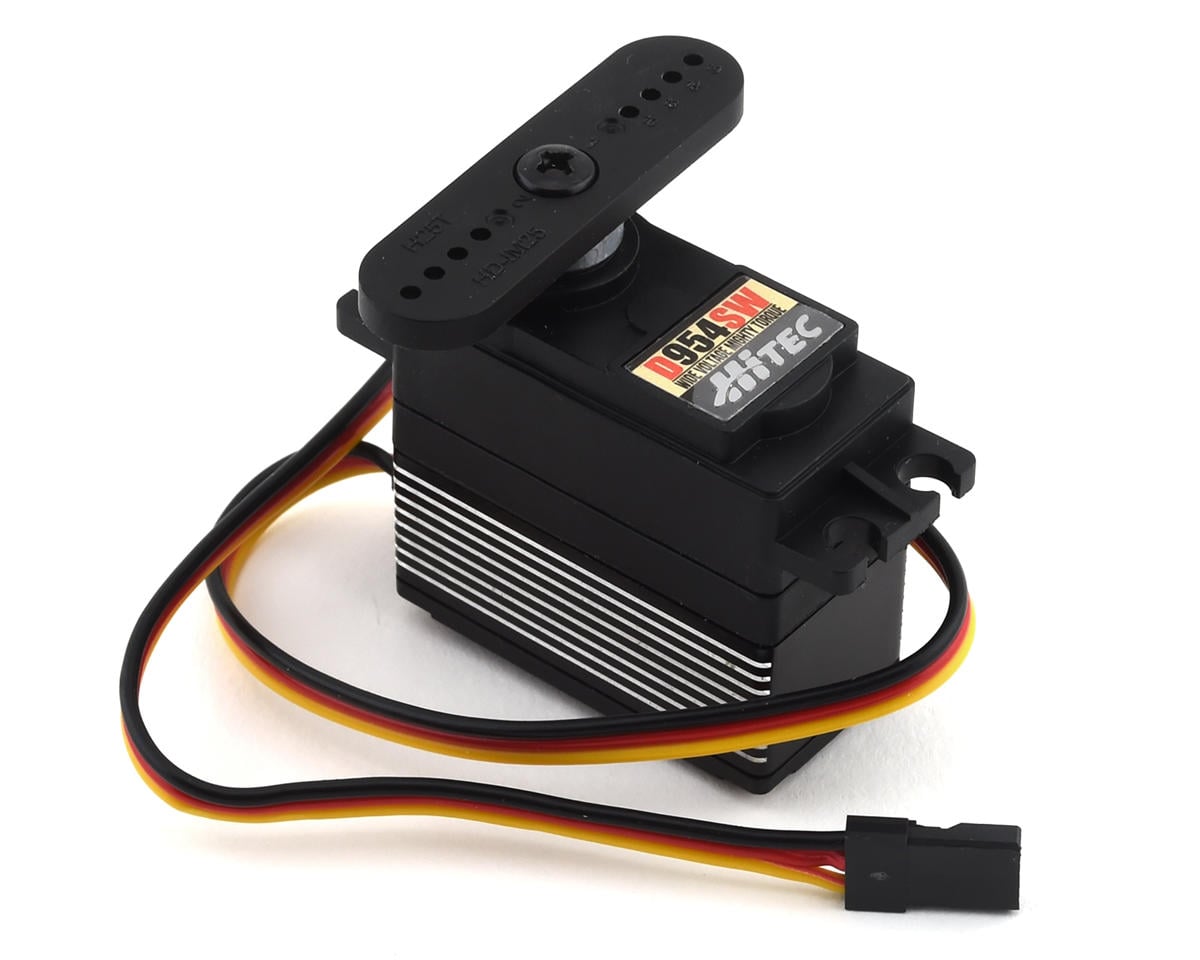

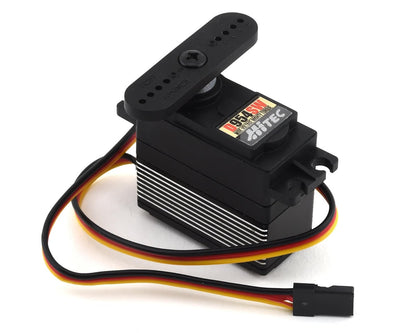

Hitec D954SW High Torque Steel Gear Servo (High Voltage)

The Hitec D954SW High Torque Steel Gear Servo features a 32-bit programmable digital circuit, 12-bit ADC circuitry, 4096 resolution, and Smart Sense engineering for rapid, high-resolution response. Its steel alloy gear train, dual ball-bearing supported output shaft, coreless metal brush motor, and plastic/aluminum case support demanding radio control applications.

Features

• Programmable PWM digital amplifier
• 32-bit MCU with 12-bit ADC circuitry
• 4096 resolution
• 1M cycle long-life potentiometer
• Wide operating voltage
• Dual ball-bearing supported output shaft
• 25-tooth output spline
• Coreless metal brush motor
• Nylon-reinforced plastic upper and lower case
• Diamond-cut aluminum heat sink center case
• Dust-resistant and splash-proof case

Programmable Features

• End point adjustments
• Direction
• Fail safe
• Dead band
• Speed (slower)
• Soft start
• Rate
• Overload protection
• Data save/load
• Program reset

Specifications

• Operating Voltage Range: 4.8V ~ 7.4V DC
• Speed: 0.19 ~ 0.12 second @ 60°
• Maximum Torque: 251 ~ 405 oz./in. (18.0 ~ 29.0 kg./cm.)
• Current Draw at Idle: 30 mA
• No Load Operating Current Draw: 500 mA
• Stall Current Draw: 5,200 mA
• Dead Band Width: 1 µs
• Dimensions: 1.57 x 0.78 x 1.46 inches; 40.0 x 20.0 x 37.0 mm
• Weight: 2.40 ounces; 68.0 grams
• Circuit Type: 32bit programmable digital
• Motor Type: Coreless metal brush
• Gear Material: MK 1st gear and 3 steel alloy gears
• Bearing Type: Dual ball bearing
• Output Shaft: H25T
• Case Material: Plastic/aluminum
• Dust/Water Resistance: Splash proof
• Connector Gauge/Strand Count: 20/80 AWG

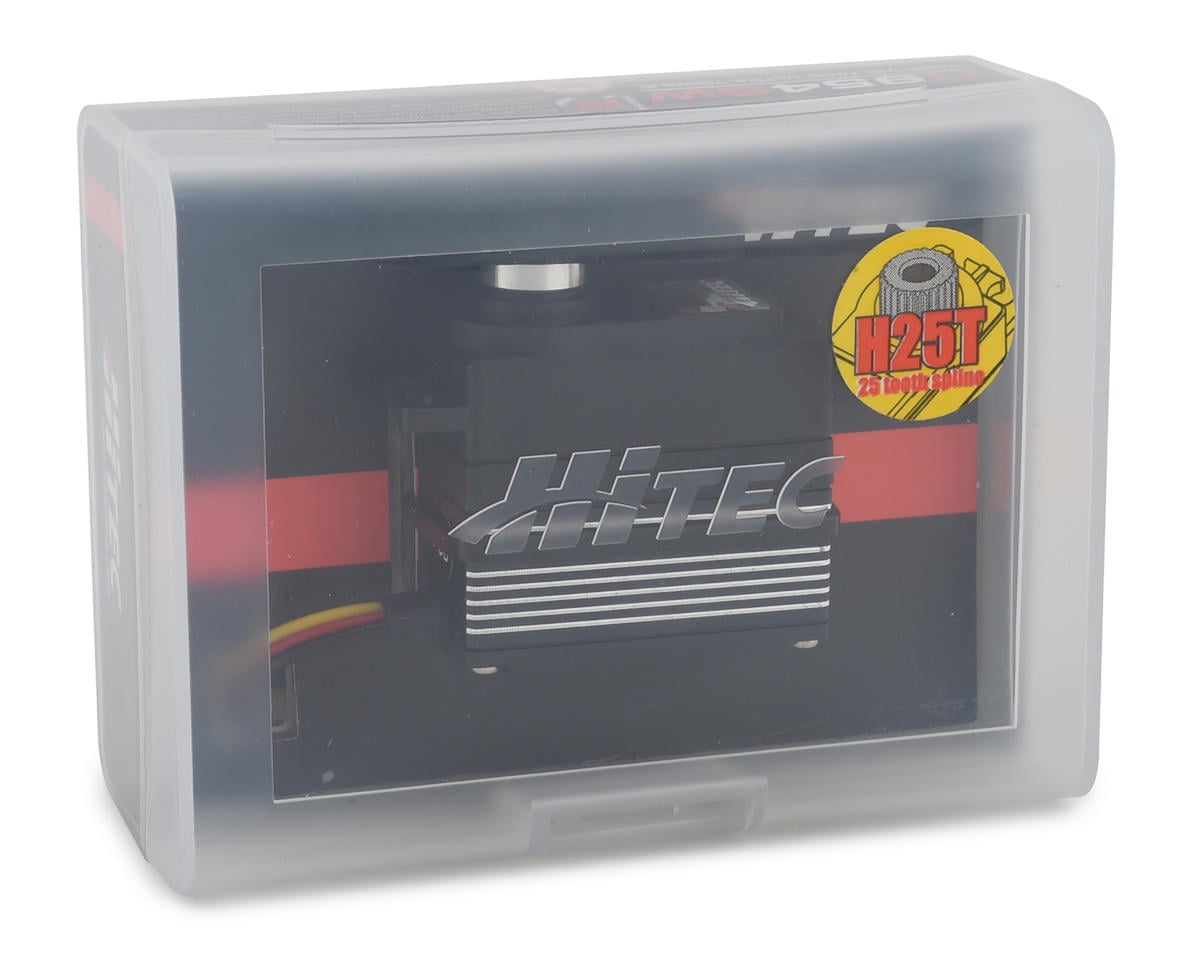

Includes

• 1 D954SW High Torque Steel Gear Servo
• 3 steel alloy gear set
• Metal / Karbonite 1st gear set
• Plastic/aluminum case set
• Applicable horns and screws

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty; otherwise, the purchaser and/or consumer is responsible for repair or replacement charges.
