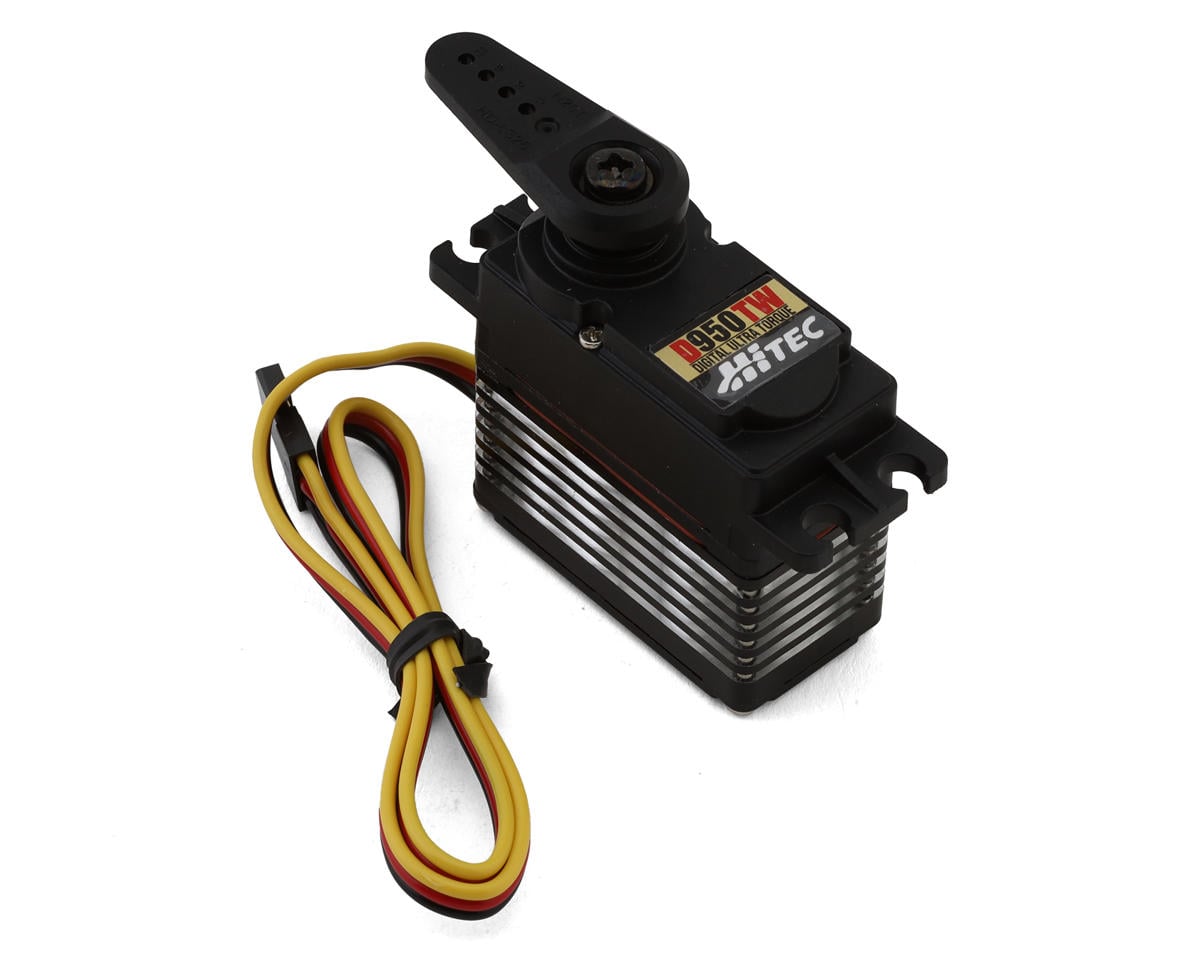

Hitec D950TW Titanium Geared Brushless Servo (HV)

The Hitec D950TW Titanium Geared Brushless Servo combines a brushless motor with a 25T output spline, dual ball bearing-supported output shaft, and a dust-resistant, splash-proof case. Its diamond-cut aluminum heat sink center case supports operation across the listed voltage range of 4.8 to 7.4V DC.

Features

• Wide operating voltage: 4.8 ~ 7.4 Volts DC
• Dual ball bearing-supported output shaft
• 25-tooth output spline
• Brushless motor
• Nylon reinforced plastic upper and lower case
• Diamond-cut aluminum heat sink center case
• Dust resistant and splash proof case

Specifications

• Speed at 4.8V: 0.23sec/60°
• Speed at 6.0V: 0.17sec/60°
• Speed at 7.4V: 0.14sec/60°
• Torque at 4.8V: 292oz-in (21kg-cm)
• Torque at 6.0V: 403oz-in (29kg-cm)
• Torque at 7.4V: 486oz-in (35kg-cm)
• Operating voltage: 6.0V-7.4V
• Dimensions (LxWxH): 1.57x0.79x1.50" (40x20x38mm)
• Weight: 68g (2.4oz)
• Operating spline: 25T

Includes

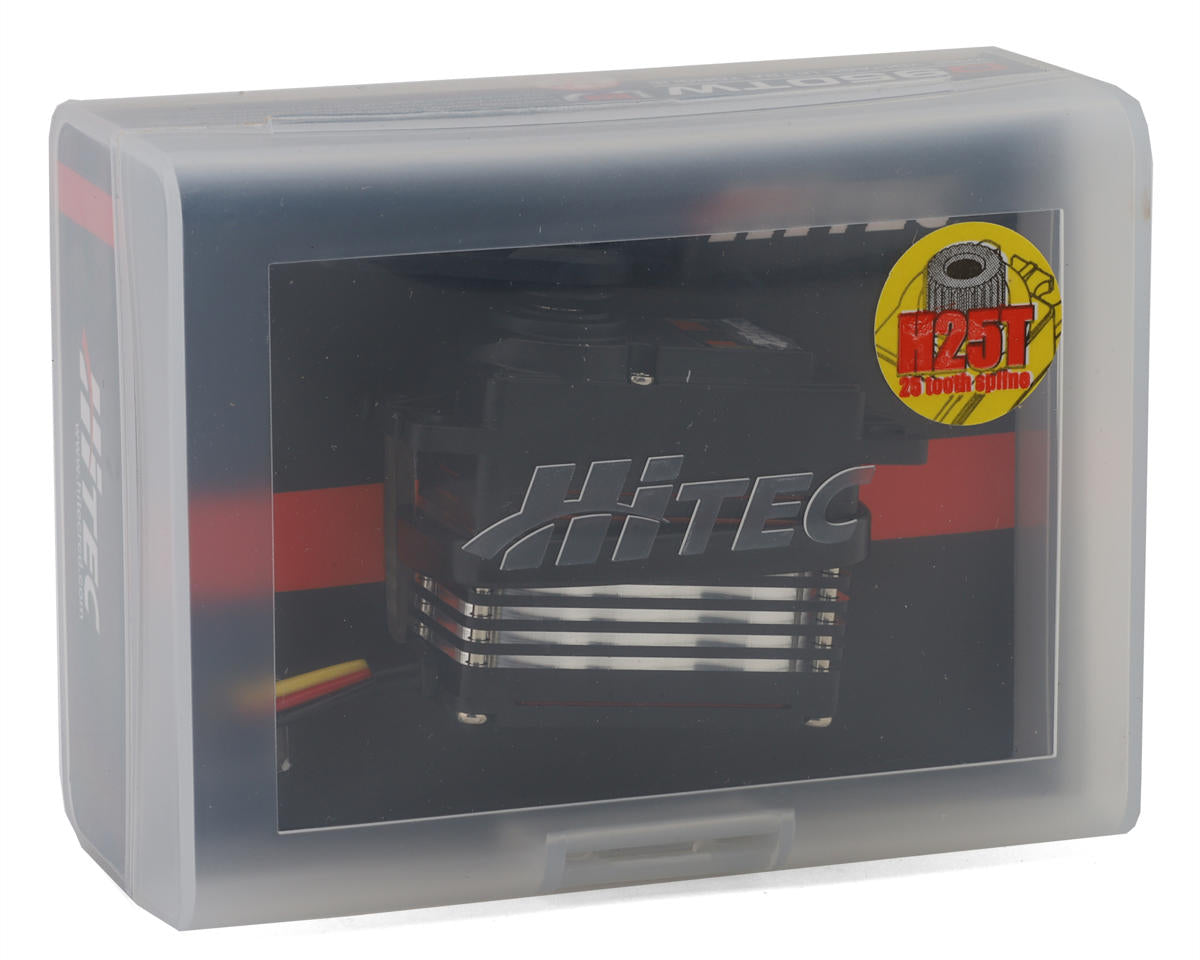

• (1) D950TW Titanium Geared Brushless Servo
