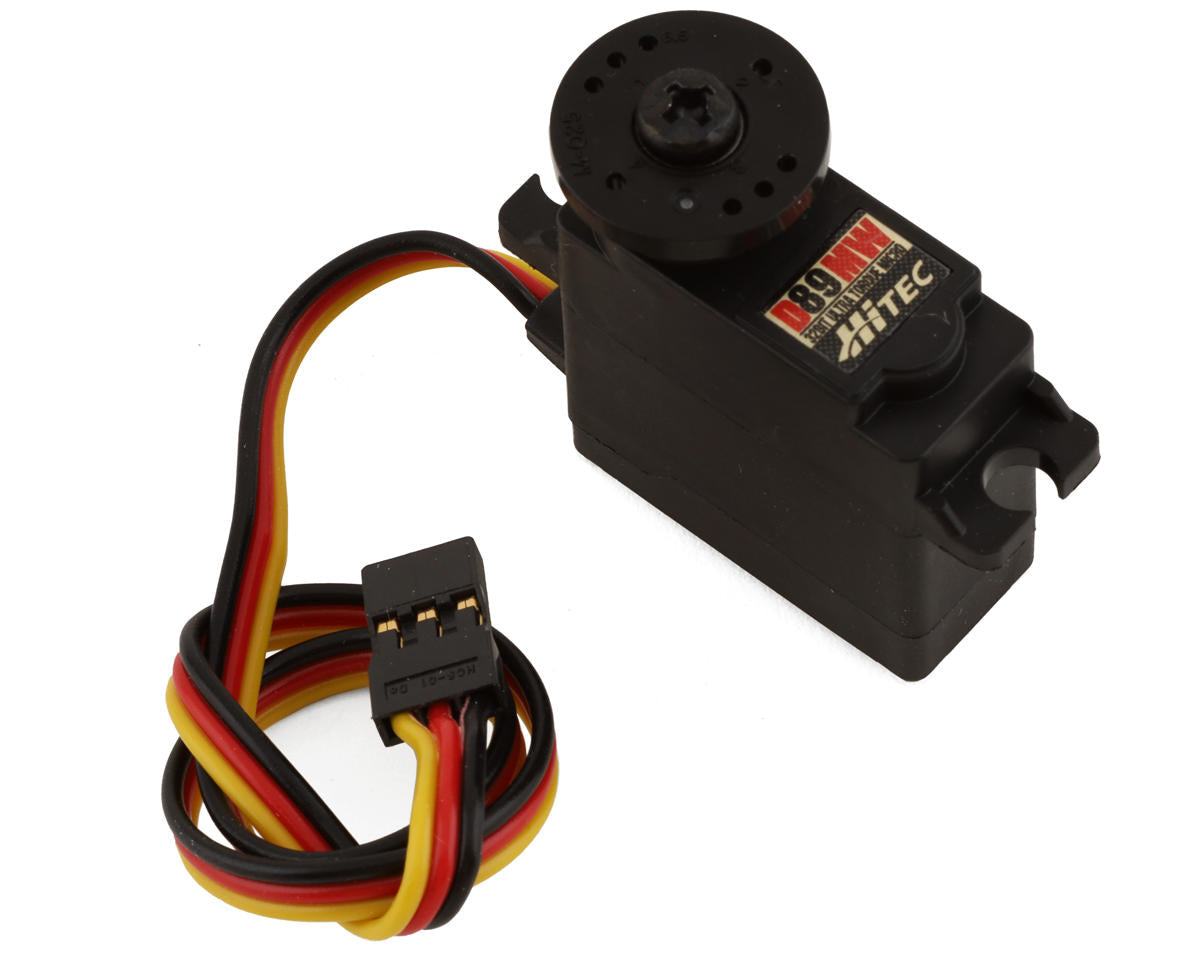

Hitec D89MW 32-Bit Digital Servo (High Voltage)

The Hitec D89MW is a high-voltage, 32-bit programmable digital mini servo with a coreless metal-brush motor, five metal gears, and dual ball bearings.

Performance Specifications

• Operating Voltage Range: 4.8V ~ 7.4V DC
• Speed (Second @ 60°): 0.17 ~ 0.11
• Maximum Torque Range: 74 ~ 118oz/in (5.3 ~ 8.5kg/cm)
• Current Draw at Idle: 30mA
• No Load Operating Current Draw: 300mA
• Stall Current Draw: 2,900mA

Physical Specifications

• Dimensions (LxWxH): 1.14x0.51x1.18in. (29.0x13.0x30.0mm)
• Weight: 0.88oz. (25.0g)
• Circuit Type: 32bit Programmable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: 5 Metal Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft: 25 / 6mm Ø
• Case Material: Plastic

Warranty

Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall repair or replace defective equipment covered by this warranty.
