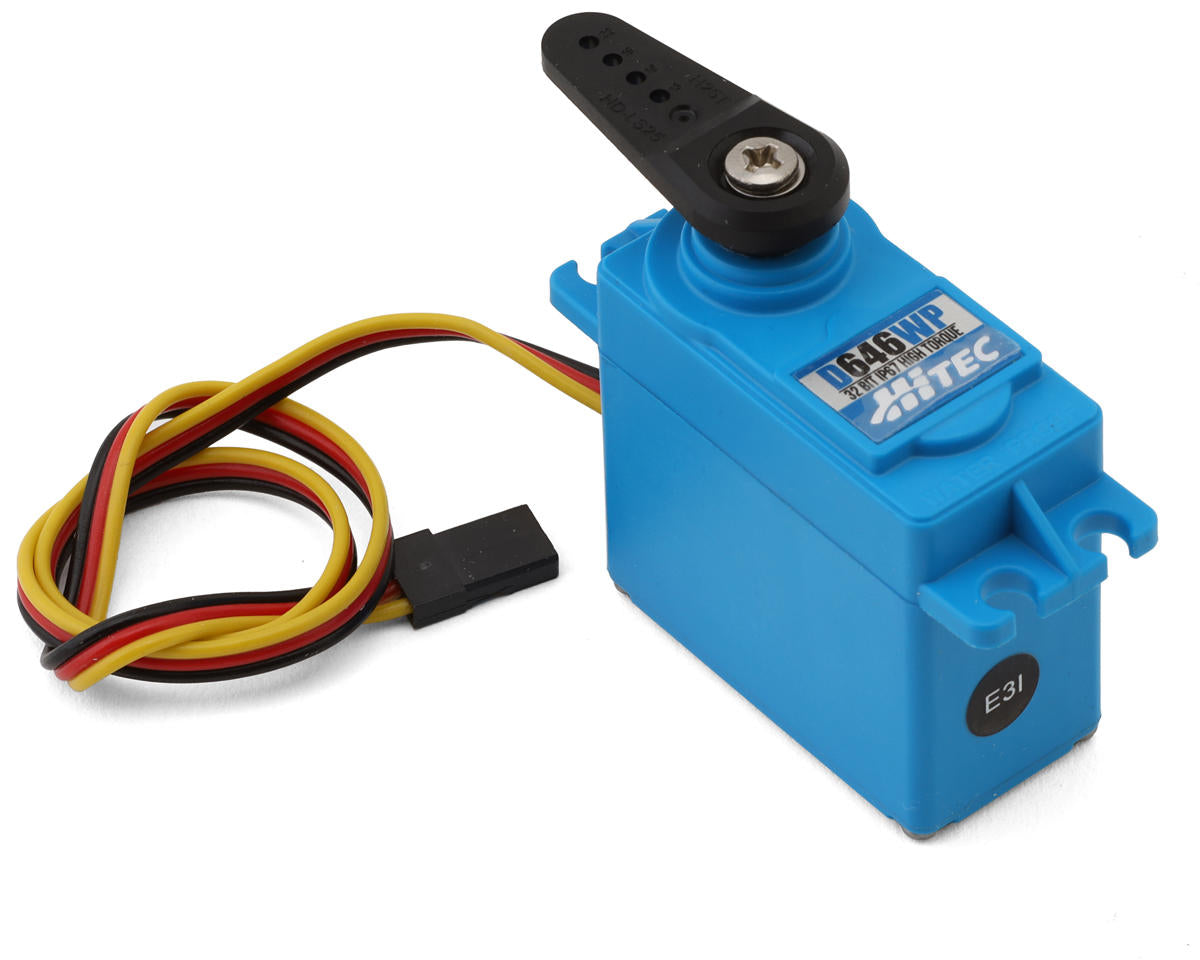

Hitec D646WP Standard Digital High Torque Waterproof Metal Gear Servo

The Hitec D646WP is a standard digital servo with IP67 water resistance, high-strength metal gears, and a dual ball-bearing-supported output shaft. Programmable settings include EPA (End Point Adjustment), speed, and dead band; a Hitec servo programmer sold separately is required for these features.

Features

• IP67 waterproof rating
• High-strength metal gears
• Dual ball-bearing-supported output shaft
• Programmable features

Specifications

• Operating Voltage: 4.8-7.4V
• Speed: @4.8V: 0.24sec/60°; @6.0V: 0.19sec/60°; @7.4V: 0.16sec/60°
• Torque: @4.8V: 7.5kg-cm (104.72oz-in); @6.0V: 9.6kg-cm (134.05oz-in); @7.4V: 11.6kg-cm (161.98oz-in)
• Weight: 61.0g (2.15oz)
• Dimensions: 41.8x21x40mm (1.65x0.83x1.57in)
• Spline: 25T
• Motor Type: Brushed
• Water Resistance: IP67

Programmable features require the Hitec servo programmer sold separately, HRC44427 or HRC44429.
