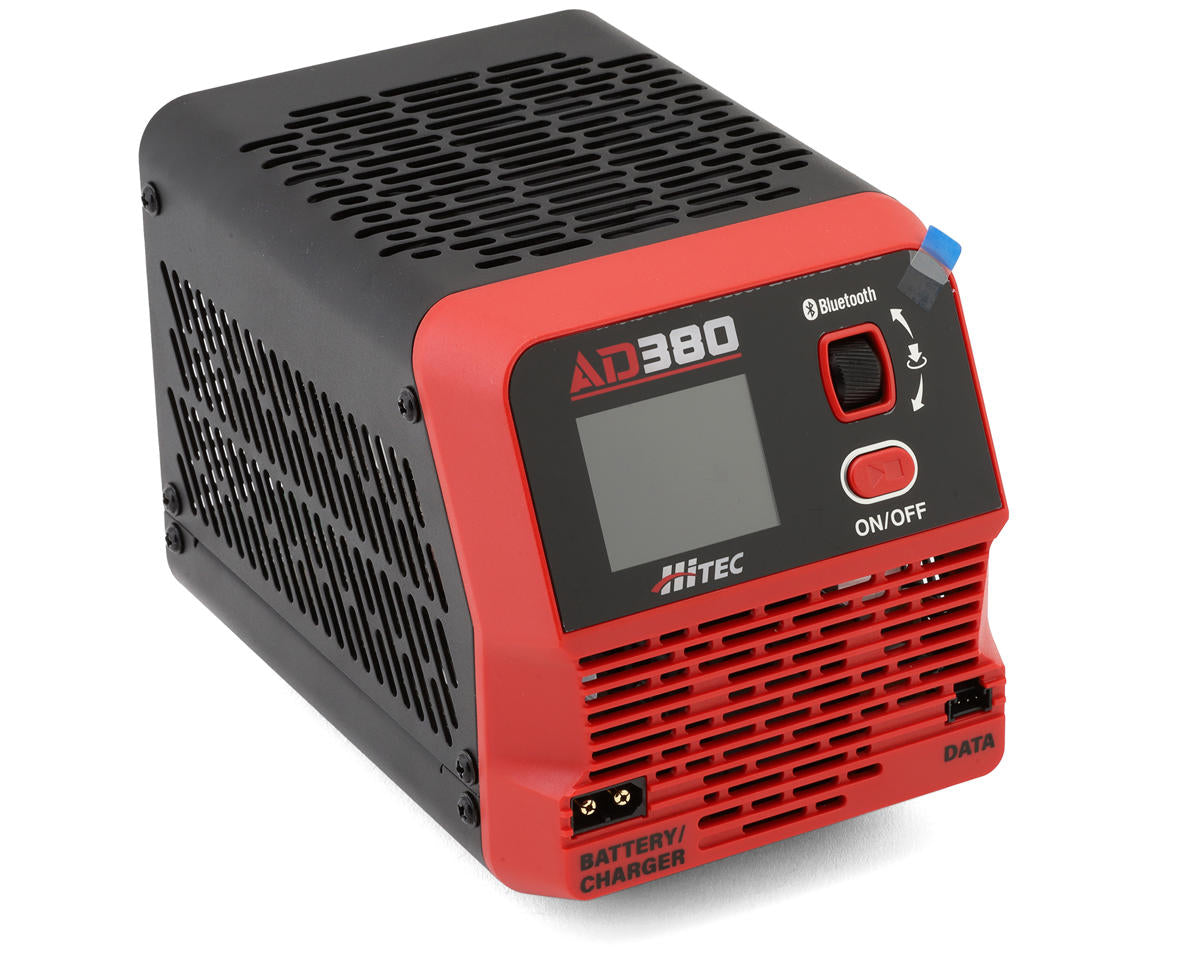

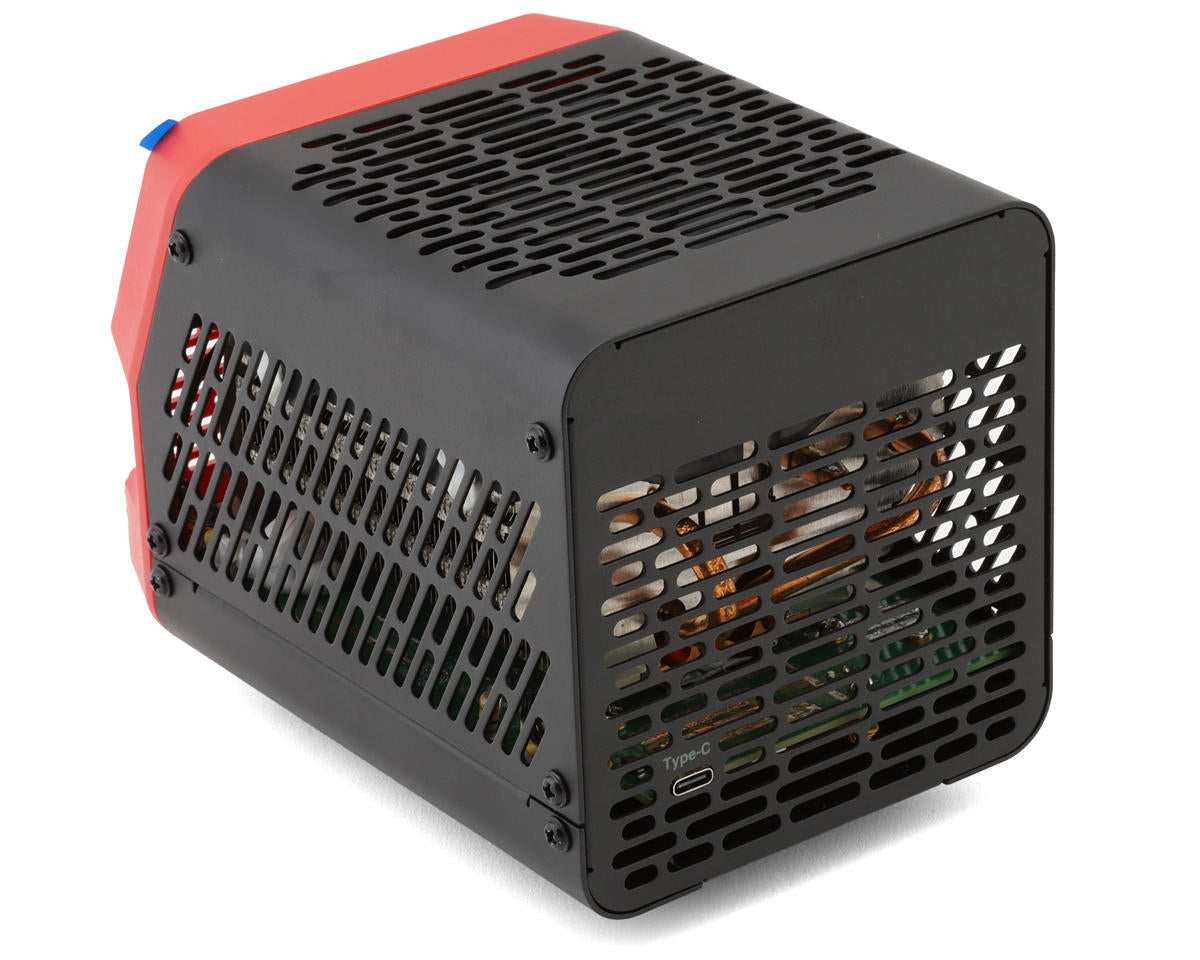

Hitec AD380 DC Battery Discharger & Analyzer (6S/40A/380W)

The Hitec AD380 DC Battery Discharger and Analyzer provides controlled battery testing, analysis, and storage preparation for packs up to 6S. It discharges at up to 40A with a maximum power of 380W and supports LiPo, LiHV, and NiMH batteries.

Features

• Real-time battery voltage display
• Tracks discharged capacity and current
• Evaluates battery cell resistance
• Compatible with Android and iOS apps
• PC interface for detailed analysis
• Four discharge modes: Constant Current (CC), Constant Resistance (CR), Constant Power (CP), and Constant Voltage (CV)
• Helps optimize battery performance for storage

Specifications

• Input Voltage: 3-30V (DC)
• Main Port: 5.9-30V
• External Power Supply: 3-30V
• Discharge Power: 380W
• Discharge Current: 0.3-40A
• Connector Interface: XT60
• CC Constant Current: 0.3-40A
• CR Constant Resistance: 1-100 Ohms
• CP Constant Power: 1-380W
• CV Constant Voltage: 180W Maximum
• Storage Temperature: 14°-158°F (-10° to 70°C)
• Working Environment Temperature: 32°-104°F (0°-40°C)

Includes

• AD380 DC Battery Discharger and Analyzer

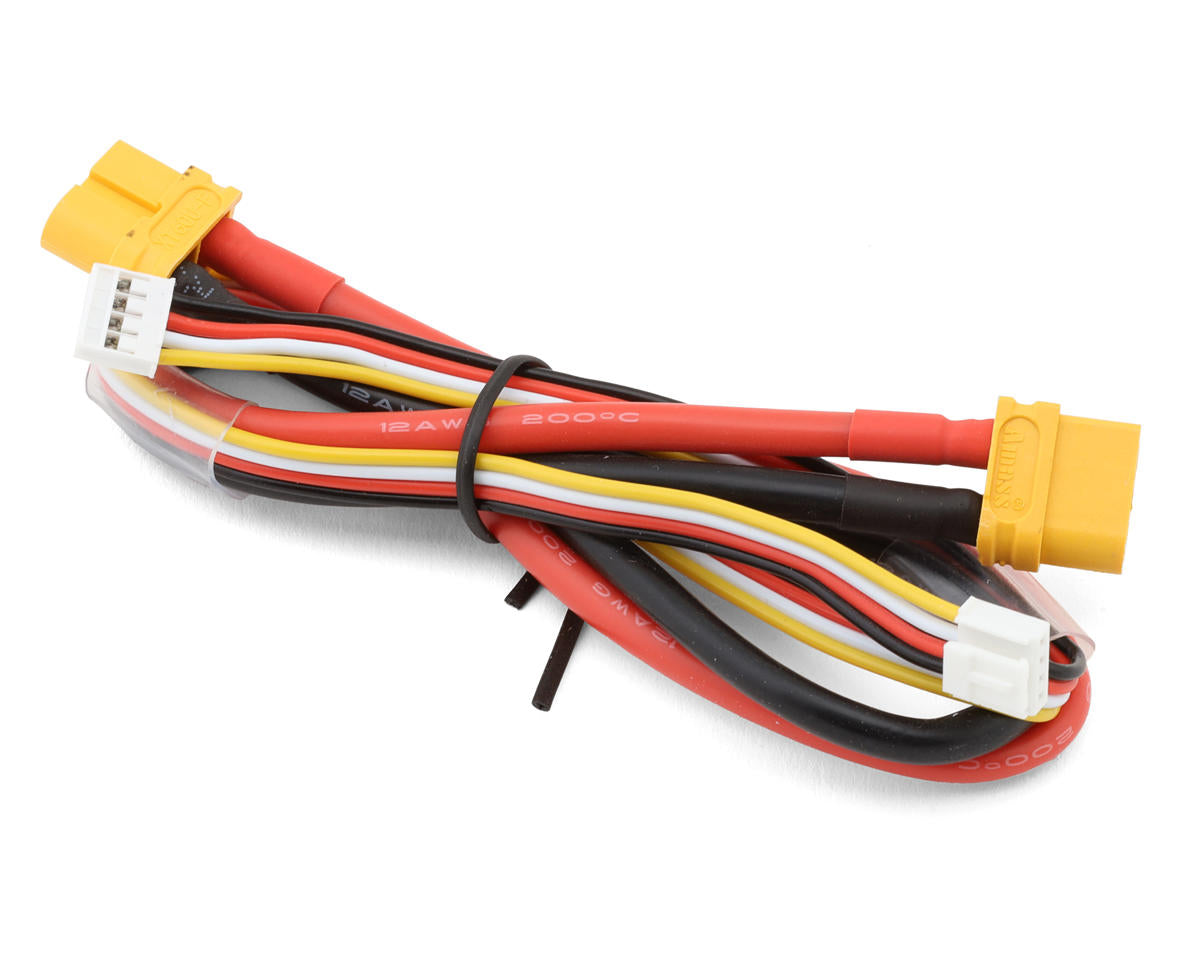

• XT60 Cable
• Data Cable
• Product Manual

Important Notes

• To use the charge manager features through a PC connection, pair the AD380 with Hitec's RDX2 800 or RDX2 1000 Charger (HRC44311 or HRC44401, sold separately) using the supplied data cable.
• When the battery voltage is below 6V, power the AD380 through the Type-C port using a 3A adapter.
