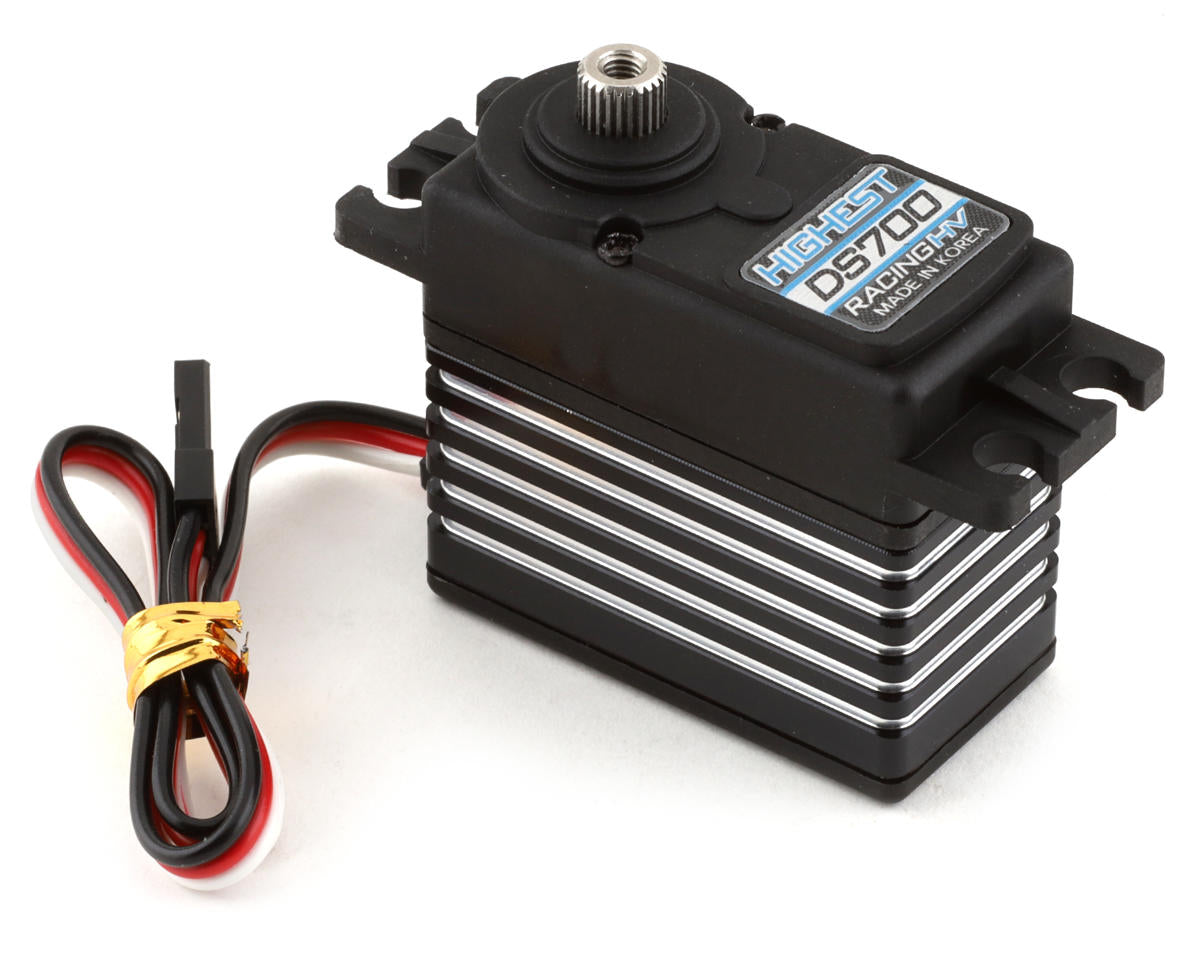

Highest RC DS700 "High Speed" Metal Gear Coreless Servo

The Highest RC DS700 “High Speed” Metal Gear Coreless Servo is designed for surface and air applications. Its full metal gear drivetrain, double ball bearing design, and coreless motor support precision and durability in a standard size case.

Features

• Full metal gears
• Standard size servo with aluminum center band
• High voltage capable
• Coreless design

Specifications

• Operating Voltage: 6.0-7.4V DC
• Speed: 6.0V: 0.08 sec/60°; 7.4V: 0.06 sec/60°
• Torque: 6.0V: 137.48oz-in (9.9kg-cm); 7.4V: 154.14oz-in (11.1kg-cm)
• Operating Temperature: 14-140° F (-10-60° C)
• Dimension: 1.55x0.78x1.51in (39.5x20.0x38.6mm)
• Weight: 2.16oz (61.3g)
