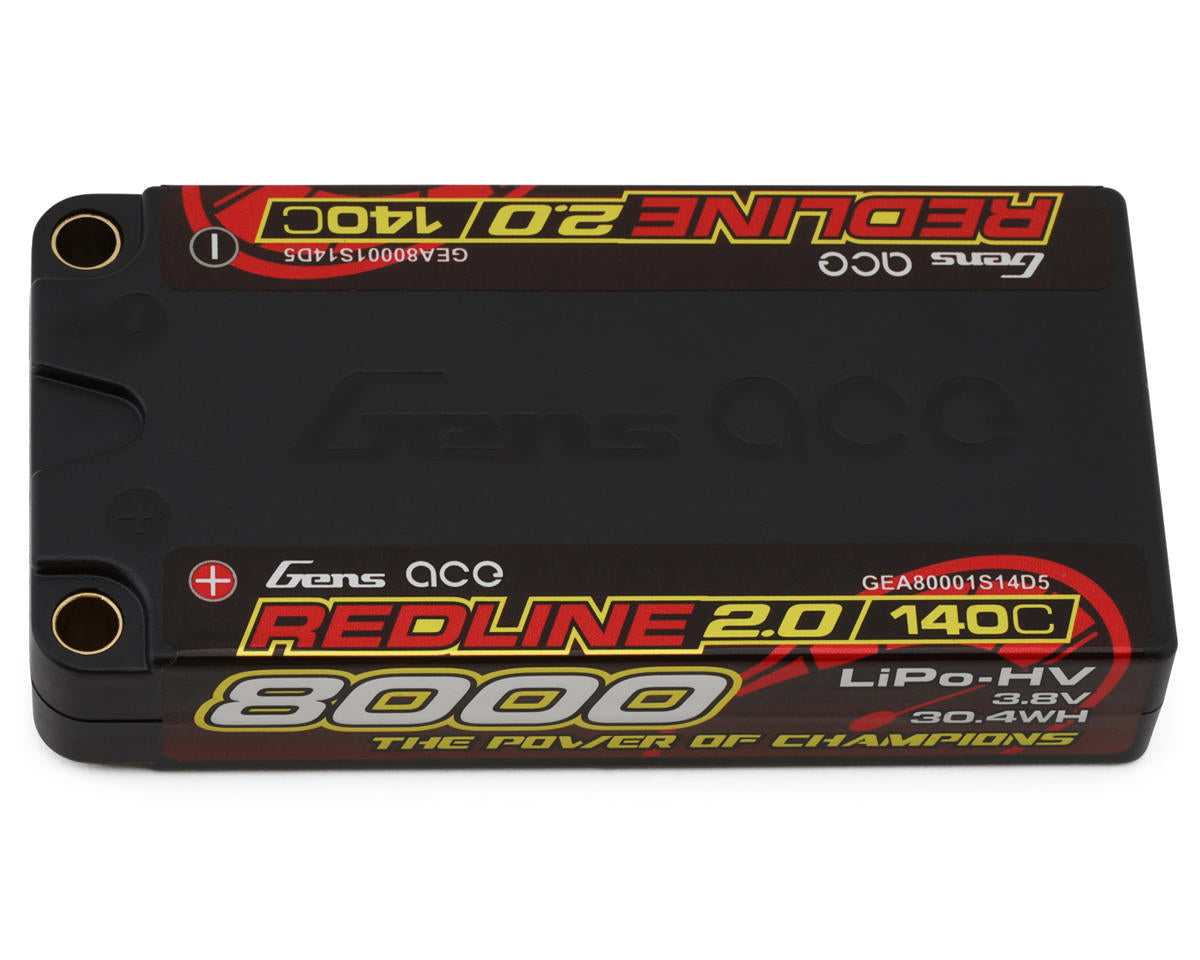

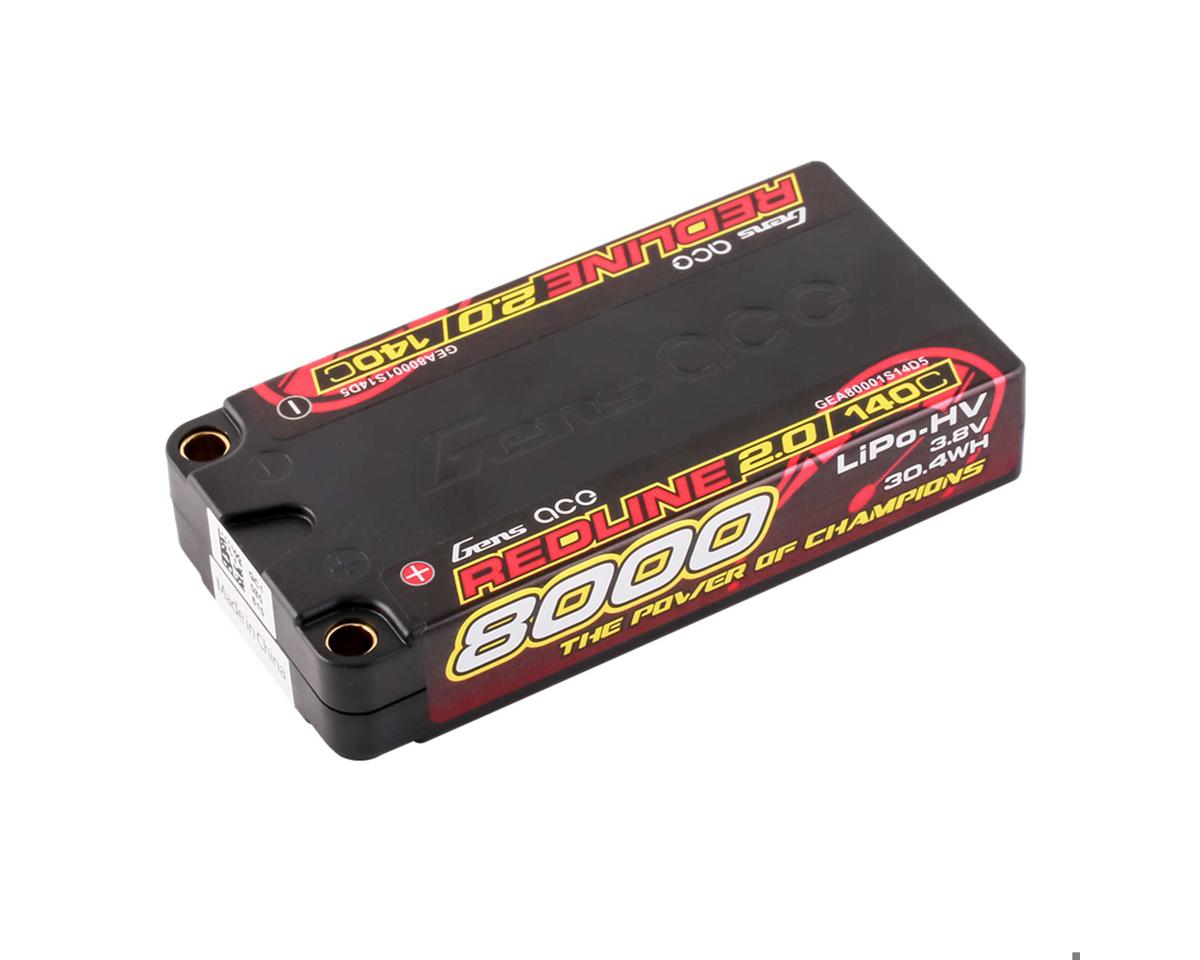

Gens Ace Redline 2.0 1S Shorty LiHV Battery 140C (3.8V/8000mAh) w/5mm Bullets

The Gens Ace Redline 2.0 1S Shorty LiHV Battery delivers 8000mAh capacity, a 140C continuous discharge rate, and a 3.8V nominal voltage in a low-profile shorty format. It features 5mm Bullet battery connectors and a 2mm Bullet balance connector.

Features

• Stable automatic stacking technology
• Matched single-cell capacity, voltage, resistance, and discharge curve
• High capacity and discharge rate
• Low-profile and lightweight design

Specifications

• Nominal Voltage: 3.8V (1S)
• Capacity: 8000mAh
• Maximum Charge Rate: 1C (8A)
• Continuous Discharge: 140C
• Cell Configuration: 1S2P
• Watt Hours: 30.4Wh

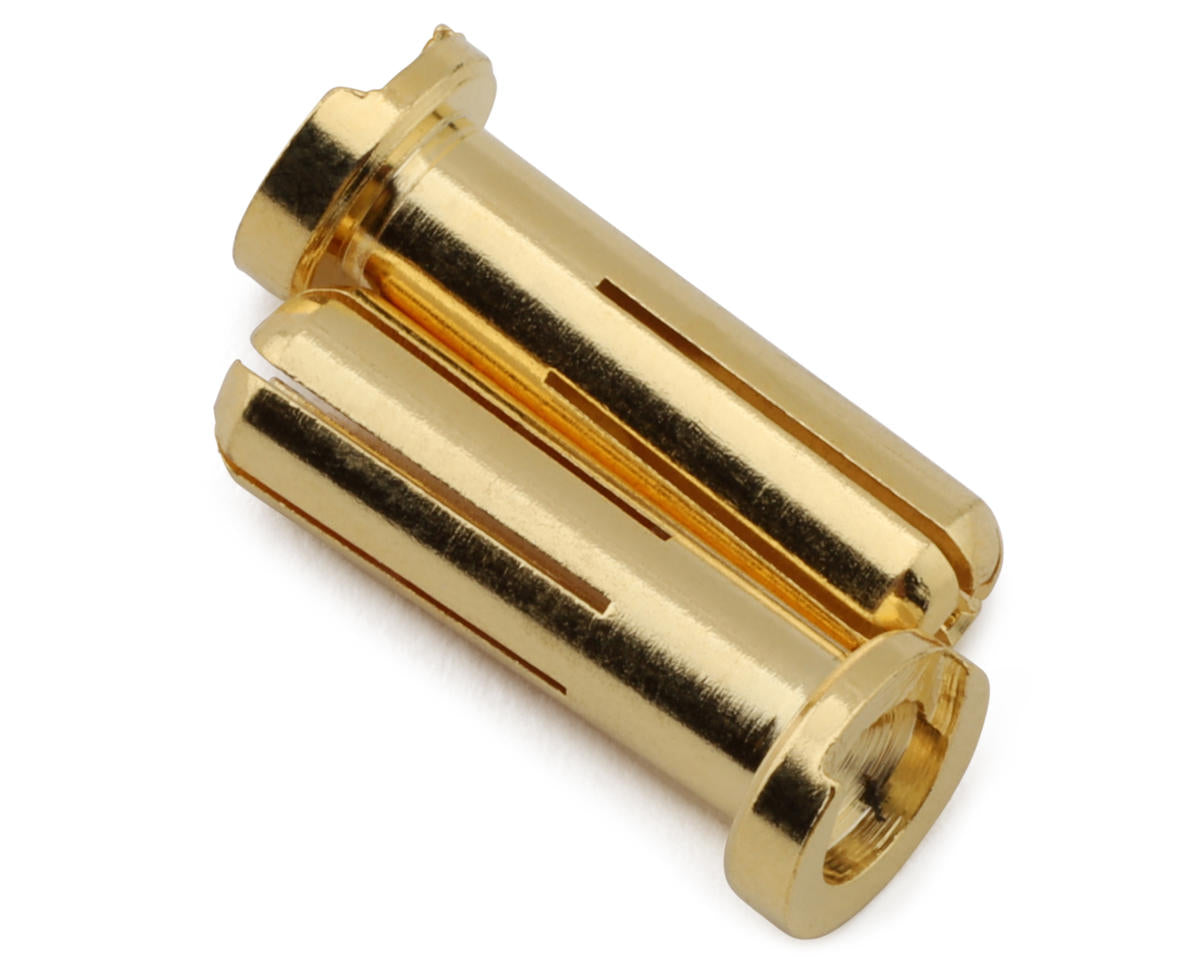

• Battery Connector: 5mm Bullet
• Balance Connector: 2mm Bullet
• Dimensions (LxWxH): 3.66x1.85x0.73in (93x47x18.5mm)
• Weight: 5.15oz (146g)

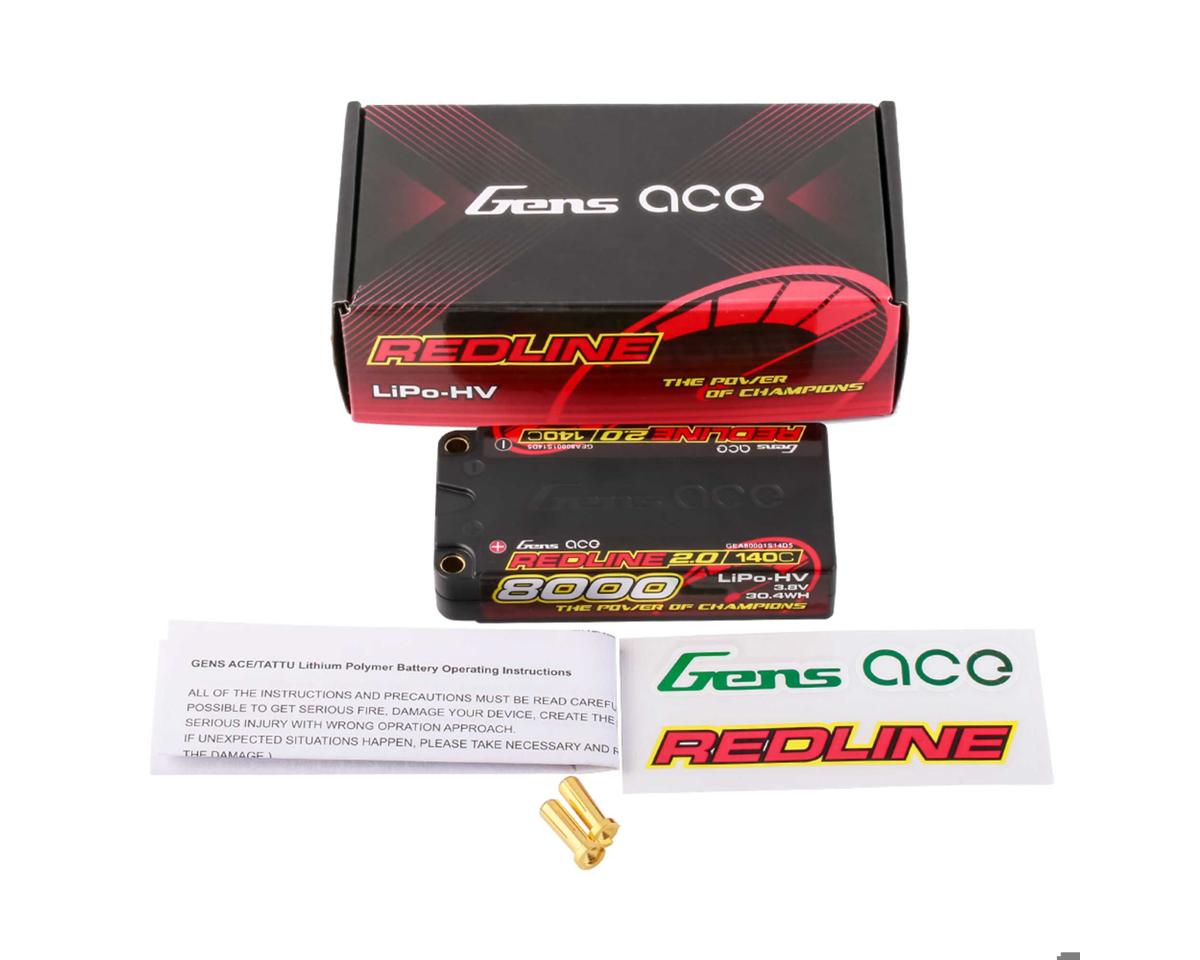

Included

• (1) Redline 1S Shorty LiHV Battery 140C (3.8V/8000mAh) w/5mm Bullets

Lithium Polymer Safety

• Use a Li-Poly specific charger and always balance charge the battery.
• Do not leave the battery unattended while charging or leave it in your model when charging.
• Always use a LiPo Safe charging bag or box.
• Do not over-discharge or over-charge the battery. Discharging capacity should not exceed 80% of the pack's maximum capacity after full charging.
• For the first 5 cycles, fully charge a new battery and discharge it only 50%.
• Monitor race time or set a low-voltage warning on the ESC. End voltage cannot be lower than 3.2V per cell.
• Do not expose the battery to sunshine or store or charge it above 35°C or in a closed car.
• If the battery becomes hot during charging, discharging, or racing, allow it to cool completely before inspection and recharging.
