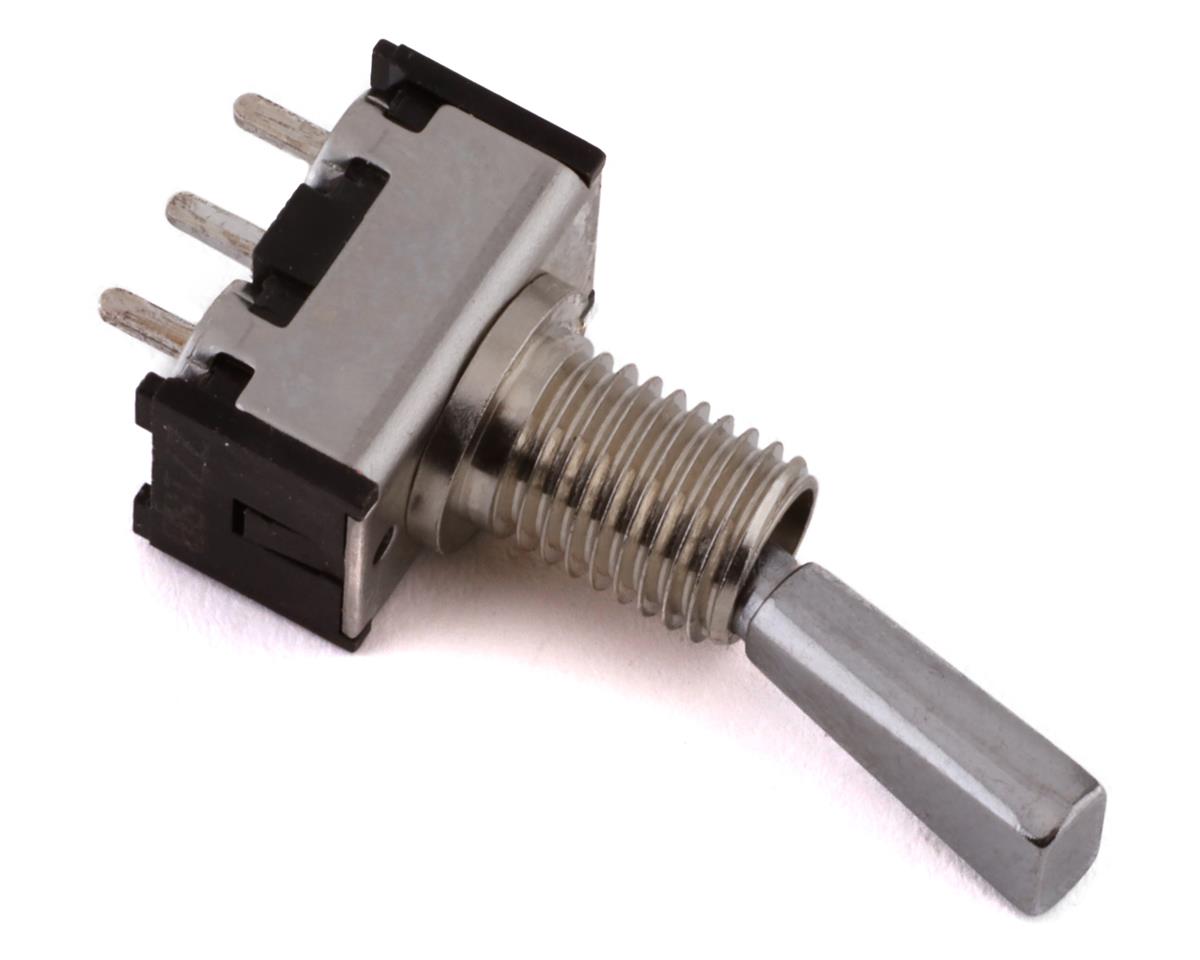

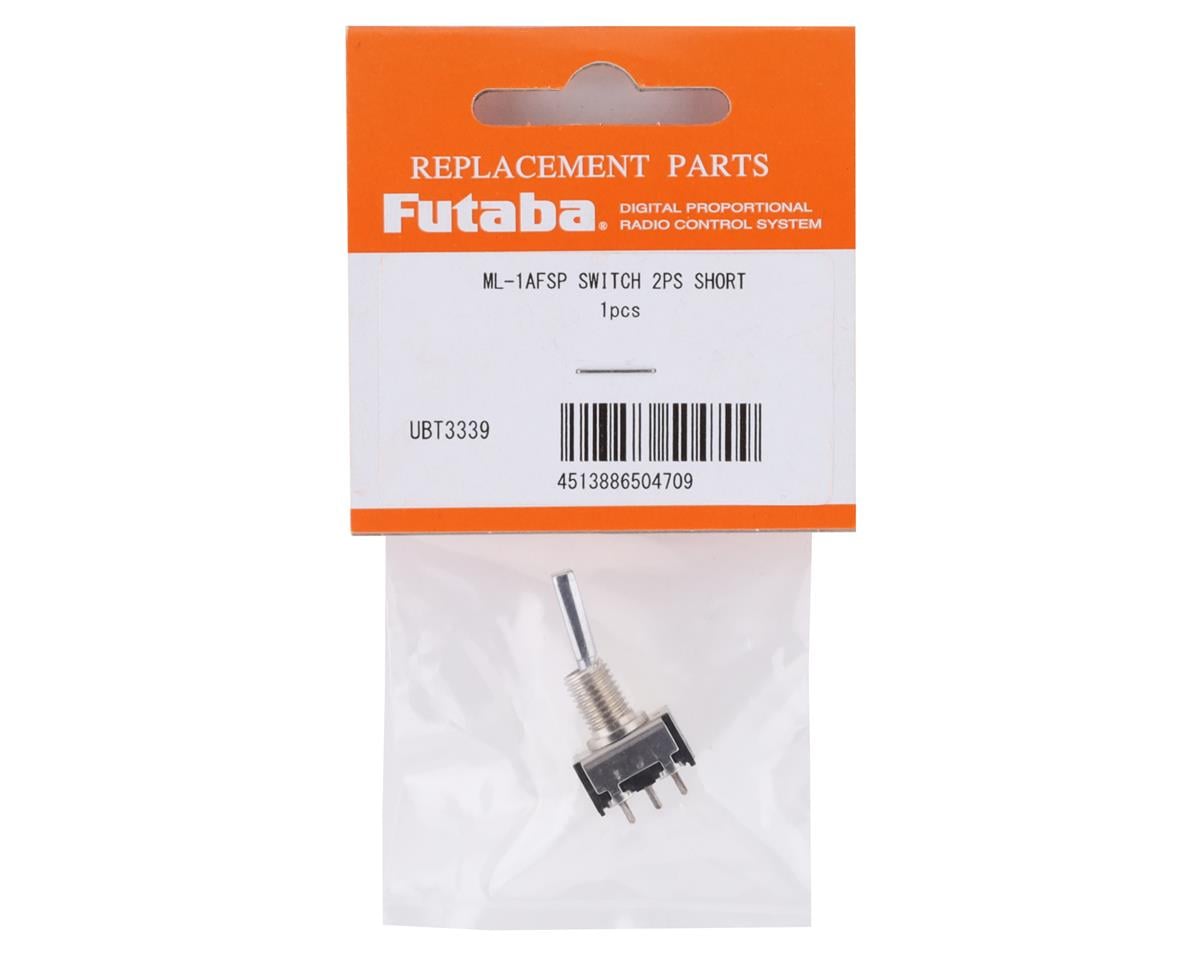

Futaba Two Position Short Solder-On Switch

The Futaba Two Position Short Solder-On Switch is a 2-position short toggle switch used in Futaba radios. It is not compatible with the 9Z Series Radio.

Important Replacement Information

• Intended for modelers with the skills and tools required to replace switches in older, out-of-warranty, dropped, or damaged radios.
• Futaba provides no installation instructions and accepts no liability for installation or resulting damage.
• Replacing a switch on an in-warranty radio may void the warranty.
• For D/R and Trainer switch replacements, contact the warranty center.

Switch Part Number References

• -8UA F/P non-Super and Super (airplane): A, D, E: FUTM3676; G: FUTM3677; B, H: FUTM3678; C: FUTM3679; F: FUTM3680
• -8UH F/P non-Super and Super (helicopter): A, D, G: FUTM3676; E: FUTM3677; B, F: FUTM3678; C: FUTM3679; SSw H: FUTM3680
• -6VA (airplane): trainer: FUTM3680; all except trainer: FUTM3676
• -6VH (heli): all except gear: FUTM3676; Gear/ch 5 6VH: FUTM3678
• -5UA, 6XA and 6XAS (airplane): Ele, ail D/R: FUTM3676; Gear/Flap -air: FUTM3676; Gear - Heli: FUTM3678; Air Brake - Air: FUTM3678; IdleUp/ThrHold-Heli: FUTM3676
• -6YG: Gear: FUTM3676
• -7UA F/P non-Super or Super (airplane): Ele/Ail D/R, gear, mix: FUTM3676; Rudder D/R: FUTM3676; Mix: FUTM3679
• -7UH F/P non-Super or Super (helicopter): Ele/Ail D/R, Thr Hold: FUTM3676; Rudder D/R: FUTM3676; Ch 5/Ch 7: FUTM3678; Idle up: FUTM3677
