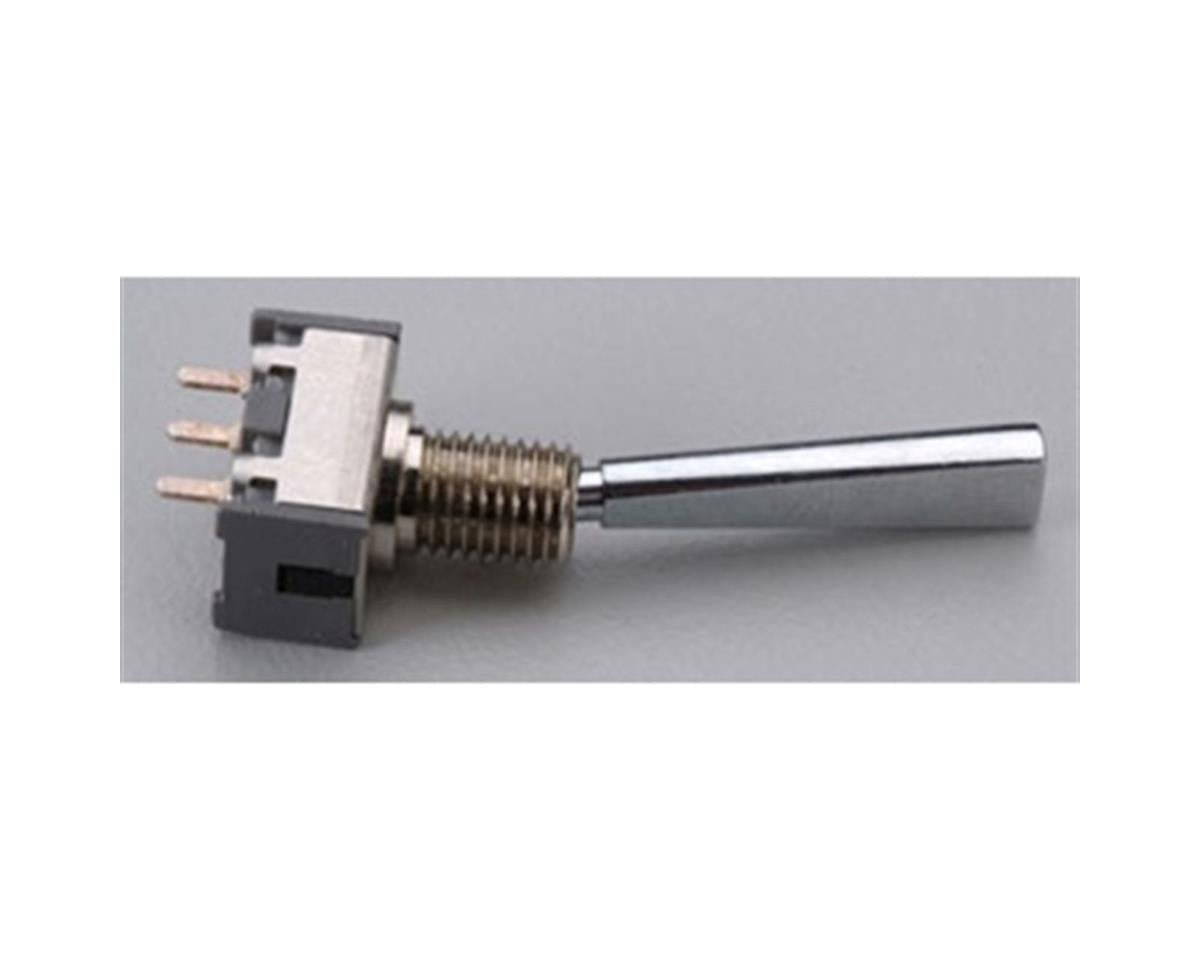

Futaba Two Position Long Switch

The Futaba Two Position Long Switch is a 2-position long toggle switch used in Futaba radios. It will not work in the 9Z Series Radio.

Switch Part Number Applications

• -8UA F/P non-Super and Super (airplane): A, D, E: FUTM3676; G: FUTM3677; B, H: FUTM3678; C: FUTM3679; F: FUTM3680
• -8UH F/P non-Super and Super (helicopter): A, D, G: FUTM3676; E: FUTM3677; B, F: FUTM3678; C: FUTM3679; SSw H: FUTM3680
• -6VA (airplane): trainer: FUTM3680; all except trainer: FUTM3676
• -6VH (heli): all except gear: FUTM3676; Gear/ch 5 6VH: FUTM3678
• -5UA, 6XA and 6XAS (airplane): Ele, ail D/R: FUTM3676; Gear/Flap -air: FUTM3676; Gear - Heli: FUTM3678; Air Brake - Air: FUTM3678; IdleUp/ThrHold-Heli: FUTM3676
• -6YG: Gear: FUTM3676
• -7UA F/P non-Super or Super (airplane): Ele/Ail D/R, gear, mix: FUTM3676; Rudder D/R: FUTM3676; Mix: FUTM3679
• -7UH F/P non-Super or Super (helicopter): Ele/Ail D/R, Thr Hold: FUTM3676; Rudder D/R: FUTM3676; Ch 5/Ch 7: FUTM3678; Idle up: FUTM3677

Installation Notice

Futaba provides these spare parts for modelers with the skills and tools to replace switches on older, out-of-warranty, dropped or damaged radios. Futaba provides no installation instructions and accepts no liability for replacement-switch installation. Replacing a switch may void the warranty on an in-warranty radio, and Futaba is not responsible for damage resulting from switch replacement.

For the D/R switch and Trainer switch, contact the warranty center.
