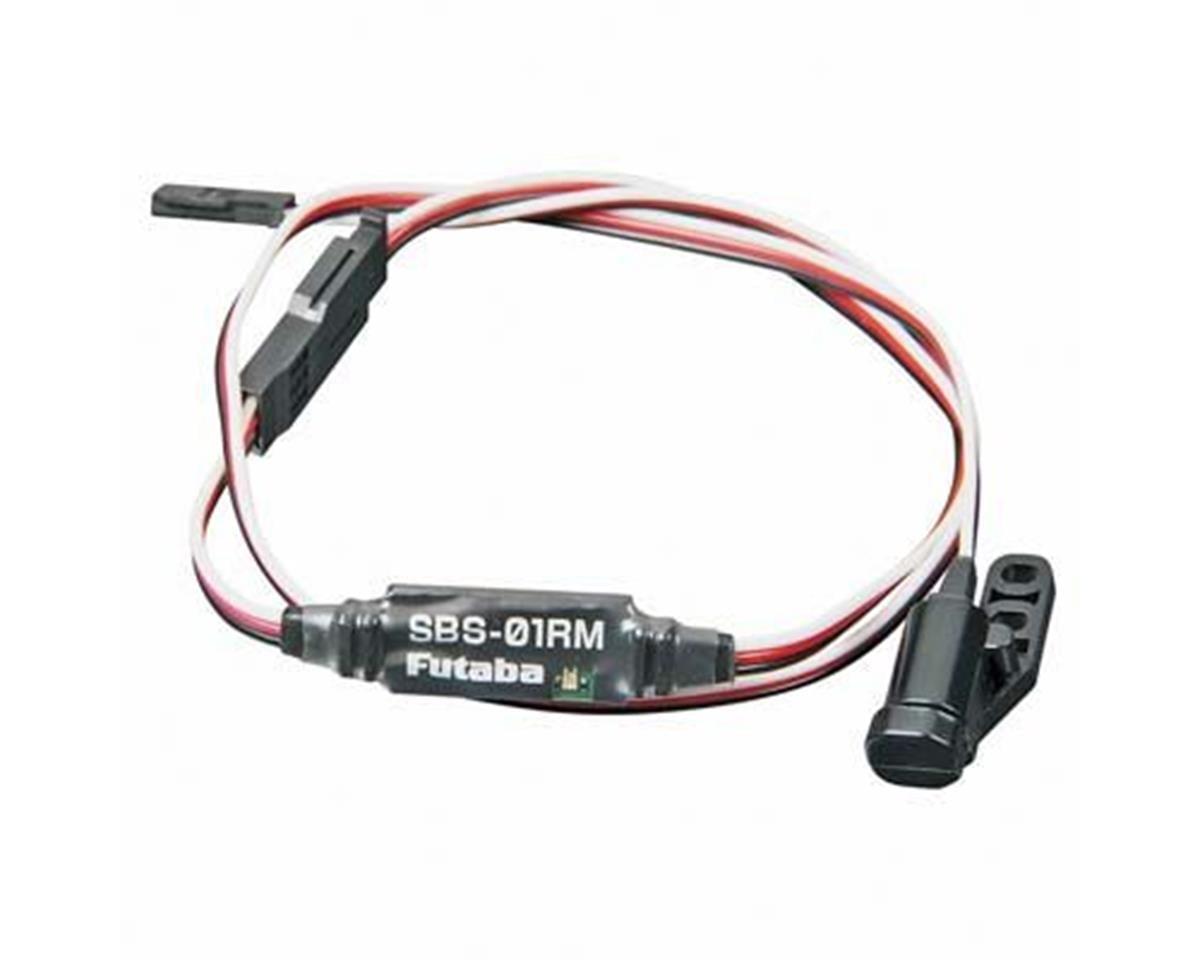

Futaba SBS-01RM Magnetic RPM Telemetry Sensor

The Futaba SBS-01RM Magnetic RPM Telemetry Sensor provides revolutions-per-minute data through a telemetry-enabled receiver with an S.BUS 2 port. Its bi-directional communication transmits the data to a Futaba T-FHSS or FASSTest transmitter.

Specifications

• Display: Revolutions per minute
• Range: 360-100,000
• Length: 255mm
• Voltage: DC3.7 ~ 7.4V
• Weight w/pickup: 0.166 oz (4.7 g)

Note: The SBS-01RM may only be used with telemetry-enabled receivers that offer S.BUS 2 port(s). Refer to the manual(s) supplied with your transmitter and/or receiver for proper connection methodology.
