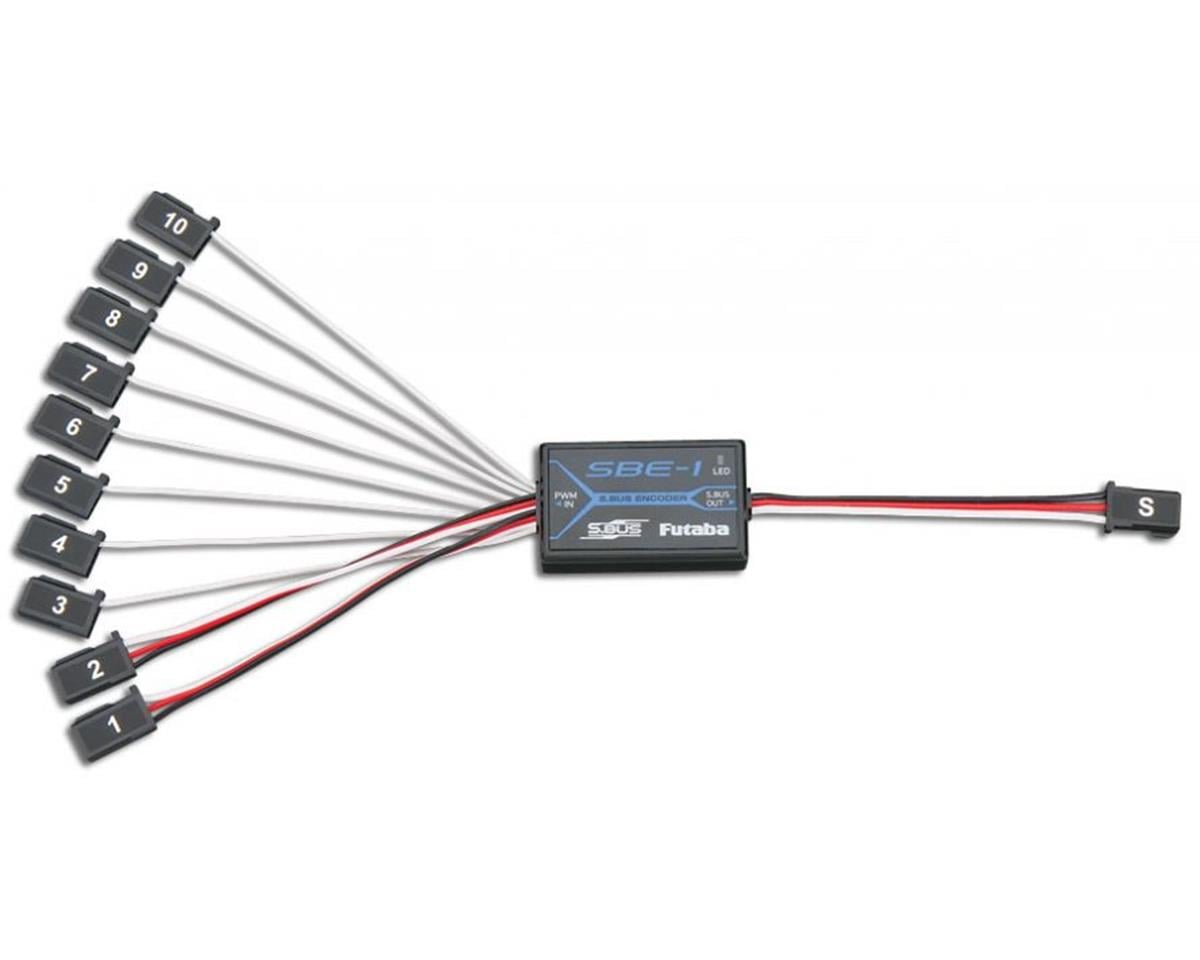

Futaba SBE-1 S.Bus PWM Adapter

The Futaba SBE-1 S.Bus PWM Adapter converts input from up to 10 PWM channels into a single S.Bus output. It enables compatibility with S.Bus programmable servos, the CGY750 3-axis gyro, and other S.Bus compatible equipment.

Specifications

• PWM Input: Max 10 Channels
• Input Pulse Width: 805 - 2,235?S
• Input Frame Rate: 3 - 27.3mS
• Output Signal: S.Bus
• S.Bus Data Rate: 100kbps
• Output Frame Rate: Approx. 7mS
• Operating Voltage Range (Rated): 4.8 - 7.4V
• Dimensions: 23.5x33.5x9.5mm (excluding cable)
• Weight: 15g
• Operating Temperature Range: -10 - +45°C
• Storage Temperature Range: -20 - +60°C
