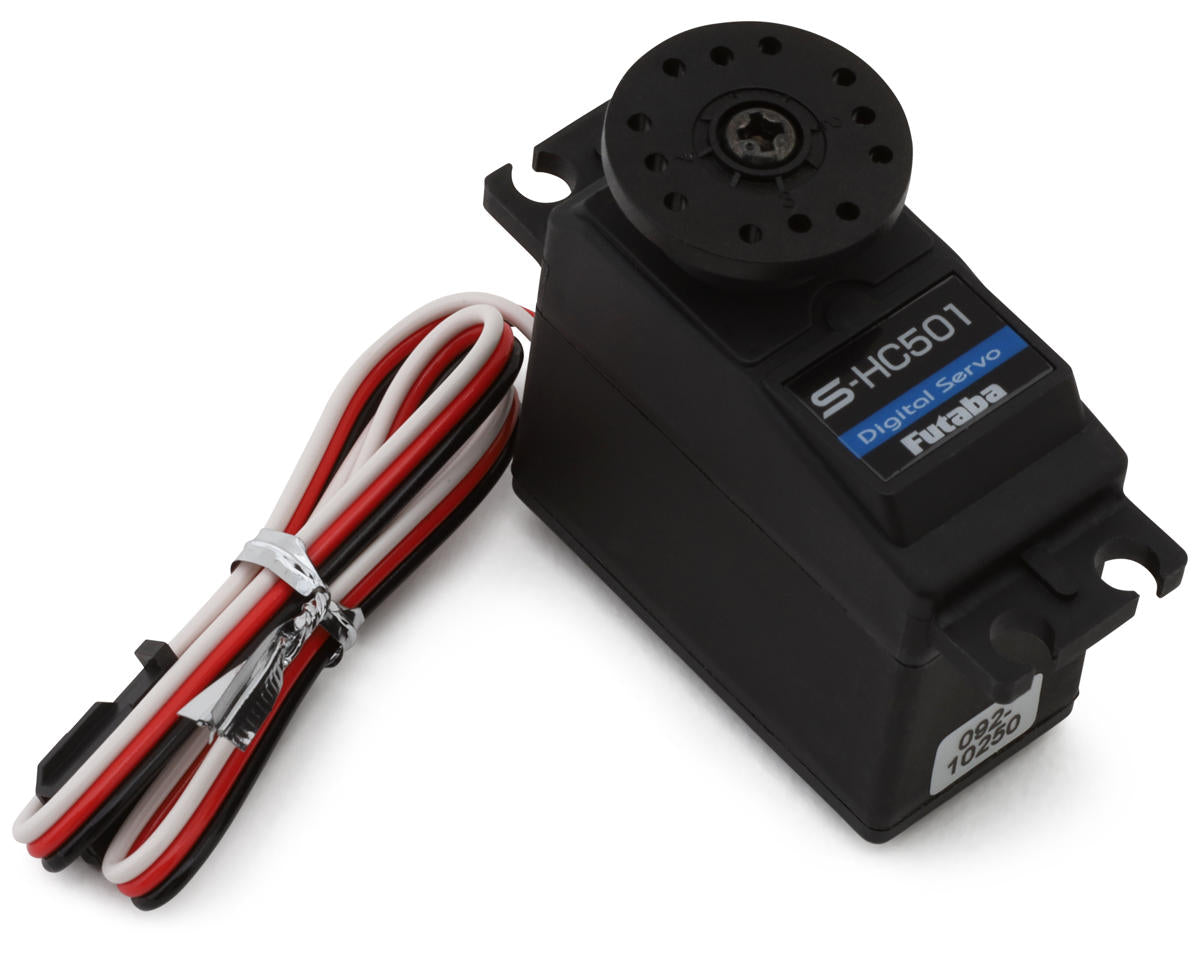

Futaba S-HC501 High-Speed/Torque Digital Swash Servo (High Voltage)

The Futaba S-HC501 is a high-speed, high-torque digital servo designed for helicopter swashplate applications. Its coreless motor, metal gearing, and S.Bus compatibility support responsive cyclic control and simplified setup.

Features

• Operating speed of .09sec/60° at 7.4V
• Dynamic torque of 13.8kg-cm at 7.4V
• S.Bus compatible
• Coreless motor
• Metal 2 and 3-stage gear system with aluminum end-stage gears
• Lightweight resin case construction

Specifications

• Application: Aircraft
• Input Voltage: 6.0-7.4V
• Operating Speed @ 6.6V: .10sec/60°
• Operating Speed @ 7.4V: .09sec/60°
• Dynamic Torque @ 6.6V: 173.6oz-in (12.5kg-cm)
• Dynamic Torque @ 7.4V: 191.65oz-in (13.8kg-cm)
• Motor Type: Coreless
• Output Shaft Spline: 25T
• Gear Material: Metal
• Dimensions: 1.57x0.79x1.44in (40x20x36.6mm)
• Weight: 1.9oz (54g)

Includes

• (1) S-HC501 High-Speed/Torque Digital Swash Servo (High Voltage)

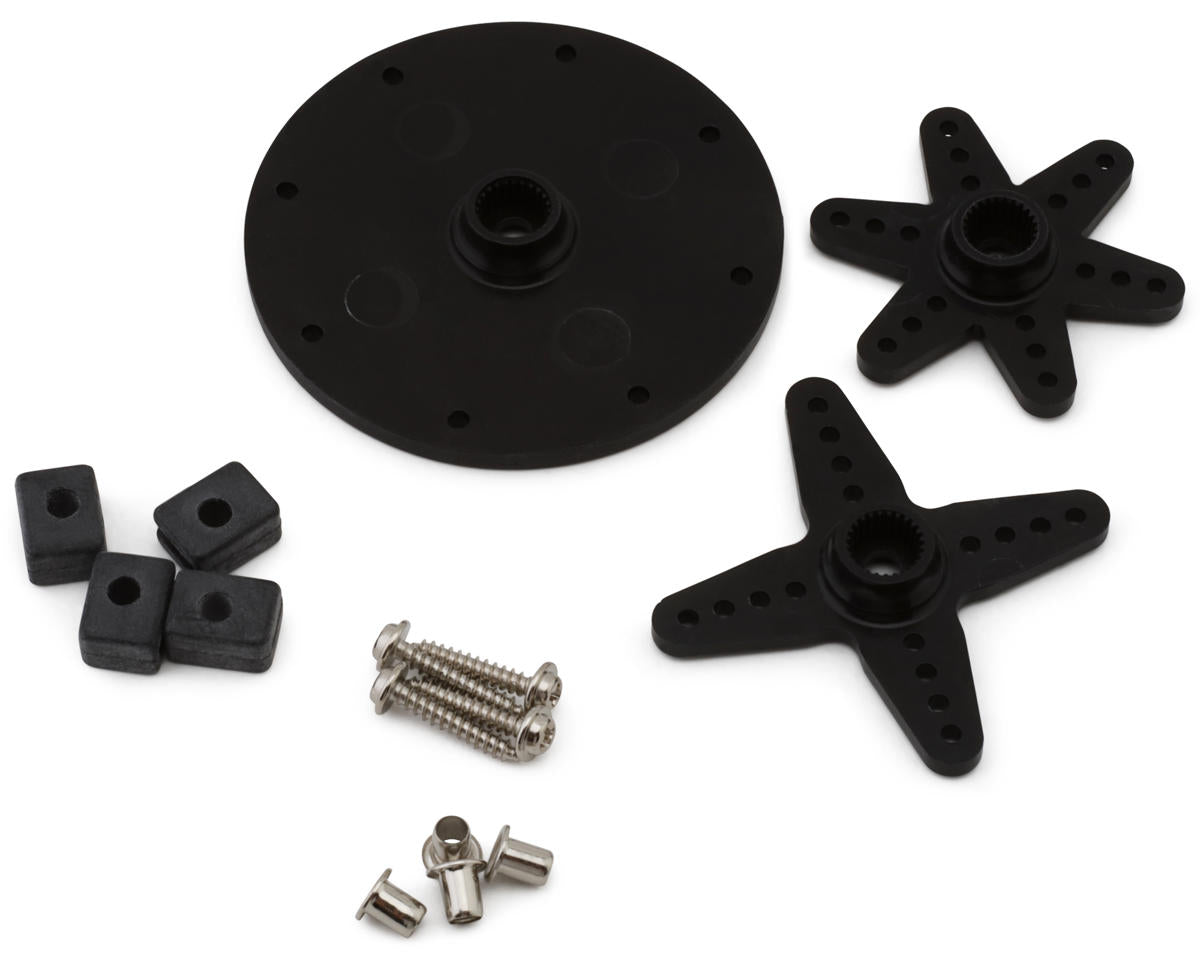

• Assorted Servo Horns & Hardware
