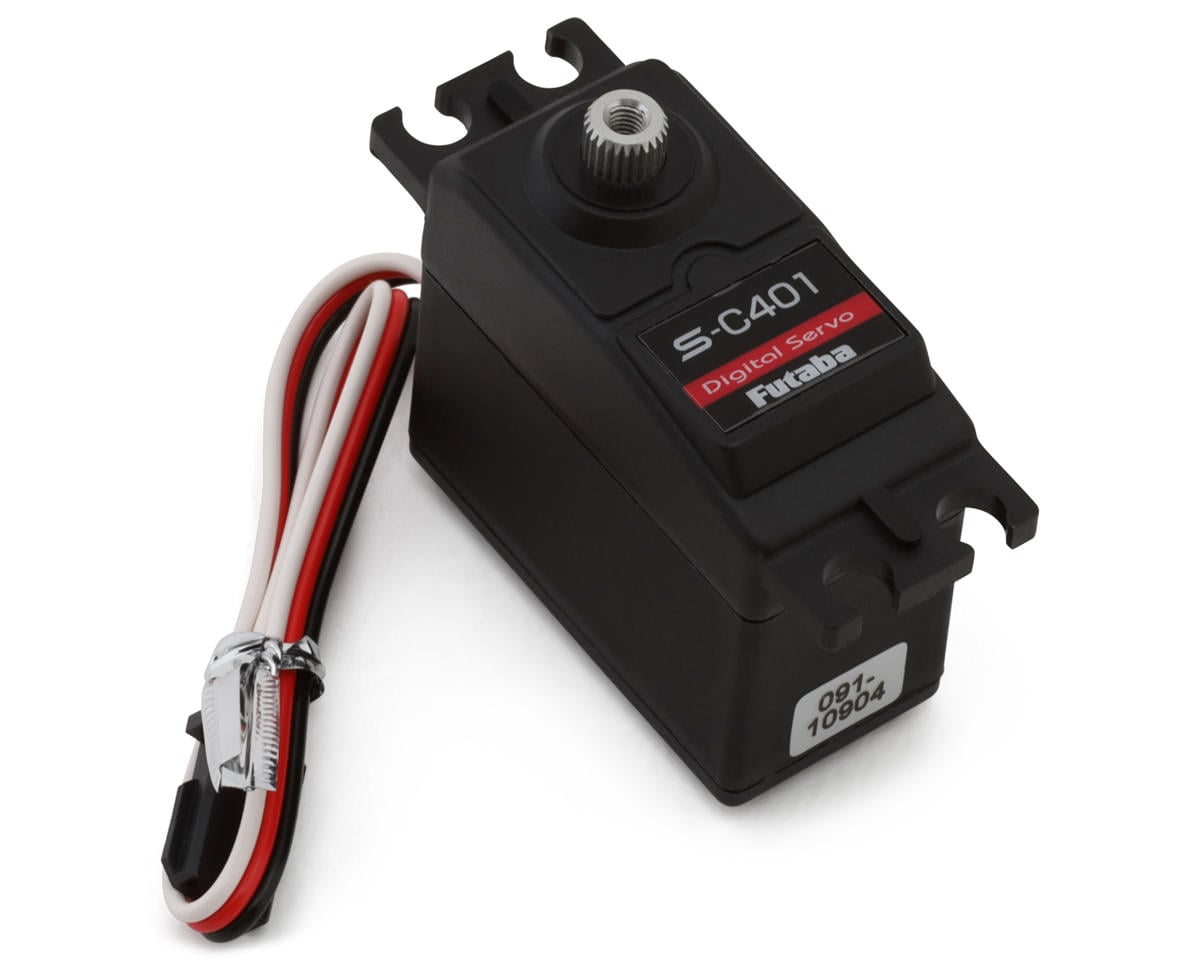

Futaba S-C401 High-Speed/Torque Digital Servo (High Voltage)

The Futaba S-C401 High-Speed/Torque Digital Servo provides digital precision control, high-speed operation, and strong torque output for RC applications. It operates from 4.8-7.4V and features a 25T output shaft spline with metal gears.

Features

• Operating speed of 0.09 sec/60° at 7.4V
• Dynamic torque of 191.6oz-in (13.8kg-cm) at 7.4V
• Input voltage range of 4.8-7.4V
• Digital precision control
• Metal gear material
• 25T output shaft spline
• Weight: 1.9oz (54g)
• Suitable for RC airplanes, cars, and helicopters

Specifications

• Application: Surface
• Input Voltage: 4.8-7.4V
• Operating Speed @ 7.4V: .09sec/60°
• Dynamic Torque @ 7.4V: 191.6oz-in (13.8kg-cm)
• Motor Type: -
• Output Shaft Spline: 25T
• Gear Material: Metal
• Dimensions: 1.57x0.79x1.44in (40x20x36.6mm)
• Weight: 1.9oz (54g)

Includes

• (1) S-C401 High-Speed/Torque Digital Servo

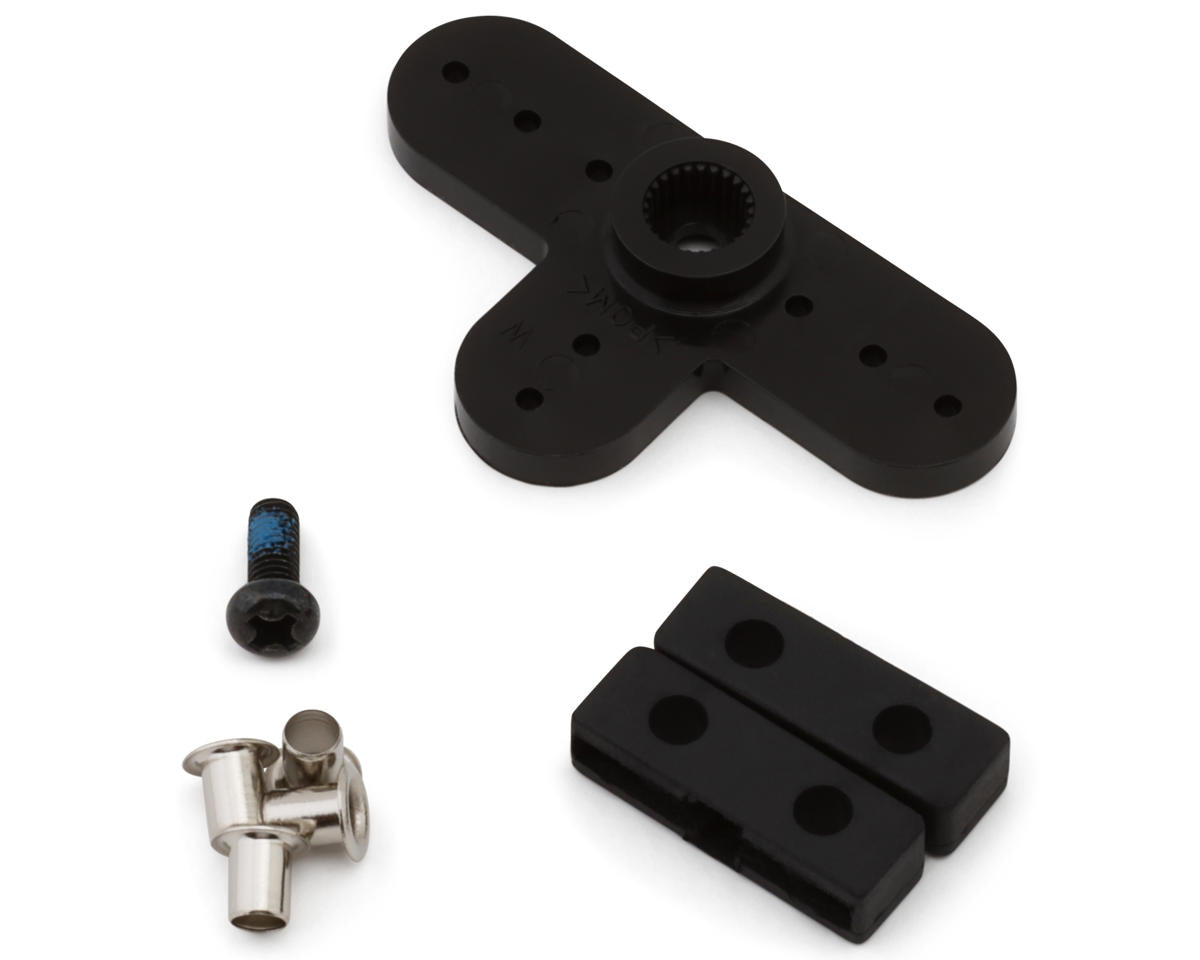

• Servo Horn & Hardware
