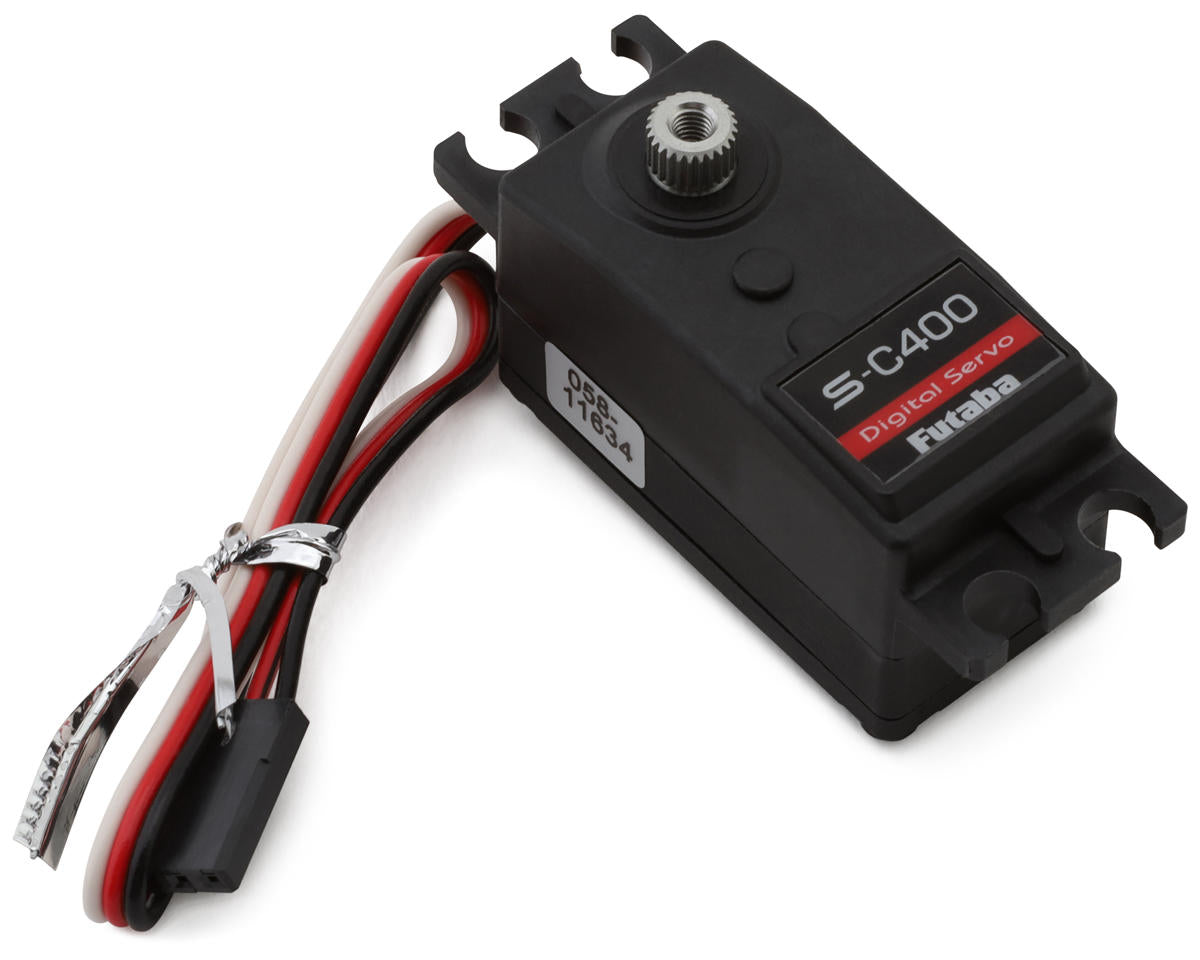

Futaba S-C400 Brushless S.Bus2 Programmable Digital Servo (High Voltage)

The Futaba S-C400 is a programmable digital servo for RC cars with S.Bus2 compatibility and a brushless motor. It delivers fast response and high torque at 6.0V and 7.4V, with a 25T output shaft and steel gears.

Features

• Programmable digital servo for RC cars
• S.Bus2 compatibility
• Brushless motor
• Wide operating voltage range from 4.0V to 8.4V
• 25T output shaft
• Steel gear material

Specifications

• Input Voltage: 6.0-7.4V
• Speed: @6.0V: 0.10sec/60°; @7.4V: 0.08sec/60°
• Torque: @6.0V: 91.6oz-in (6.6kg-cm); @7.4V: 111.1oz-in (8.0kg-cm)
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.94x0.78x1in (40.5x20x25.4mm)
• Weight: 1.51oz (43g)

Includes

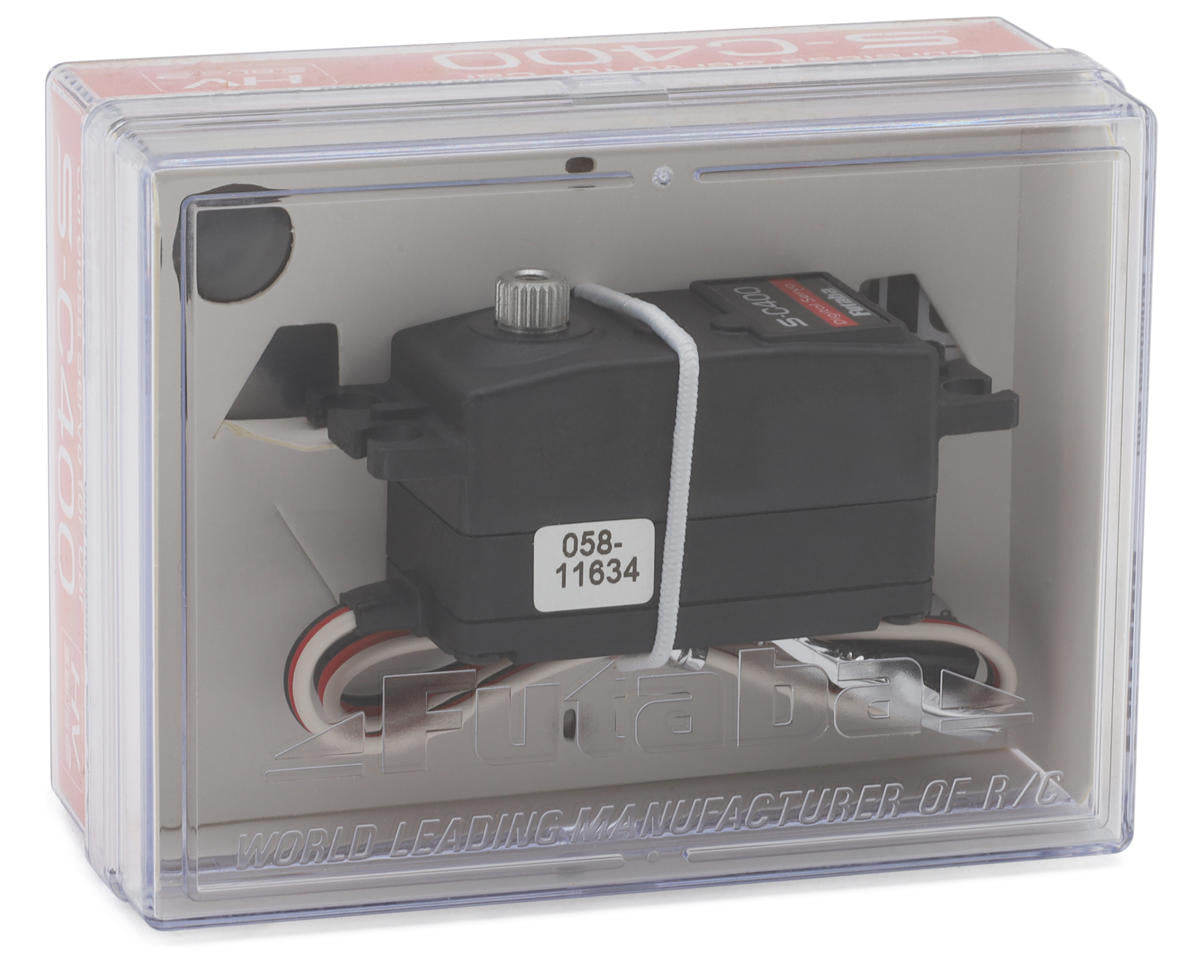

• S-C400 Brushless S.Bus2 Programmable Digital Servo

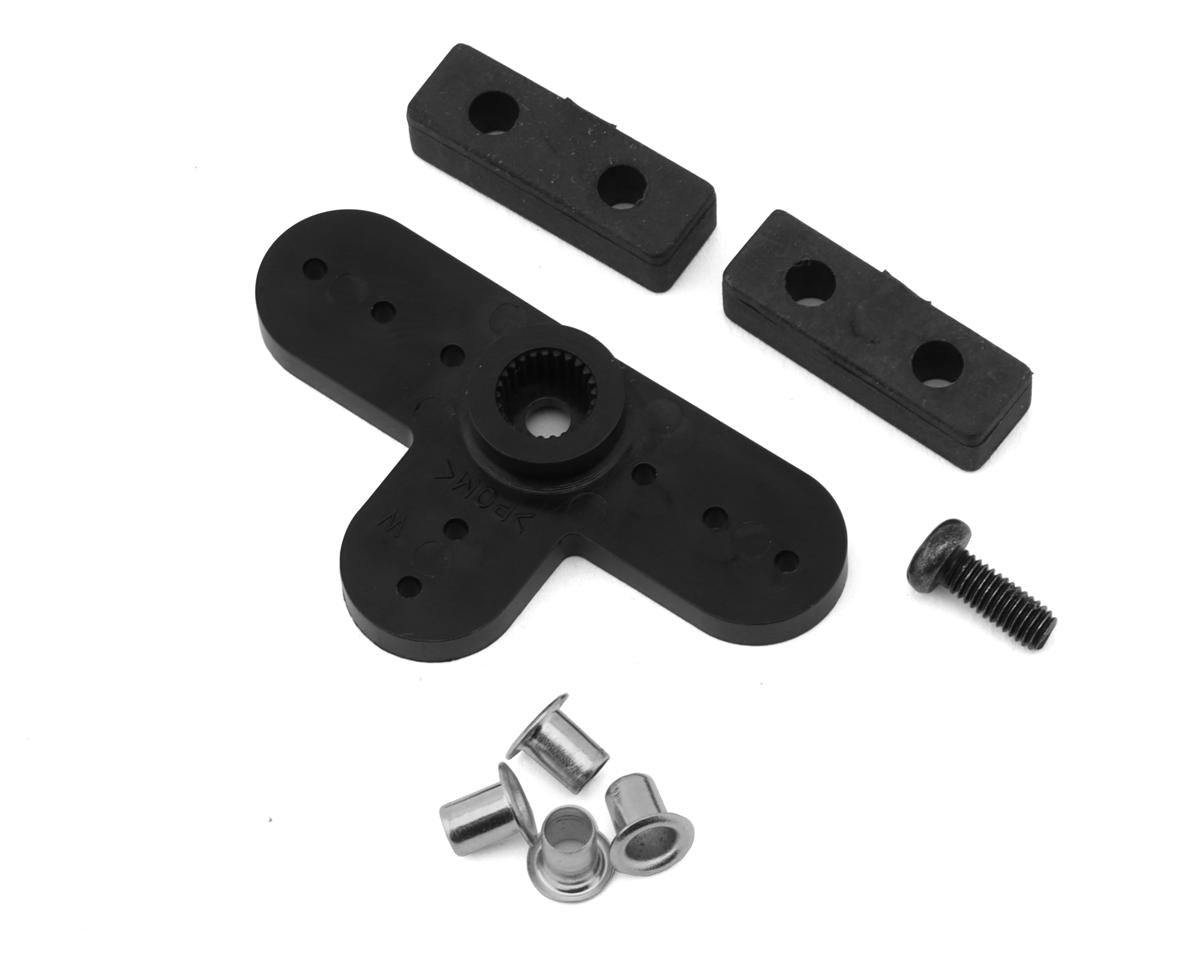

• Assorted Servo Horns and Mounting Hardware
