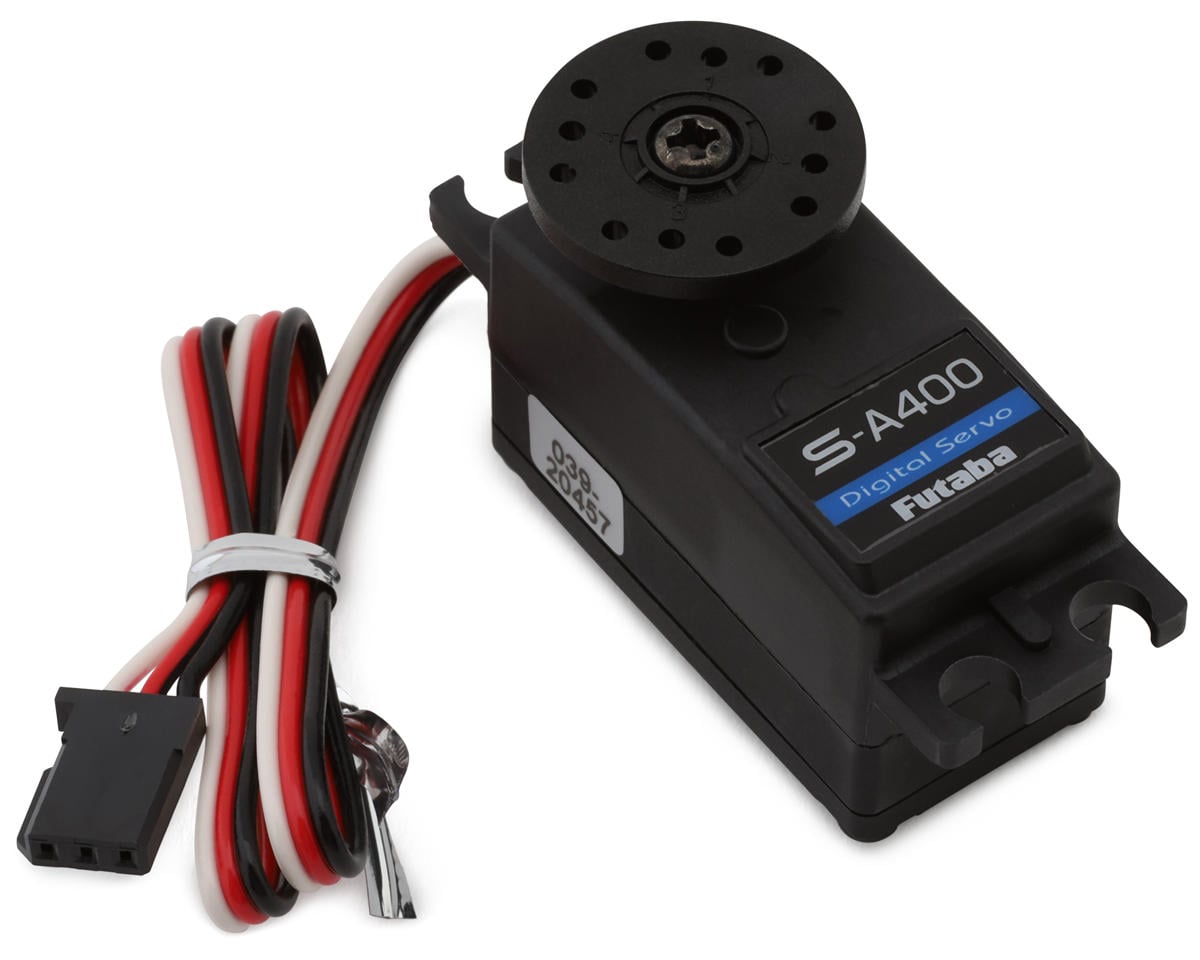

Futaba S-A400 Brushless S.Bus2 Digital Low Profile Airplane Servo (High Voltage)

The Futaba S-A400 is a brushless S.Bus2 digital low profile airplane servo with a 25T output shaft, steel gears and bearings. It supports 6.0-7.4V input and provides high-torque performance at multiple voltages.

Features

• Coreless motor for high efficiency
• S.Bus2 compatibility
• Fast response with low profile design
• Metal gears with bearings
• High-torque performance at multiple voltages

Specifications

• Input Voltage: 6.0-7.4V
• Speed: @6.6V: 0.09sec/60°; @7.4V: 0.08sec/60°
• Torque: @6.6V: 100oz-in (7.20kg-cm); @7.4V: 111.1oz-in (8.00kg-cm)
• Motor Type: Brushless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.59x0.79x1.0in (40.39x20.1x25.4mm)
• Weight: 1.62oz (45.9g)

Includes

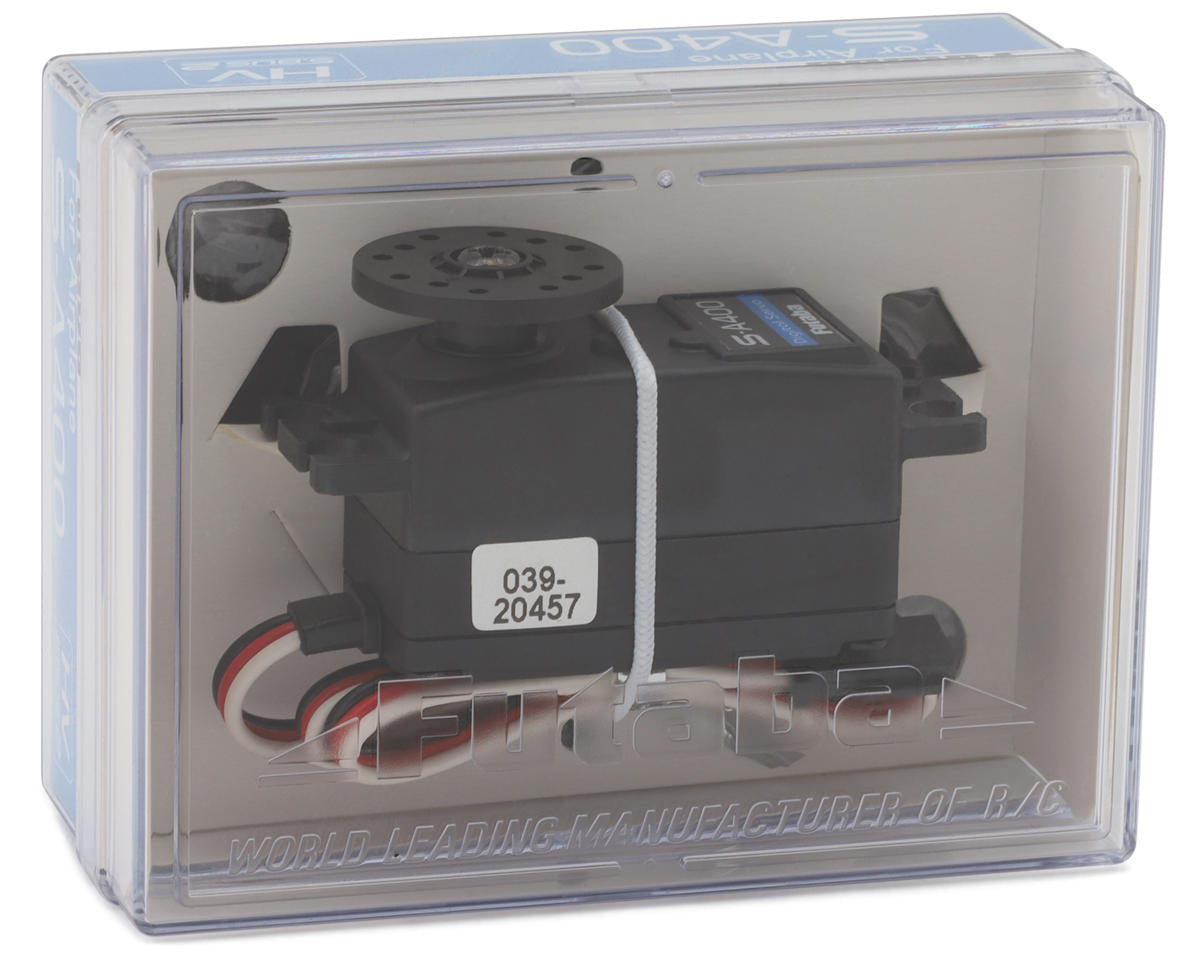

• (1) S-A400 Brushless S.Bus2 Digital Low Profile Airplane Servo

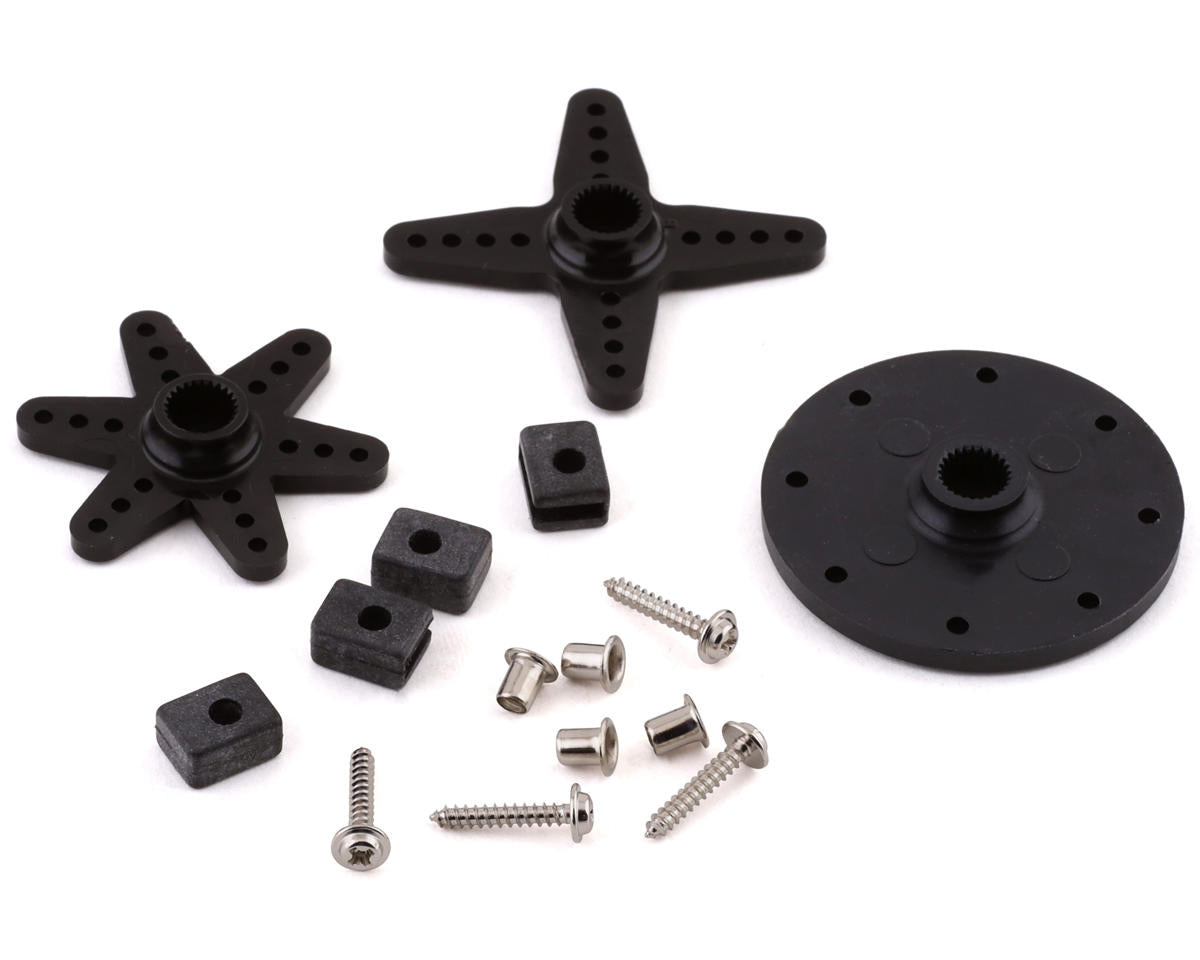

• Assorted Servo Horns and Mounting Hardware
