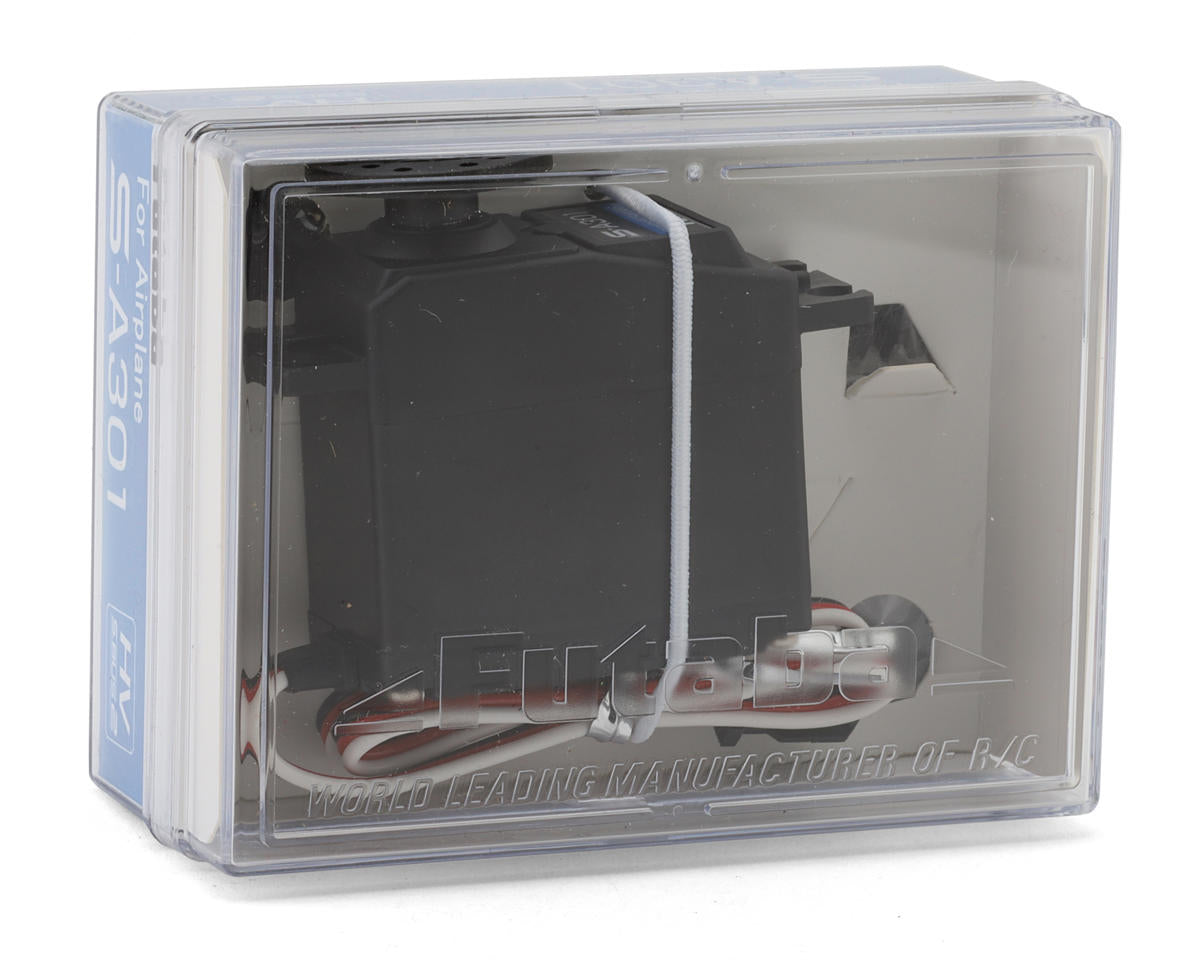

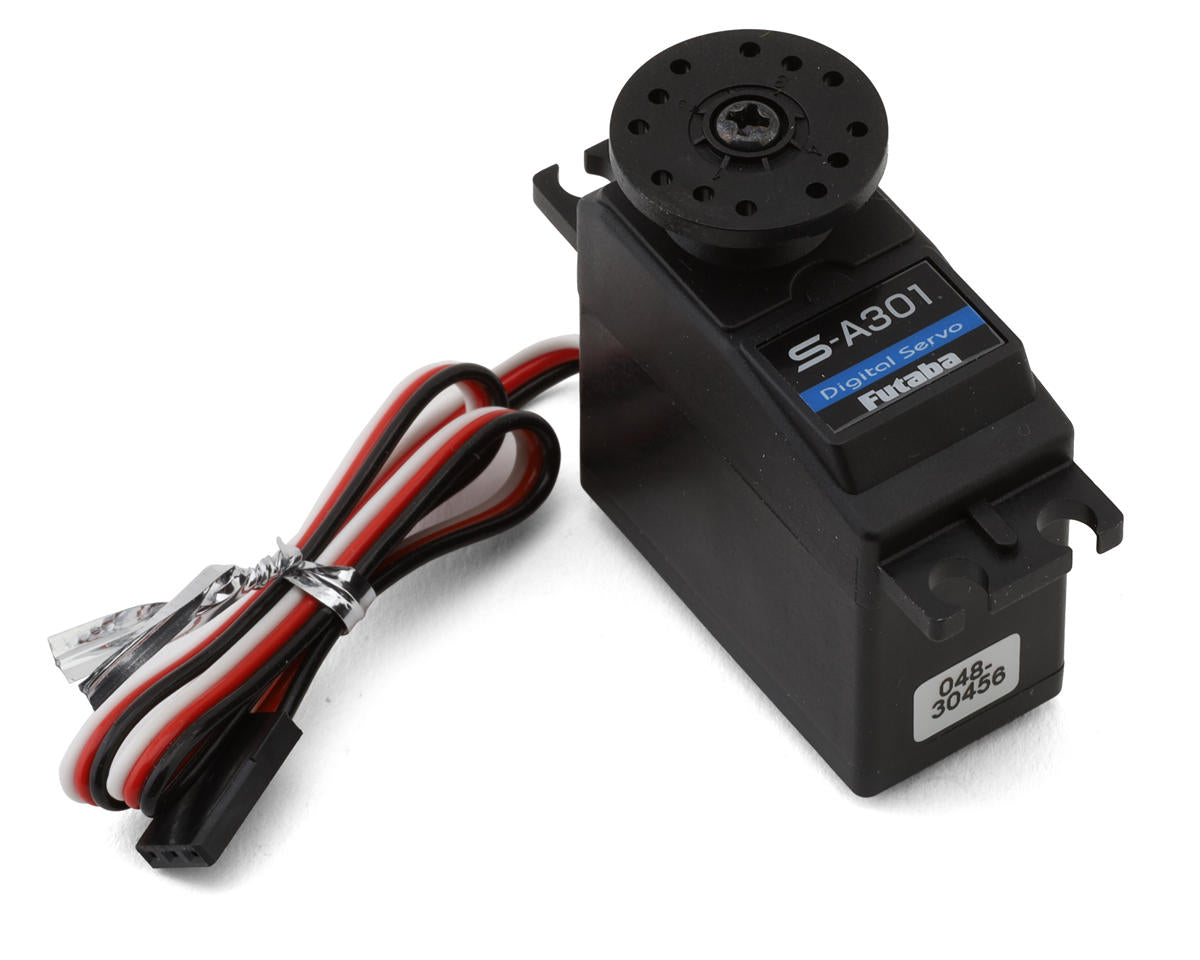

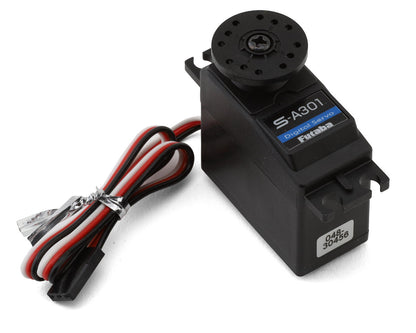

Futaba S-A301 Digital Standard Airplane Servo (High Speed)

The Futaba S-A301 Digital Standard Airplane Servo features high-speed operation, high torque output, and a wide 6.0-7.4V operating voltage range. It uses metal gears with a bearing and includes assorted servo horns and mounting hardware.

Specifications

• Speed: @6.0V: 0.14sec/60°; @7.4V: 0.13sec/60°
• Torque: @6.0V: 118.1oz-in (8.50kg-cm); @7.4V: 125.0oz-in (9.00kg-cm)
• Dimensions: 1.57x.0.79×1.5in (39.9x20.1x38.1mm)
• Weight: 1.66oz (47.06g)
• Operating Voltage: 6.0-7.4V
• Spline: 25T
• Waterproof: No

Features

• High-speed operation
• Wide voltage range
• High torque
• Compact size
• Lightweight
• Metal gears with bearing for durability

Includes

• (1) S-A301 Digital Standard Airplane Servo (High Speed)

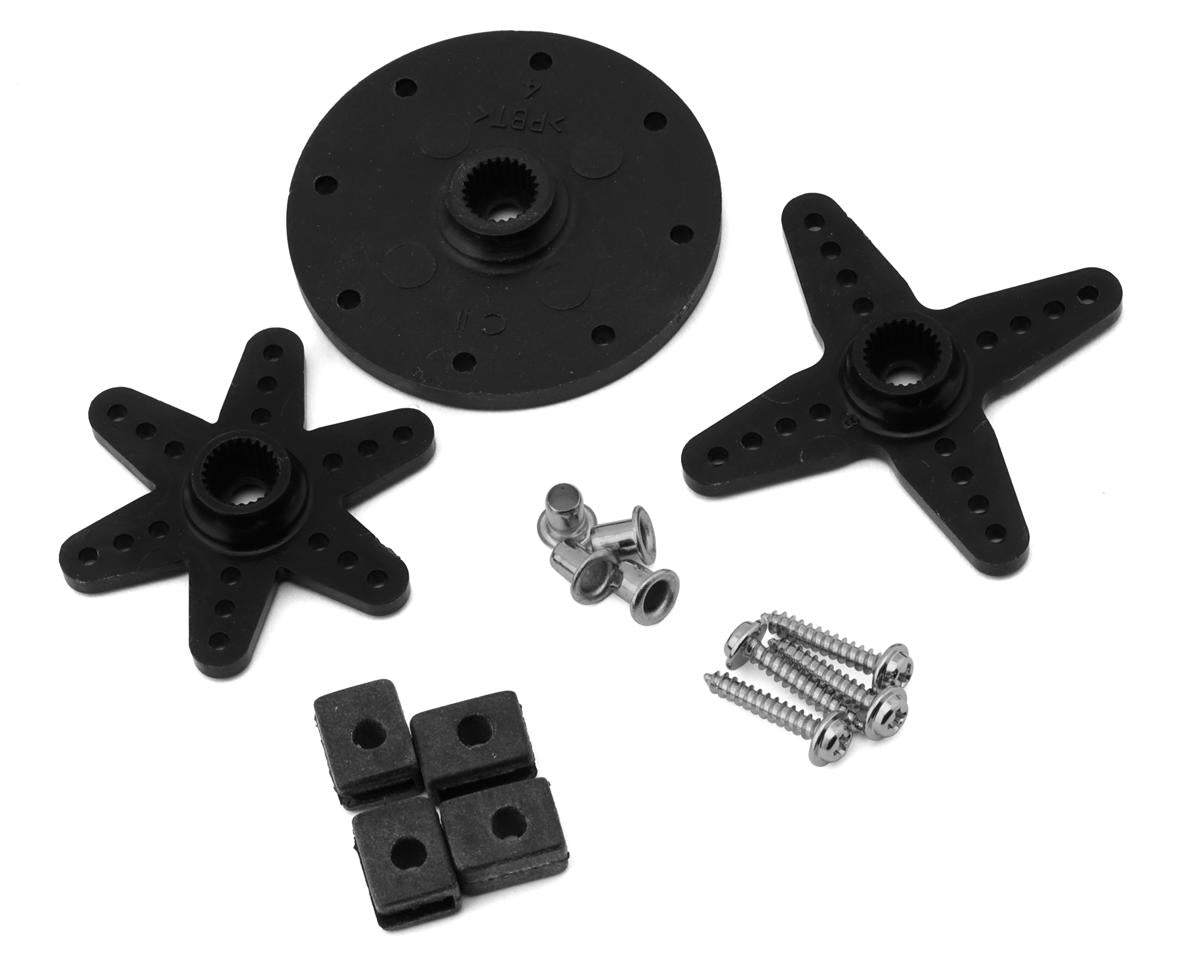

• Assorted Servo Horns and Mounting Hardware
