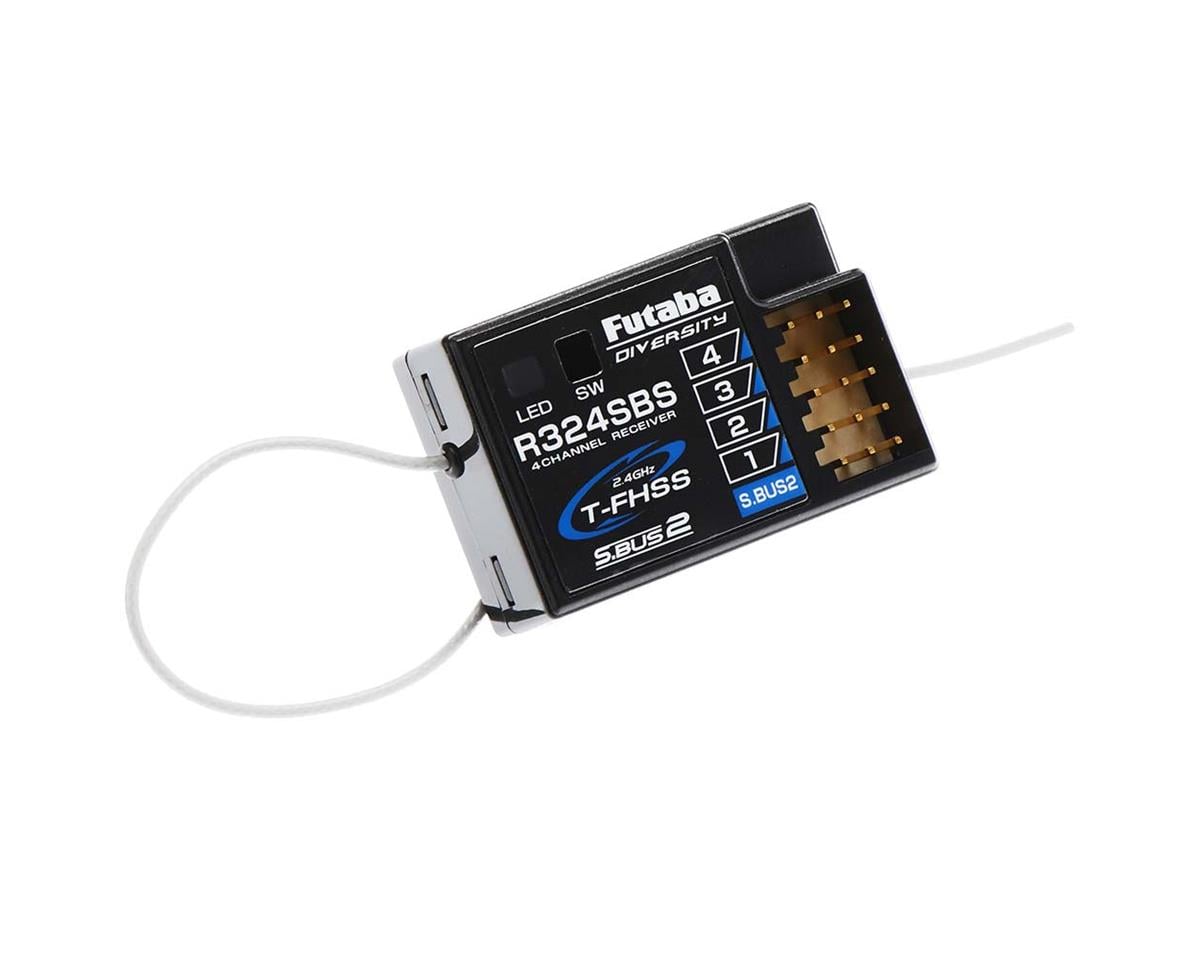

Futaba R324SBS T-FHSS 4-Channel S.Bus2 Telemetry 2.4GHz Receiver

The Futaba R324SBS receiver is a 4-channel 2.4GHz T-FHSS receiver for Futaba surface transmitters using T-FHSS technology. It provides bidirectional T-FHSS telemetry, S.Bus2 support, and high-voltage operation.

Compatibility: Use only with Futaba T-FHSS telemetry-compatible transmitters. This receiver is not compatible with 2.4GHz FASST, FASSTest, FHSS, or S-FHSS non-telemetry systems.

Features

• T-FHSS bidirectional telemetry
• S.Bus2 normal and high-speed modes with automatic detection
• Normal mode accepts any type of servo
• High-speed mode accepts digital servos, including BLS servos
• High-voltage operation
• Dual antenna diversity
• Battery fail-safe

Specifications

• Operating Voltage: 3.7-7.4V
• Size: 1.4 x 0.91 x 0.49" (35.1 x 23.2 x 12.5mm)
• Weight: 0.29oz (8.3g)
• Number of Ports: 5
• PWM Output: 4
• SBUS Ports: 0
• SBUS2 Ports: 1
• Telemetry: Yes (T-FHSS)
• High Speed: Yes
• High Voltage: Yes
• Connector: J (STND)
• Range: Full Range
