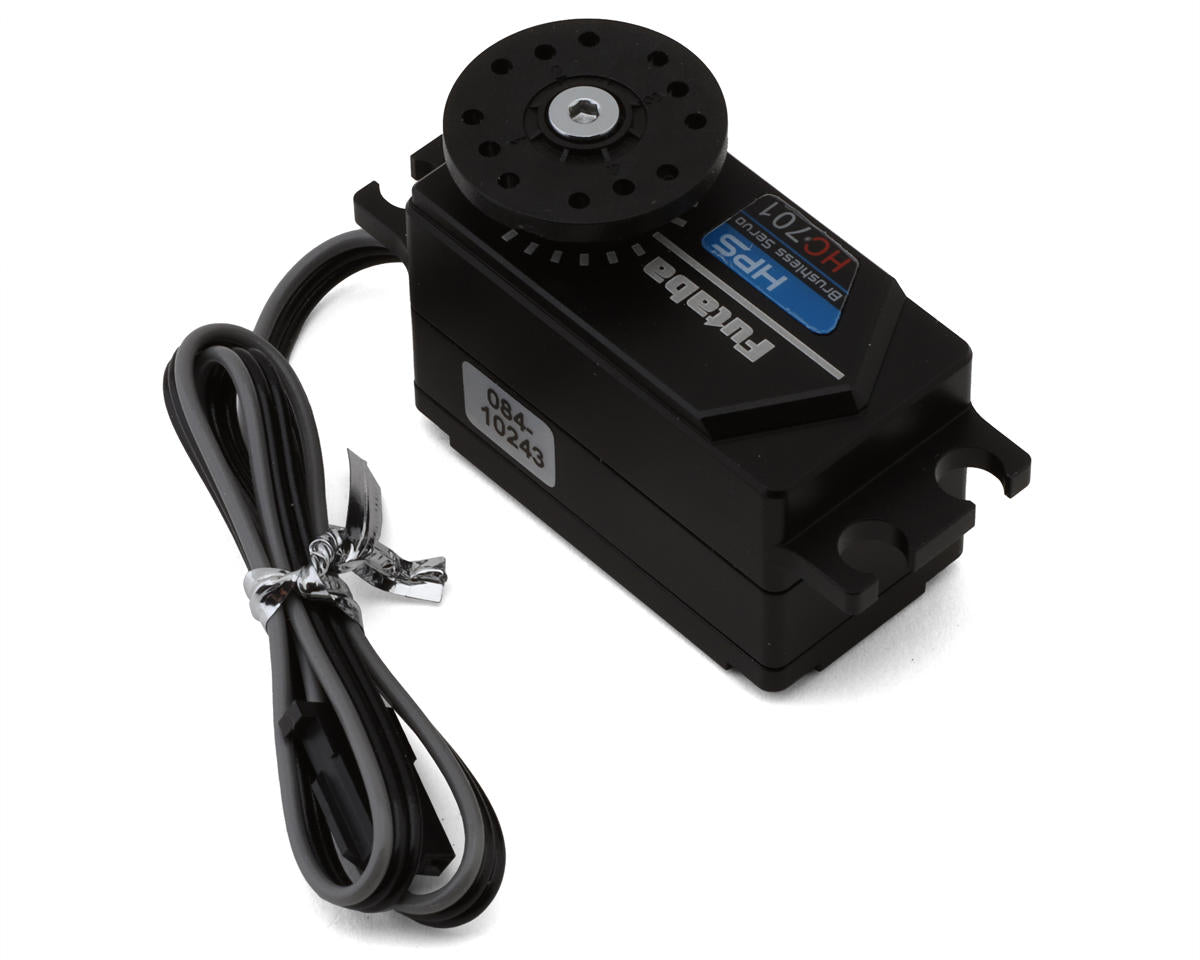

Futaba HPS-HC701 S.Bus2 Low Profile Brushless Cyclic Servo (High Voltage)

The Futaba HPS-HC701 is a high-voltage, low-profile brushless cyclic servo with switchable 760uS and 1520uS programming. It is designed for use in the tail of 500-800 size helicopters and is compatible with S.Bus and S.Bus2.

Features

• Programmable high-voltage brushless servo
• S.Bus and S.Bus2 compatible
• Supports 760uS and 1520uS
• Full aluminum case
• High power brushless motor

Specifications

• 1520uS speed: @7.4V: 0.07sec/60°; @6.6V: 0.08sec/60°
• 1520uS torque: @7.4V: 416.6 oz-in (30.0kg-cm); @6.6V: 368 oz-in (26.5kg-cm)
• 760uS speed: @7.4V: 0.07sec/60°; @6.6V: 0.08sec/60°
• 760uS torque: @7.4V: 375.0 oz-in (27.0kg-cm); @6.6V: 333.3 oz-in (24.0kg-cm)
• Length: 1.5in (40.5mm)
• Width: 0.82in (21.0mm)
• Height: 1.03in (26.2mm)
• Weight: 1.9oz (54g)
• Operating Voltage: DC 4.8 - 8.4V

Includes

• (1) HPS-HC701 S.Bus2 Low Profile Brushless Cyclic Servo
