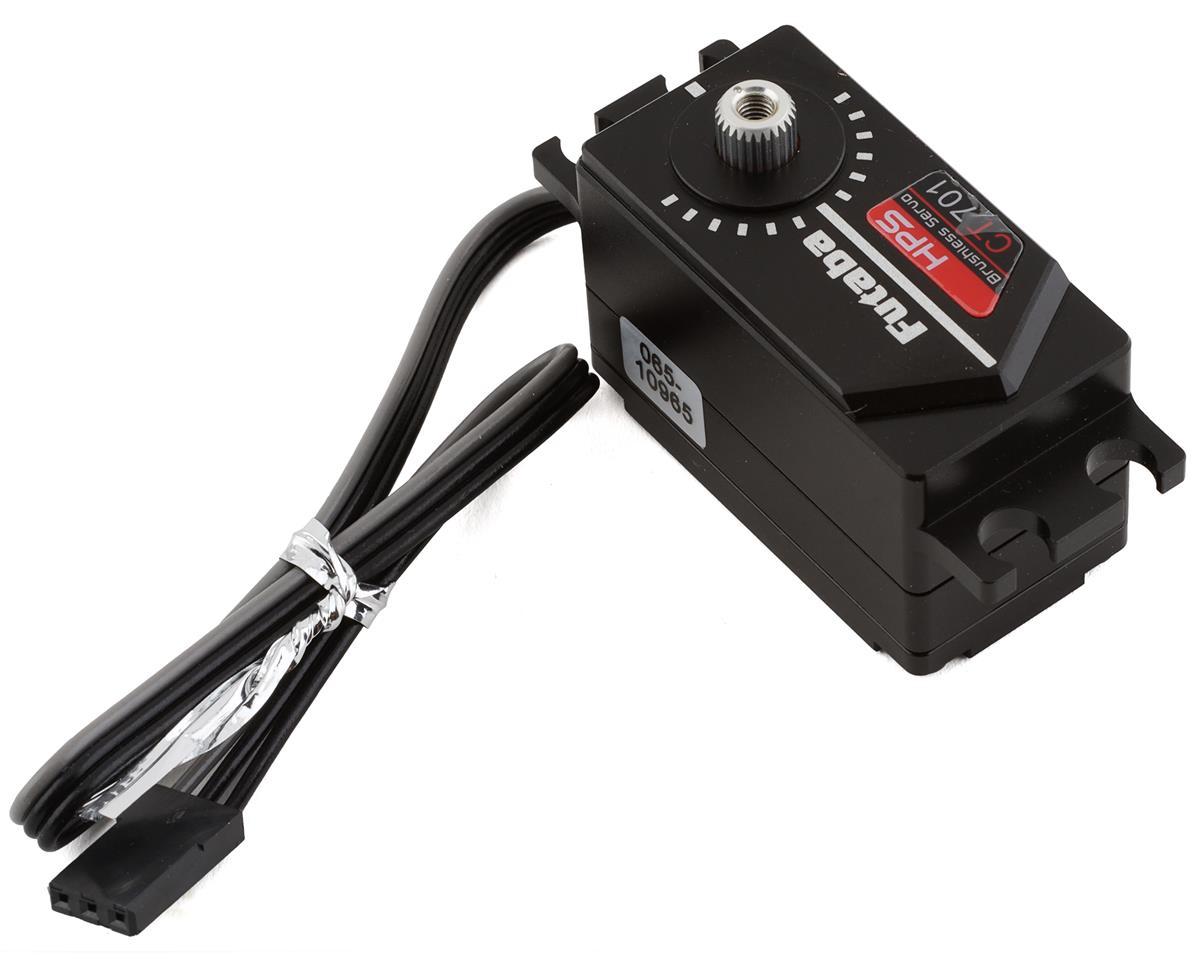

Futaba HPS-CT701 Low Profile Surface Brushless Servo (High Voltage)

The Futaba HPS-CT701 is a programmable, high-voltage brushless low-profile surface servo for 1/10 scale RC cars, including on-road, off-road and drifting applications. It supports SR mode with T4PM, T7PX and T10PX programmable transmitters, along with S.Bus and S.Bus2 systems.

The servo features a custom high-power brushless motor and an aluminum case at the upper, middle and bottom sections. It can be connected to a PC using a CIU-2 or CIU-3 USB adapter, sold separately.

Note: This servo is not compatible with external BEC units.

Specifications

• Speed: @7.4V: 0.07sec/60°; @6.0V: 0.08sec/60°
• Torque: @7.4V: 416.6 oz-in (30.0kg-cm); @6.0V: 319.40 oz-in (23.0kg-cm)
• Dimensions: 40.5x21.0x26.2mm
• Weight: 54g
• Operating Voltage: DC 4.8-8.4V
