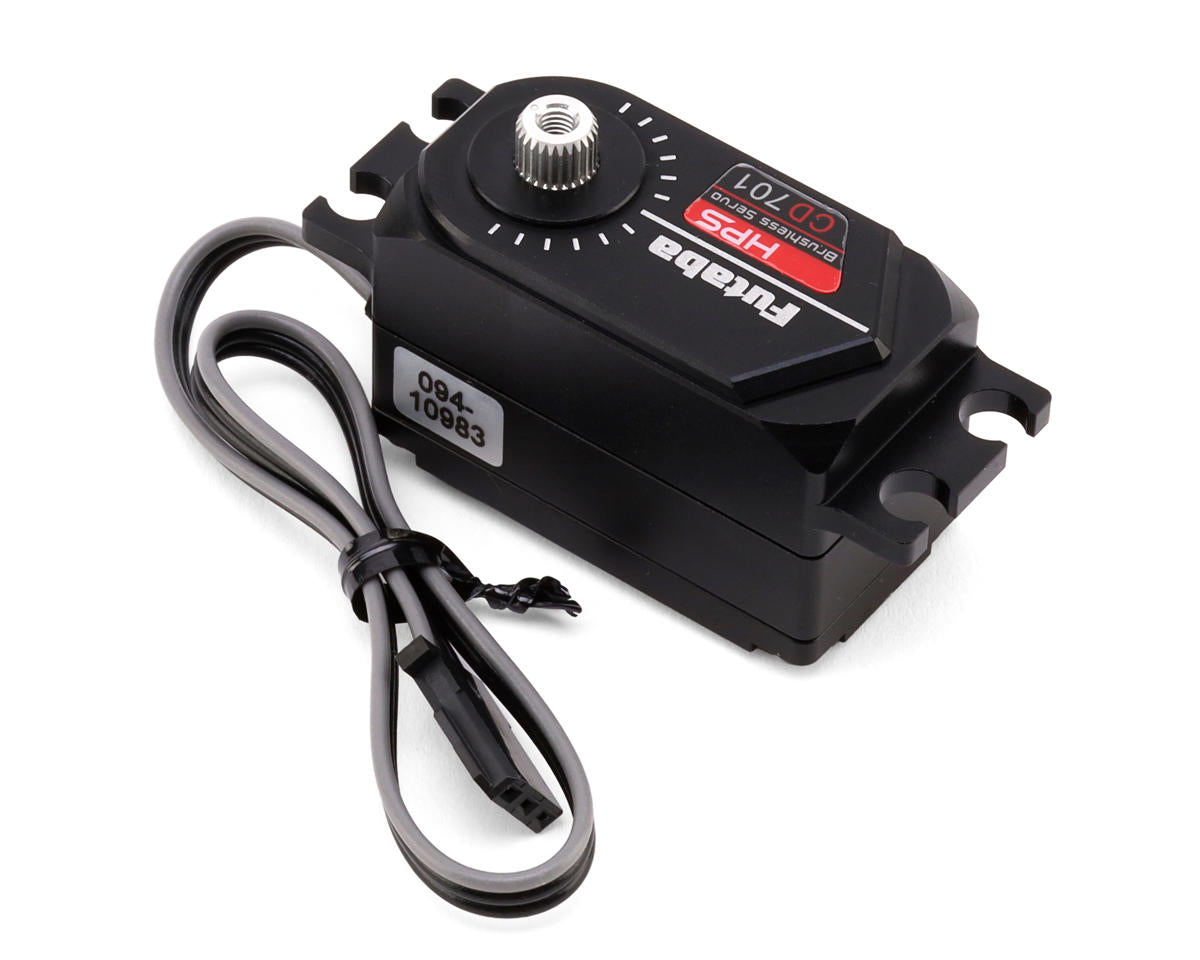

Futaba HPS-CD701 S.Bus2 Low Profile Surface Brushless Drift Servo (High Voltage)

The Futaba HPS-CD701 is a low-profile surface servo designed for 1/10 drift cars. Its brushless HPS motor, steel gears, and full aluminum case provide a combination of responsive operation and durable construction, with support for UR, SR, S.BUS, and S.BUS2 systems.

At 7.4V, it delivers 0.045 sec/60° operating speed and 236 oz-in (17 kg-cm) dynamic torque. The servo is programmable via an RS-PGC USB programmer and uses a 25T (Futaba/ProTek) output shaft spline.

Features

• Designed for 1/10 scale drift cars
• Supports UR and SR modes
• Compatible with S.BUS and S.BUS2 systems
• Brushless motor
• Full aluminum case
• Steel gears
• Input voltage: 4.8-7.4V

Specifications

• Application: 1/10 Drift
• Operating Speed @ 6.0V: 0.055 sec/60°
• Operating Speed @ 7.4V: 0.045 sec/60°
• Dynamic Torque @ 6.0V: 194.4 oz-in (14 kg-cm)
• Dynamic Torque @ 7.4V: 236 oz-in (17 kg-cm)
• Programmable: Yes (via RS-PGC USB programmer)
• Output Shaft Spline: 25T (Futaba/ProTek)
• Dimensions: 1.59x0.82x1.03in (40.5×21×26.2mm)
• Weight: 1.86oz (53g)

Includes

• (1) HPS-CD701 S.Bus2 Low Profile Surface Brushless Drift Servo
